Felder G 360 - Assembly; Component Overview

17
"
BO
!
BM
BN
BL)
(
#
$ % & /
BQ
BP
PH: HZ: A:
Baujahr / year of construction / ANNEE DE CONSTR.:
KW:
V:
NR.:
TYPE :
XXX-XXX/XX-XX
XXXXXXXX
20xx
KR-Felder-Straße 1, 6060 HALL in Tirol
AUSTRIA, Tel. +43 (0) 5223 58500
info@felder-group.com
www.felder-group.com
350 X.X400
X.X S1
Edgebander
G 330 / G 360 / G 380
!Heavy duty chain feeder
"Edgebanding material
• Coiled edgebanding material
• Strip material
#Premilling unit (G 360 / G 380)
$Glue roller and glue
%Guillotine unit
&Pressure roller unit
/End trimming unit
*Flush and radius trimming unit
)Radius scraping unit (Optional)
BLFlush scraping unit (Optional)
BMBuffing unit (Optional)
BNWorkpiece feeder
BOData plate
BPEMERGENCY STOP button
BQ PLC control unit
5 Assembly
5.1 Overview

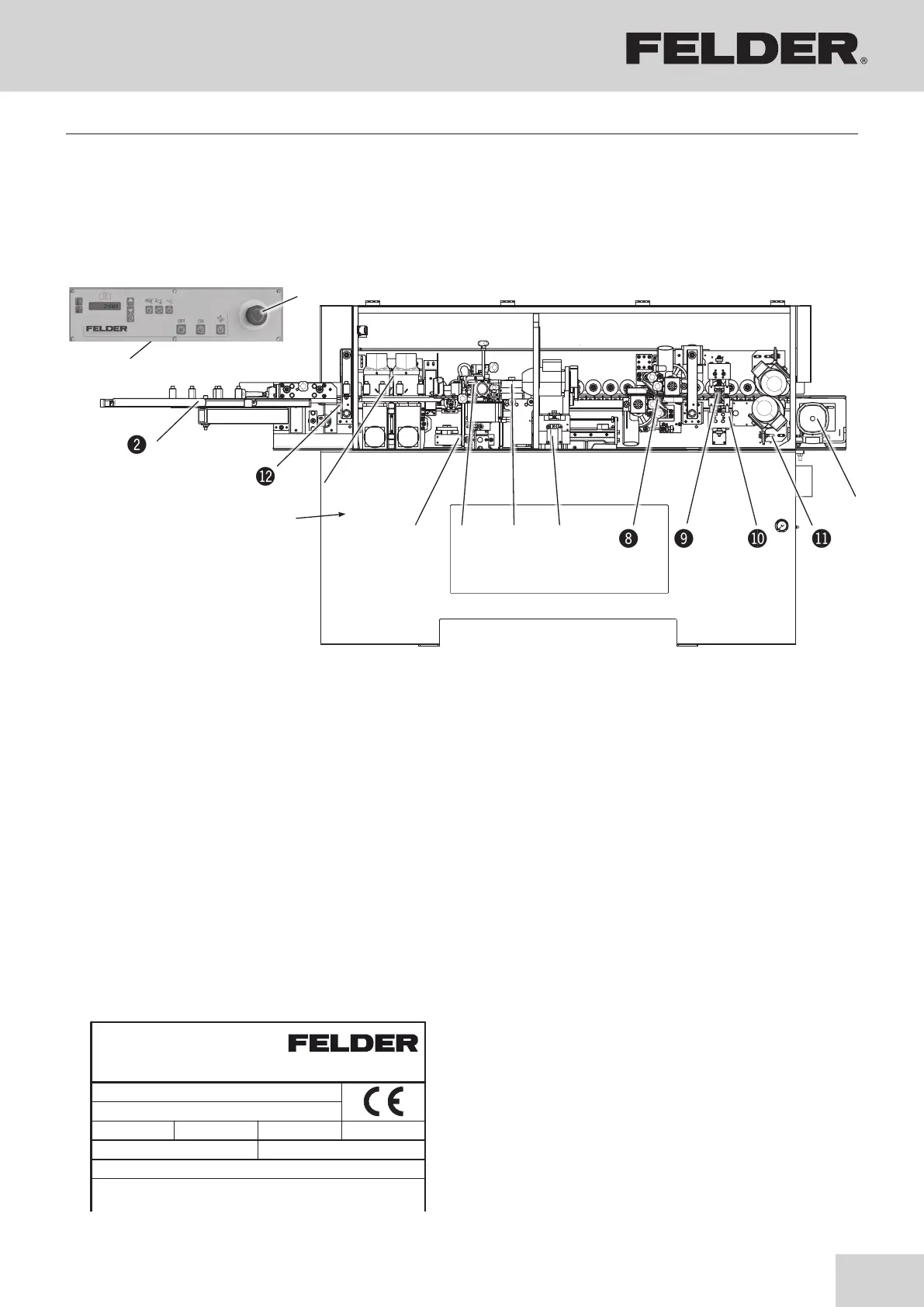

Fig. 5-1: Overview
Assembly
Fig. 5-2: Data plate
5.2 Data plate
The data plate displays the following specifications:
• Manufacturer information
• Model designation
• Machine number
• Voltage
• Phases
• Frequency
• Motor
• Power supply
• Year of construction
• Motor specifications
