Felder G 360 - Side Trimming and Premilling Units

35
!
"
#
"
!
Edgebander
G 330 / G 360 / G 380
Inspecting and adjusting settings
Set the depth of cut of the premilling unit as follows:
1. Loosen the thumb screw 2.
2. Set the depth of material abrasion, displayed on the
number display, with knob 3.
3. Tighten the thumb screw 2.
!Number display
"Thumb screw 2
#Knob 3
The side trimming unit consists of two motor-driven
moulders with a diameter = 60 H49 Z2+2. Both
moulders work together, opposite to each other and have
a maximum depth of cut of 0 to 2 mm.
Set the depth of cut on the infeed track.
!Spindle moulder–Reverse
"Spindle moulder–Synchronous operation

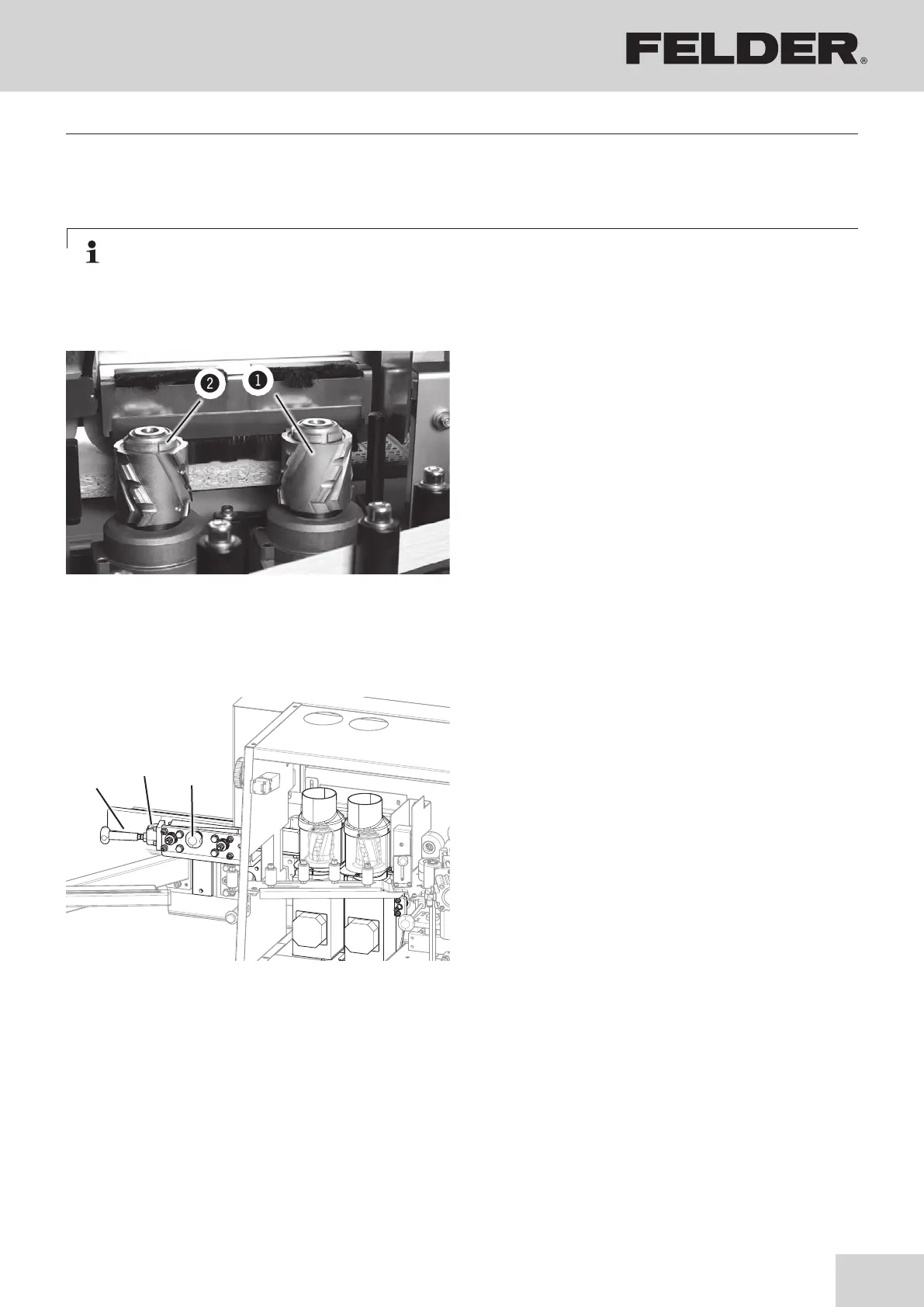

Fig. 8-8.1: Setting the premilling unit
8.6.1 Operation
Fig. 8-8.2: Setting the depth of cut
8.6.2 Setting the premilling unit
Note:
Exchanging Shaper - See chapter entitled: Maintenance/Service
8.6 Side Trimming Unit (Optional)
