FENDT 1290 UD User Manual

1.5 Machine component views
1

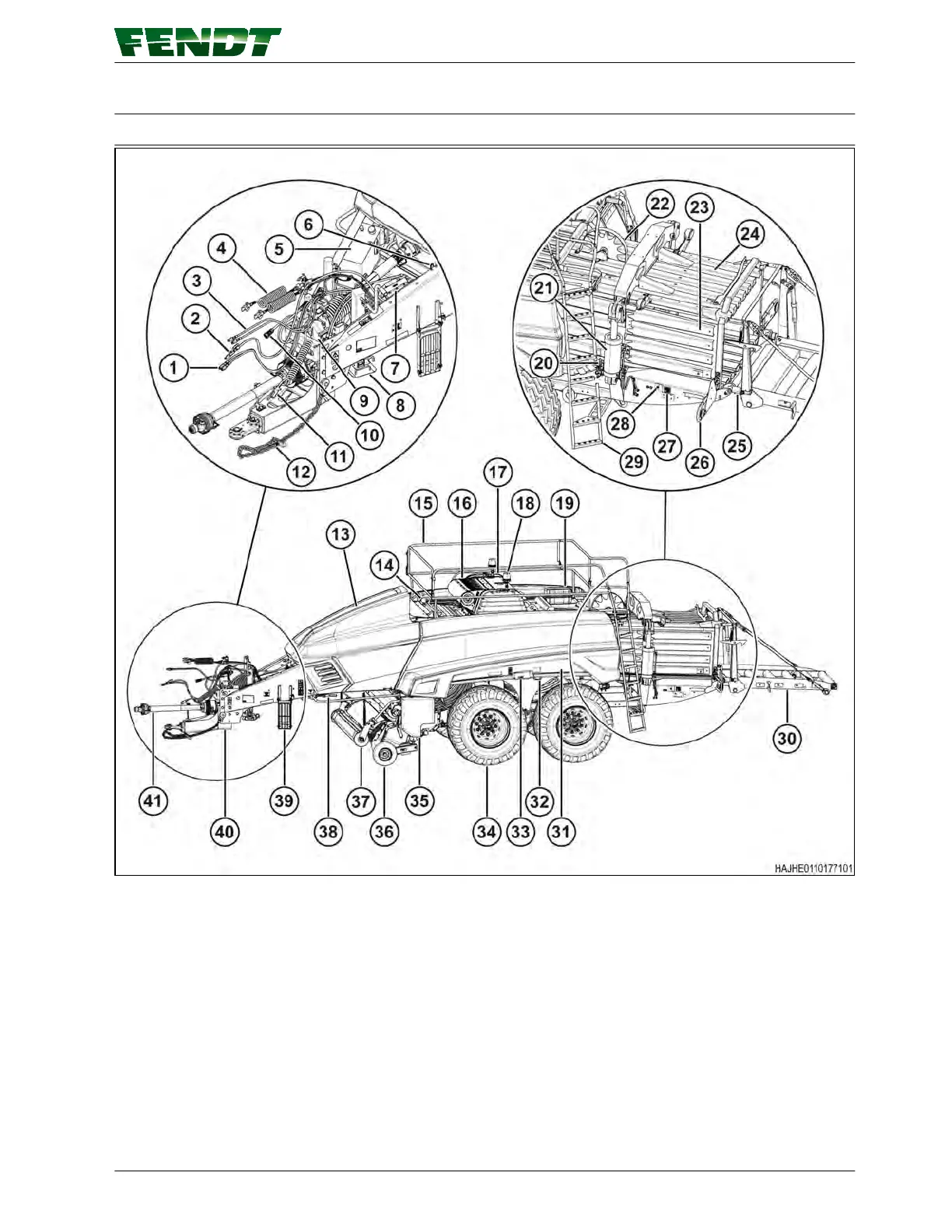

.5.1 Outside view - left side
GUID-BB105AC4-F806-46DC-B768-19157C02720F-high.jpg [High]
Fig. 40
(1) Hydraulic hoses - pickup and packer
(2) Hydraulic hose - steering lock
(3) Hydraulic hoses - hydraulic jack (optional)
(4) Pneumatic hoses - air brakes (optional)
(5) Hydraulic fluid reservoir for onboard hydraulic
system (on right side)
(6) Latch for front shield
(7) Cooling fan for onboard hydraulic system
(8) Jack - manual (optional)
(9) Pedestal gearbox
(10) Electrical harness - ISObus™
(11) Electrical harness - road lamps
(12) Safety chain
(13) Front shield
(14) Knotter flag lamp
(15) Hand rail
(16) Knotter blower cover
(17) Knotter shield
(18) Left beacon lamp
(19) Tool box (on right side)
(20) Selection lever for bale ejector teeth
(21) Left bale density cylinder
(22) Bale length wheel
(23) Left bale density door
(24) Top bale density door
(25) Load cell for bale weight - left side
[V]
GUID-580AF115-2310-4501-A1C1-F615ED6ED226 [V1]
1. General
Large Square Baler 1
-33
79037317B
