1.5.5 Outside view - top
GUID-45708B9B-8DDB-4C9F-A773-C966A710EFBA-high.jpg [High]

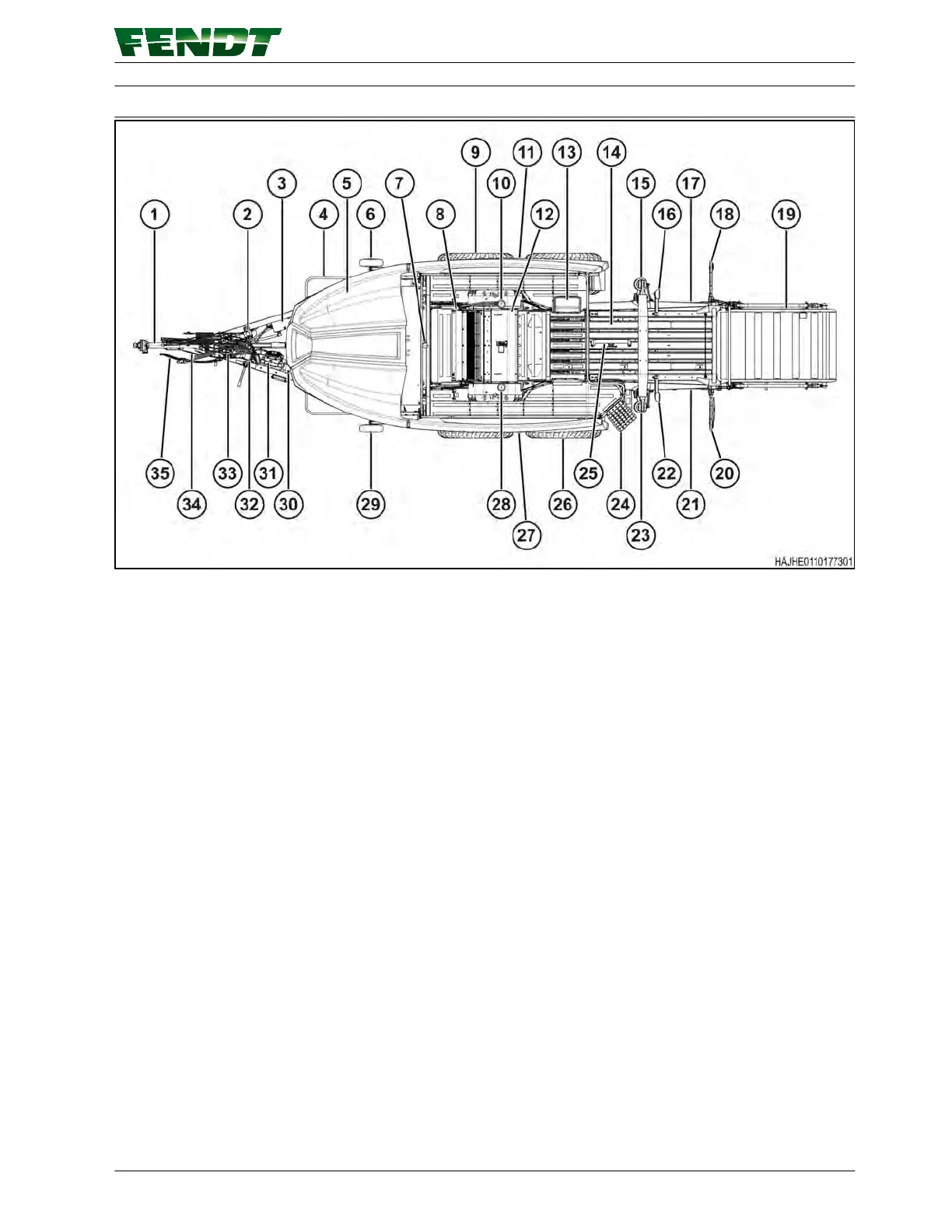

Fig. 44
(1) Implement drivelive
(2) Jack - hydraulic (optional)
(3) Hydraulic fluid reserv
oir for onboard hydraulic
system
(4) Pickup guard rail
(5) Front shield
(6) Right pickup wheel
(7) Knotter flag lamp
(8) Knotter blower cover
(9) Tires, wheels, and axles
(10) Right beacon lamp
(11) Right side shield
(12) Knotter shield
(13) Tool box
(14) Top bale density door
(15) Right bale density cylinder
(16) Right field lamp
(17) Left bale density door
(18) Right tail lamp and turn signal lamp
(19) Roller bale chute
(20) Left tail lamp and turn signal lamp with slow
moving vehicle (SMV) emblem (The SMV
emblem is used on North American
machines only.)
(21) Left bale density door
(22) Left field lamp
(23) Left bale density cylinder
(24) Ladder
(25) Bale length wheel
(26) Steering axle
(27) Left side shield
(28) Left beacon lamp
(29) Left pickup wheel
(30) Latch for front shield
(31) Cooling fan for onboard hydraulic system
(32) Jack - manual (optional)
(33) Pedestal gearbox
(34) Tongue
(35) Safety chain
