(26) Left tail lamp and turn signal lamp with slow
mo
ving vehicle (SMV) emblem (The SMV
emblem is used on North American
machines only.)
(27) Switch panel
• Bale ejection - return
• Bale ejection - eject
• Bale chute retract
• Bale chute extend
• Lamp switch
(28) Lockout switch - knotter needles
(29) Ladder
(30) Roller bale chute
(31) Left side shield
(32) Handle for left side shield
(33) Latch for left side shield
(34) Tires, wheels, and axles
(35) Pickup chain cover - left side
(36) Pickup wheel
(37) Windguard
(38) Flywheel brake lever
(39) Front step
(40) Tongue
(41) Implement drivelive

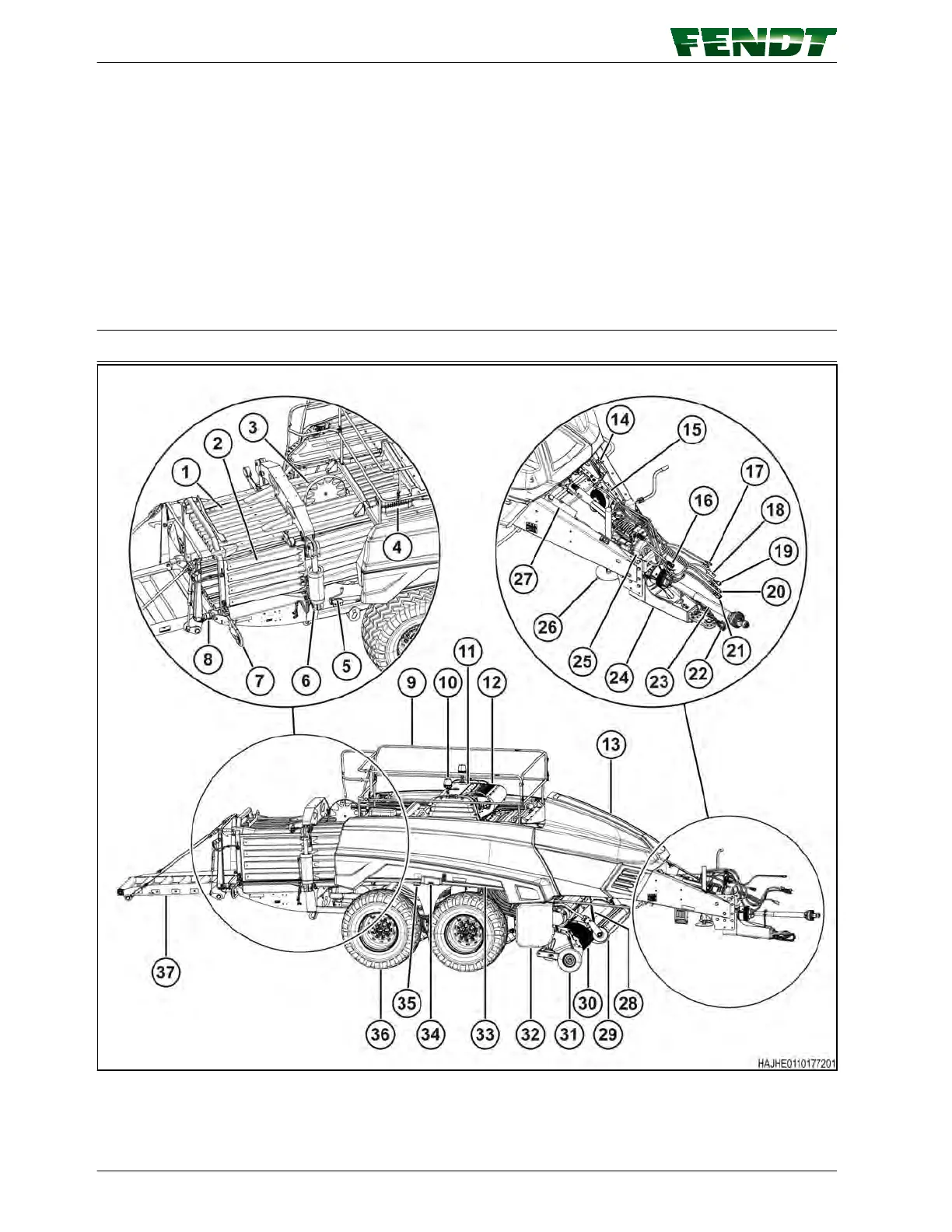

1.5.2 Outside view - right side
GUID-A6B82AEC-B6E7-4AB5-8B8D-3D0C7C06C57D-high.jpg [High]
Fig. 41
(1) Top bale density door
(2) Right bale density door
(3) Bale length wheel
(4) Tool box
