FENDT 1290 UD User Manual

1.5.4 Inner view - right side
GUID-698FF7D4-99A2-4888-B3CD-971A72187EC3-low.svgz []

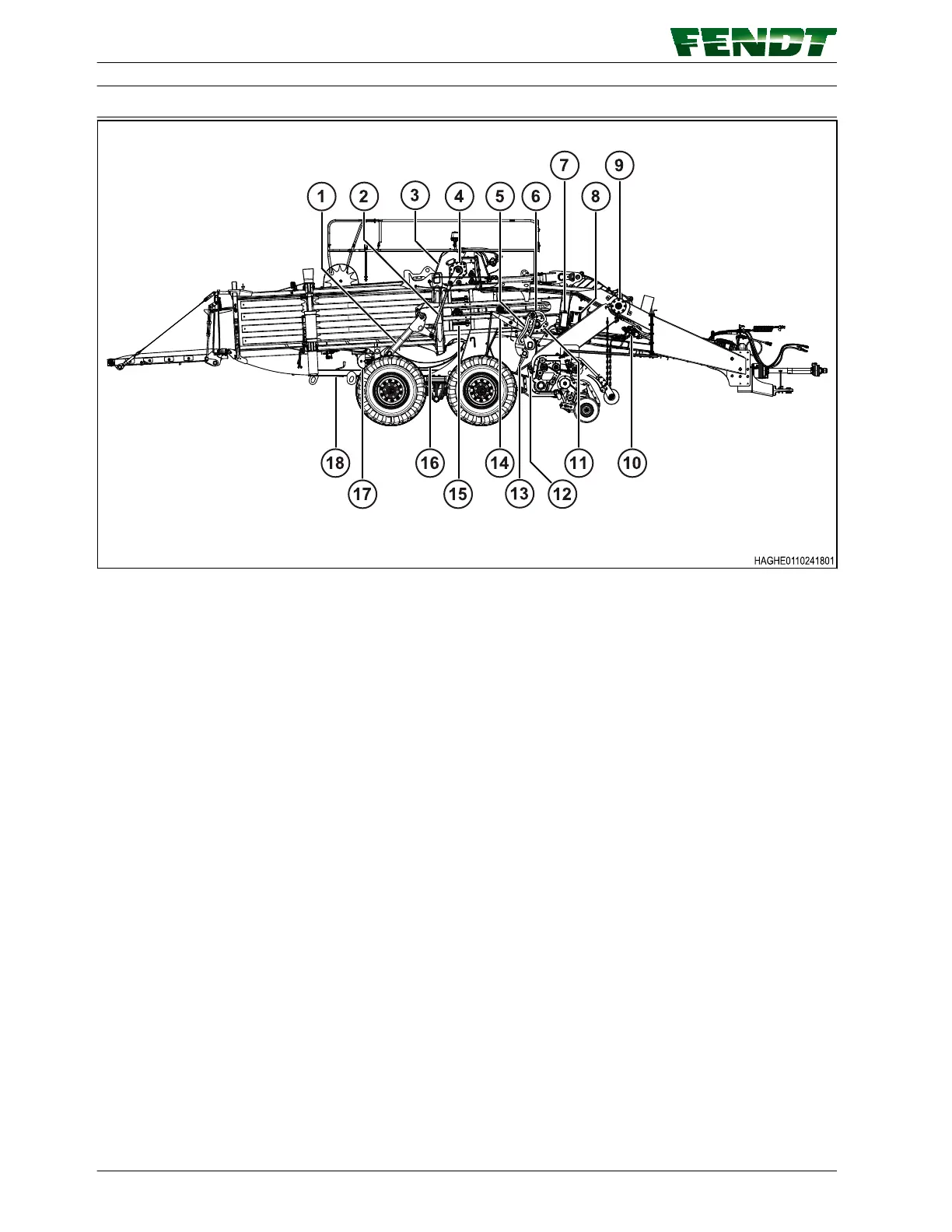

Fig. 43
(1) Needle carriage
(2) Needle actuator rod
(3) Knotter assembly
(4) Needle carriage brake
(5) Stuer cam arm assembly
(6) Right st
uer crank and holding finger cam
(7) Knotter lubrication pump
(8) Controller
(9) Packer slip clutch
(10) Hydraulic valve
(11) Stuer brake
(12) Packer fingers
(13) Stuer fingers
(14) Holding fingers control linkage
(15) Hay dogs
(16) Needles
(17) Air tank
(18) Park brake
GUID-C1329B81-E14F-4572-ABA0-0541797AD123 [V1]
1. General
1-36 Large Square B
aler
79037317B
