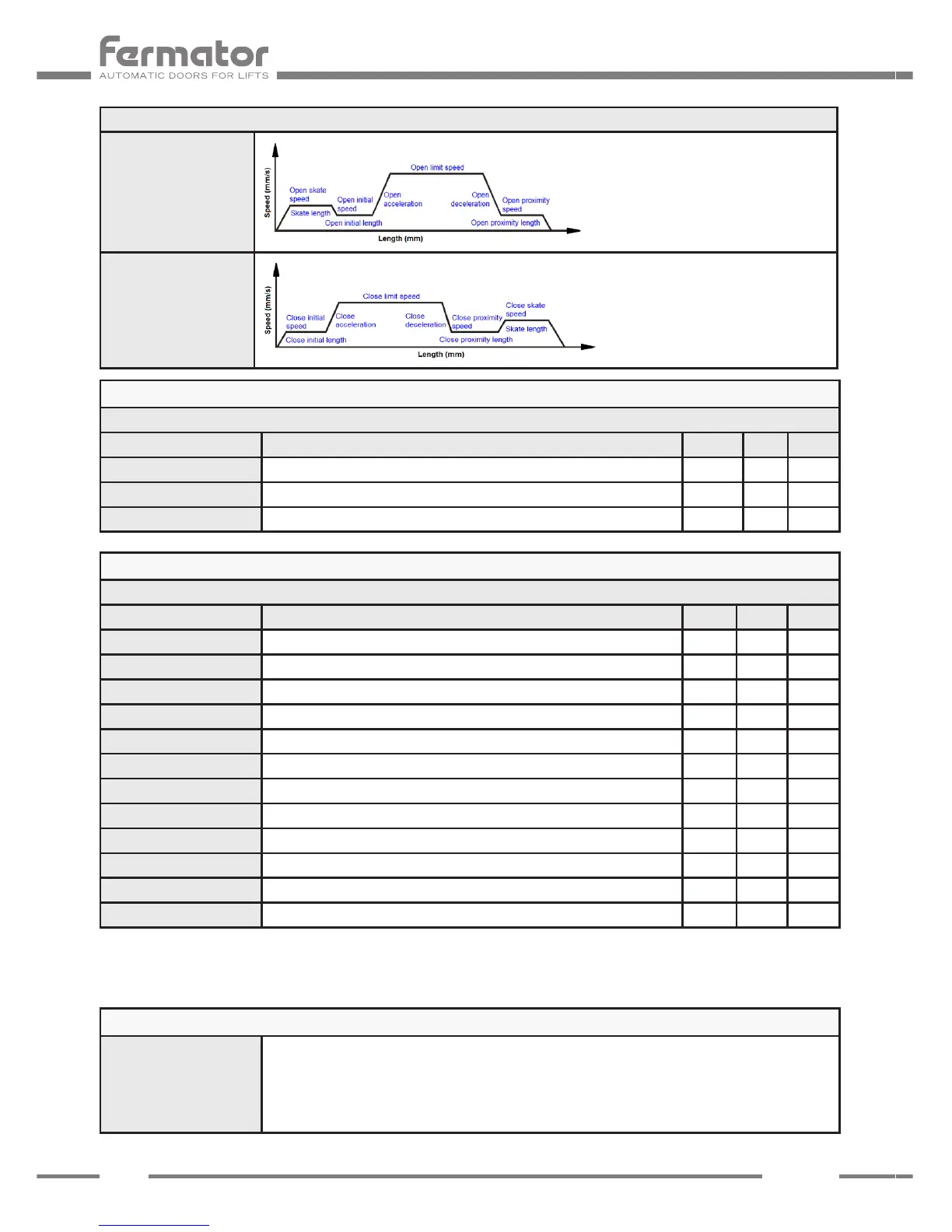

PROGRAMMING MENU
Programming Parameters (Speed Proles)
Open prole
Close prole
Program Parameters
Parameters generals
Parameter Description Units Min Max
Door mass Mass of the door. (kg) 1 500
Clutch mass Mass of the Clutch. (Kg) 0.0 50
Gear ratio Gear ratio when a reduction pulley is used. - 1.00 10.00
Program Calibration
Calibration The Motor Calibration process has to be done to detect the electrical characteristics of the motor
installed. The calibration only has to be done one time. Before doing the motor calibration place the door
in a middle position.
If the motor installed is removed, another calibration has to be done with the new motor.
To perform an optimal calibration of the motor installed the process has to be done without charge. Never
perform calibration with the car door and landing door.
Program Parameters
Parameters speeds
Parameter Description Units Min Max
Open Initial Speed The initial speed at opening. (m/s) 0.025 0.100
Close Initial Speed The initial speed at closing. (m/s) 0.025 0.100
Open Proximity Speed The approximation speed at opening. (m/s) 0.025 0.100
Close Proximity Speed The approximation speed at closing. (m/s) 0.025 0.100
Open Clutch Speed Clutch speed at opening. (m/s) 0.025 0.100
Close Clutch Speed Clutch speed at closing. (m/s) 0.025 0.100
Open Limit Speed Speed limit at opening. (m/s) 0.100 1.000
Close Limit Speed Speed limit at closing. (m/s) 0.100 0.600
Open Acceleration The opening acceleration. (m/s2) 0.050 0.700
Close Acceleration The closing acceleration. (m/s2) 0.050 0.700
Open Deceleration The opening deceleration. (m/s2) 0.050 0.700
Close Deceleration The closing deceleration. (m/s2) 0.050 0.500
