DUOX VEO XS MONITOR 15
4.3 USER MENU: F2 FUNCTION
The F2 function sends an activation command
to be able to activate an auxiliary device.

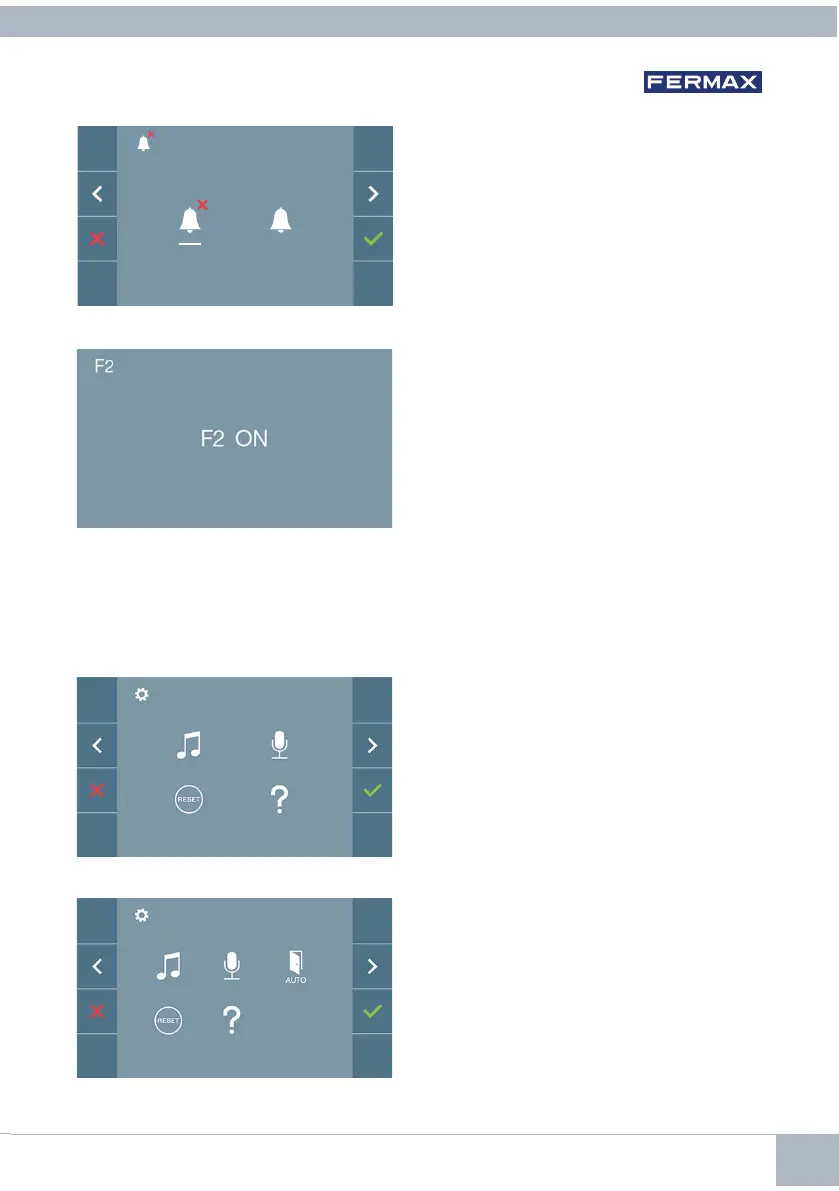

The screen notifi es of the action: F2 ON for
3 seconds.
This function is the default on the main screen
of the user menu.
The F2 command is sent via the bus, including
the monitor’s address to activate the auxiliary
device connected to the bus, along with a duox
relay, for example, (ask your installer).
4.4 USER MENU: USER PARAMETER SETTINGS
Within the user menu, by selecting the "User parameter settings," you access a new screen
corresponding to the different confi guration parameters:
These parameters are as follows:
1. Ringtone Selection
2. Conversation Mode
3. Reset confi guration parameters
4. User help
The monitor’s red LED blinks slowly when the
do not disturb option is activated.
It appears once exited from the programming.
If the doormatic function is activated, this
icon appears.
