FERMOD KIT 5000 - Page 12

Kit5000_GB-A
- 12 -
M7
B
CA
2320 / 2420 SYSTEMS
M6
e
E
D
B
D
E
C
e
d

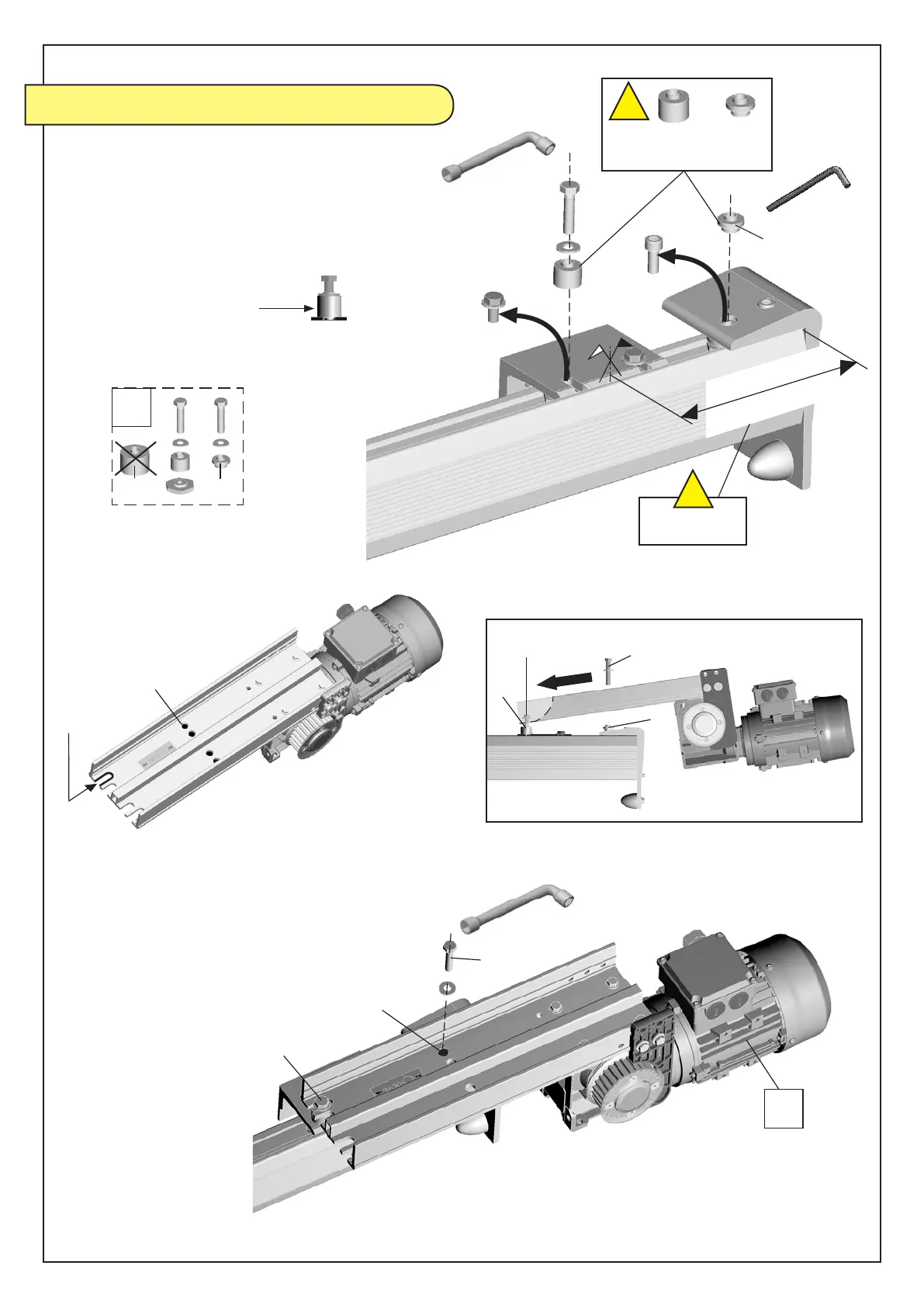

4 - Lift the washer and engage the screw (D)
into slot (d) of motor bracket.
5 - Engage the second screw (E) from small
bag (M7) into hole (e) of motor bracket.
Block the 2 screws.
!
B
C
170 (2320)
175
(2420)
!
13
6
Shoulder
to the top
Imperative
13
1 - Right side of the rail, remove the left screw
of the end bracket and the left screw of the
butt bracket.
2 - Replace the screw of the end bracket with
spacer (B) from small bag (M7).
Fix spacer with a screw,
do not drive the screw.
3 - Replace the screw of the butt bracket with
spacer (C).
B
C
