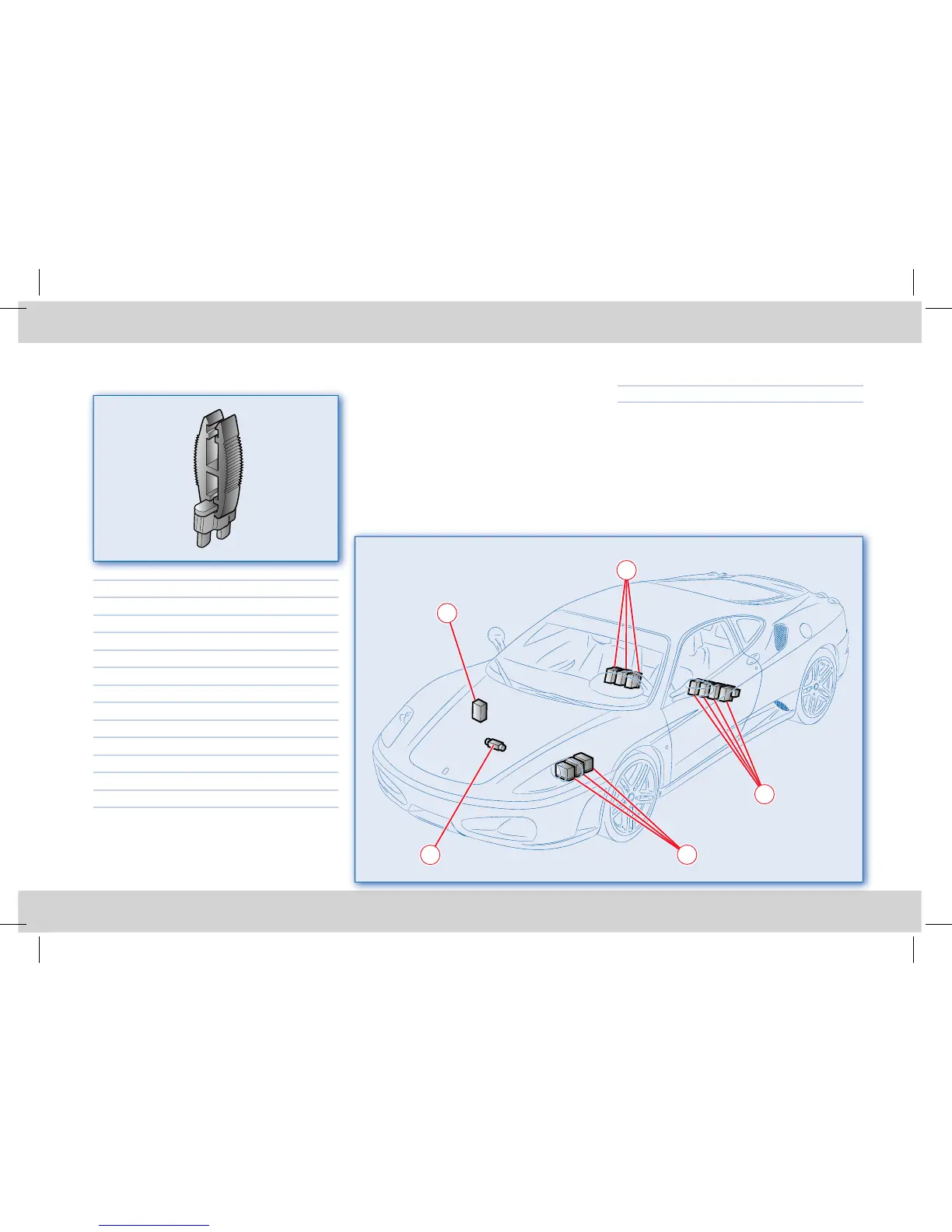

Location of the fuse and relay boxes
A Power fuses.
B Luggage compartment fuses.
C Fuses in passenger compartment, RH
side (behind RH seat).
D Fuses in passenger compartment, LH
side (behind LH seat).
E Megafuse (behind the battery).
Use the pliers found in the toolkit to
remove the fuses.
Fuse Colour Ampere
Yellow ochre A5
Brown A7,5
Red A10
Light blue A15
Yellow A20
White A25
Green A30
Maxi Fuse Colour Ampere
Yellow A20
Green A30
Orange A40
Red A50
Blue A60
Symbol legend
+30 + permanent battery
+15 + key operated
