Ferrari F430 - Page 90

90











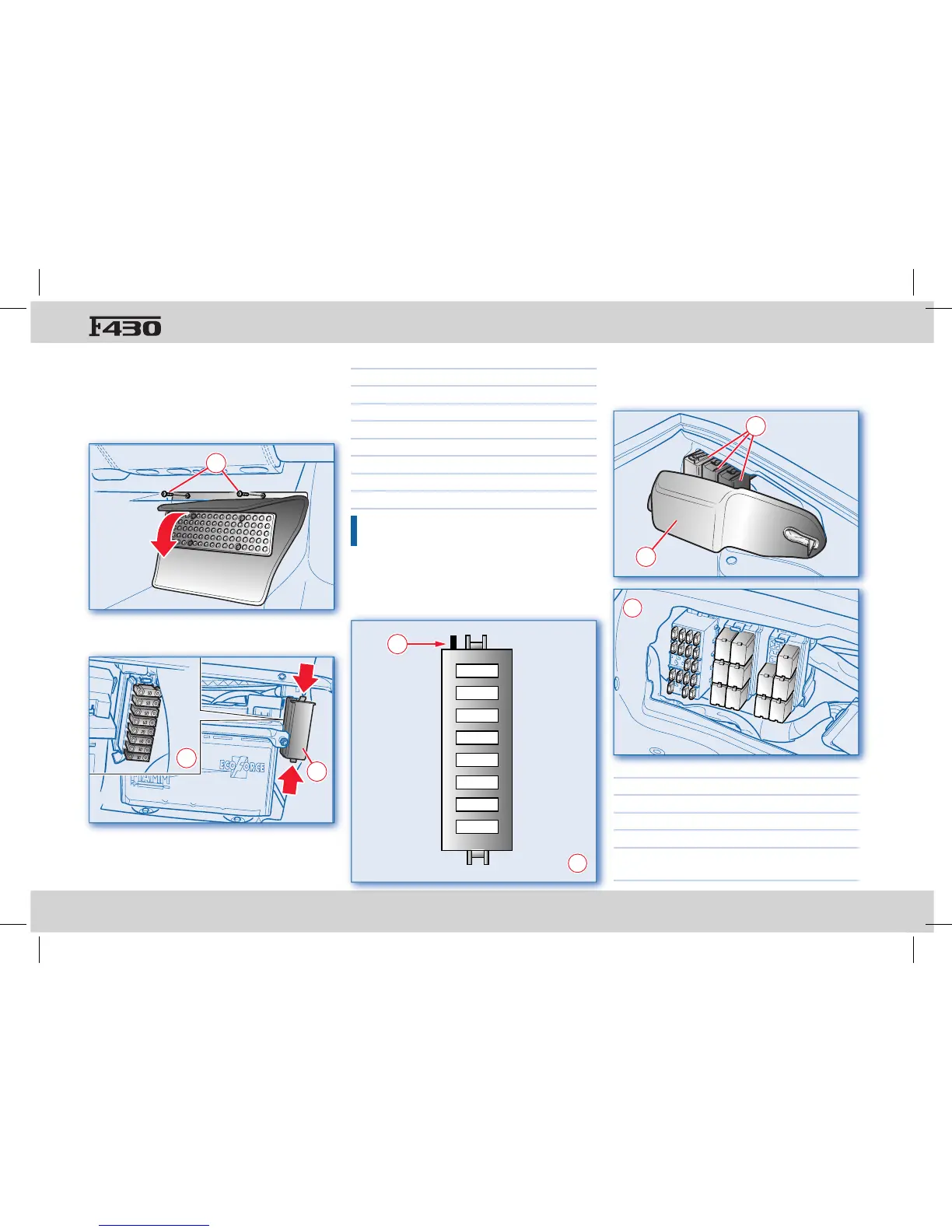

A - Power fuses
Positioned under the passenger footrest,
near the battery. To gain access:
- undo the two retaining screws , slightly
lifting the mat;
�
- lower the battery protection panel
- remove the fuse box  cover.


Fuses:
maxi 1 50A +30 RH Fan
maxi 2 50A +30 LH Fan
maxi 3 50A +30 A.C.
maxi 4 60A +30 front guard
maxi 5 20A +30 alternator sensing
maxi 6 60A +30 ABS/ASR/ESP
maxi 7 30A RH seat
maxi 8 30A LH seat
If a power fuse has blown, contact the Ferrari
Service Network to have the system checked.
B - Luggage compartment fuses and relays
To access these components, remove the
protection panel  and the box covers .


�
Fuses (MINI):
AF1 15A High beams
AF2 25A Low beams
AF3 7,5A RH high beam
AF4 15A RH low beam
AF5 7,5A Number plate lights, switch
lights
