BLUEHELIX TECH RRT 24 C
37EN
cod. 3541P250 - Rev. 01 - 07/2018

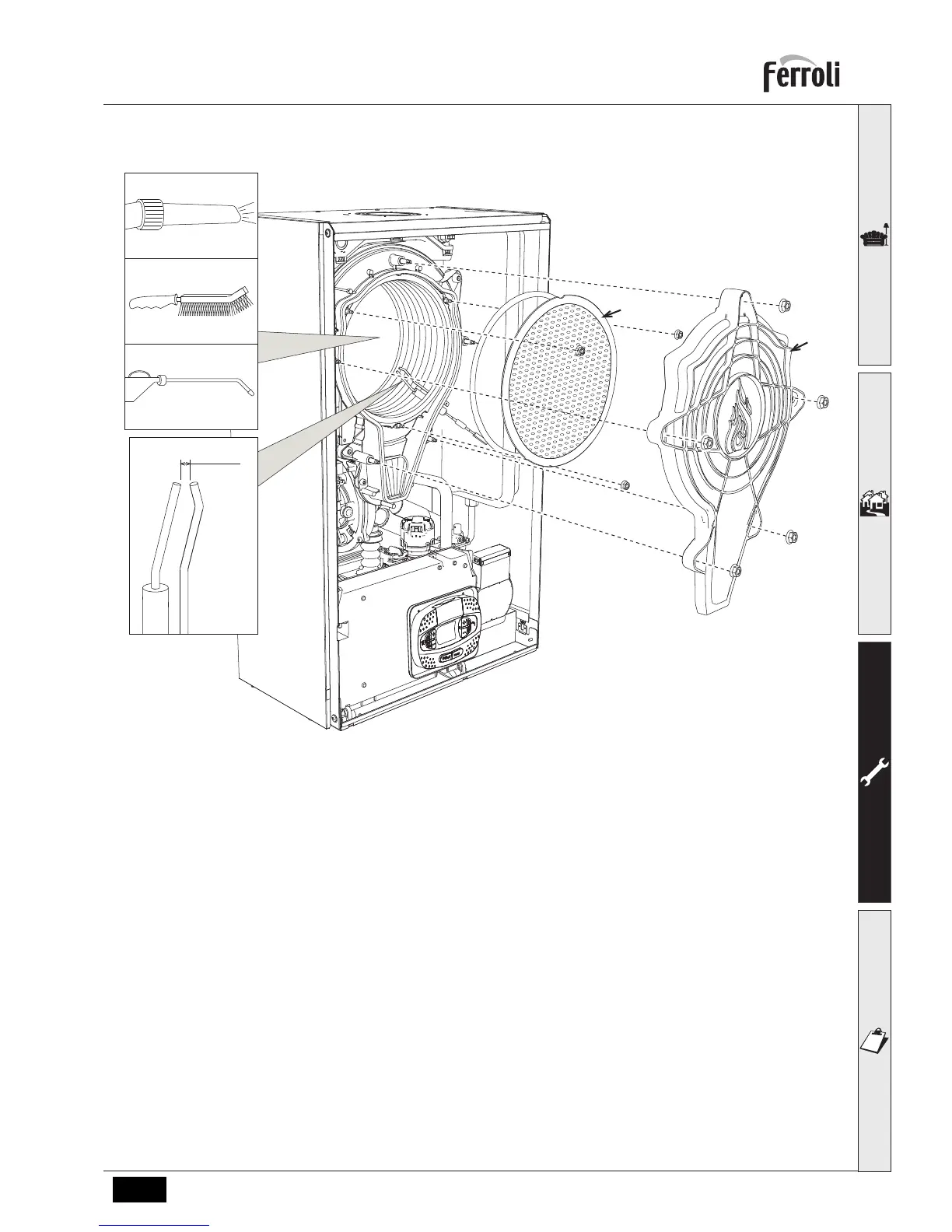

Disassembling the burner and cleaning the exchanger
fig. 43
• Isolate the power supply and close the Gas isolation valve to the boiler.
• Undo the 5 x 10mm flange nuts securing the exchanger cover "1".
• Undo the 3 x 10mm nuts securing the burner & remove (To clean use a soft brush & vacuum).
• Check the correct distance of the electrode (clean if necessary but do not sand).
• To clean the exchanger, it is advisable to remove the electrode (see fig. 46).
• Clean the inside of the exchanger with a soft brush & wash through with clean warm water, then clean out the con-
dense sediment bowl. (See the accessories indicated in fig. 43)
• Replace in reverse order & carry out GSIRU 26/9 tests.
3.5 mm
2
1

Ferroli BLUEHELIX TECH RRT 24C Specifications

General

Type	Tankless (instantaneous)
Fuel type	Liquefied Petroleum Gas (LPG), Natural gas
Boiler system	-
Product color	White
Heater location	Indoor
Placement supported	Vertical
Solar batteries support	No
Efficiency	94 %
Maximum power	24500 W
Minimum power	4900 W
Adjustable thermostat	Yes
Domestic Hot Water (DHW) flow	9.8 l/min

Weight and Dimensions

Depth	250 mm
Width	420 mm
Height	700 mm
Weight	28000 g
