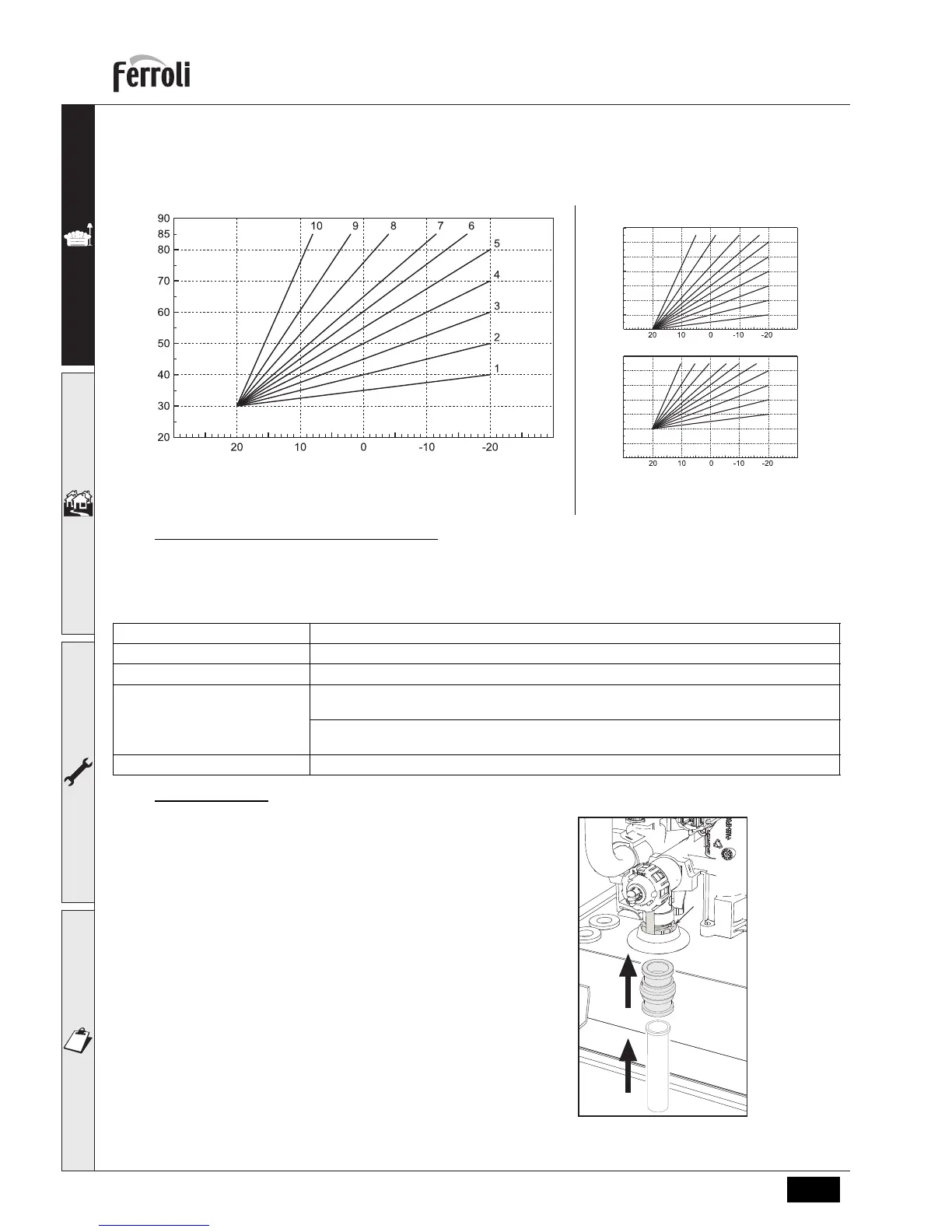

BLUEHELIX TECH RRT 24 C
8 EN
cod. 3541P250 - Rev. 01 - 07/2018
Press the reset button (detail 6 - fig. 1) again for 5 seconds to exit the "OTC" menu.
If the room temperature is lower than the required value, it is advisable to set a higher value curve and vice versa. Pro-
ceed by increasing or decreasing in steps of one and check the result in the room before any further adjustments.
Adjustments from Remote Timer Control
A
If the boiler is connected to the Remote Timer Control (optional) with OpenTherm protocol, the previously de-
scribed adjustments can be made as described table 1.
Table. 1
System draining
The drain tap ring nut is located under the safety valve
inside the boiler.
To drain the boiler turn off the supplied isolation valves
underneath, then turn the ring (ref. 1 - fig. 17) anti-
clockwise to open the tap. Do not use any tools; use
hands only.
fig. 16- Safety valve with built in drain tap
fig. 14- Compensation curves
fig. 15- Example of compensation parallel
curve offset
Heating temperature adjustment Adjustment can be made from the Remote Timer Control menu and the boiler control panel.
DHW temperature adjustment Adjustment can be made from the Remote Timer Control menu and the boiler control panel.
Summer/Winter Switchover Summer mode has priority over a possible Remote Timer Control heating demand.
Eco/Comfort selection
On disabling DHW from the Remote Timer Control menu, the boiler selects Economy mode. In this
condition, the eco/comfort button on the boiler panel is disabled.
By enabling DHW from the Remote Timer Control menu, the boiler selects Comfort mode. In this con-
dition it is possible to select one of the two modes on the boiler panel.
Outside Weather Compensation You can make all the adjustments by using the remote timer control.
Outside Air temperature
Maximum boiler flow temperature
20
30
40
50
60
70
80
90
85
20
30
40
50
60
70
80
90
85
1
2
3
4
5
6
8910
7
1
2
3
4
568910 7
OFFSET = 20
OFFSET = 40
1
