Ferroli BLUEHELIX TECH RRT 24C User Manual

BLUEHELIX TECH RRT 24 C
49EN
cod. 3541P250 - Rev. 01 - 07/2018
4.5 Diagrams
Residual head available for system
BLUEHELIX TECH RRT 24 C

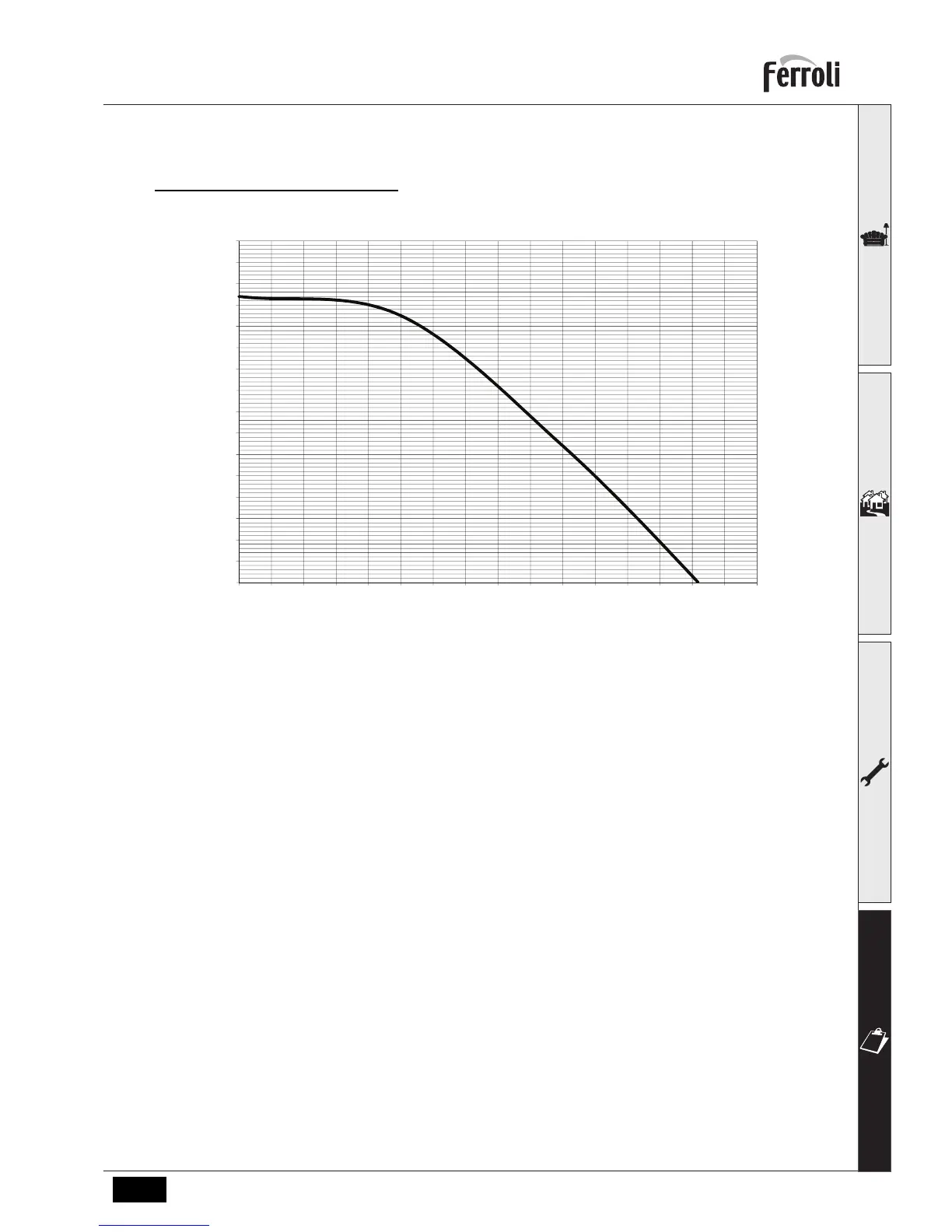

fig. 59- Residual head available for system
4.6 Wiring diagram
16 Fan
32 Heating circulating pump
34 Heating temperature sensor
42 DHW temperature sensor
44 Gas valve
72 Smart thermostat option (not supplied)
81 Ionistion/ignition electrode
95 Diverter valve
114 Low water pressure switch
136 Flowmeter
138 OTC external sensor (option)
139 OpenTherm Smart thermostat (optional)
186 Return sensor
191 Flue temperature sensor
A ON/OFF switch (configurable)
0.0
0.5
1.0
1.5
2.0
2.5
3.0
3.5
4.0
4.5
5.0
5.5
6.0
6.5
7.0
7.5
8.0
0 0.1 0.2 0.3 0.4 0.5 0.6 0.7 0.8 0.9 1 1.1 1.2 1.3 1.4 1.5 1.6
H(mCA)
Q (m3/h)

Ferroli BLUEHELIX TECH RRT 24C Specifications

General

Type	Tankless (instantaneous)
Fuel type	Liquefied Petroleum Gas (LPG), Natural gas
Boiler system	-
Product color	White
Heater location	Indoor
Placement supported	Vertical
Solar batteries support	No
Efficiency	94 %
Maximum power	24500 W
Minimum power	4900 W
Adjustable thermostat	Yes
Domestic Hot Water (DHW) flow	9.8 l/min

Weight and Dimensions

Depth	250 mm
Width	420 mm
Height	700 mm
Weight	28000 g
