INSTALLATION GUIDE
4
05

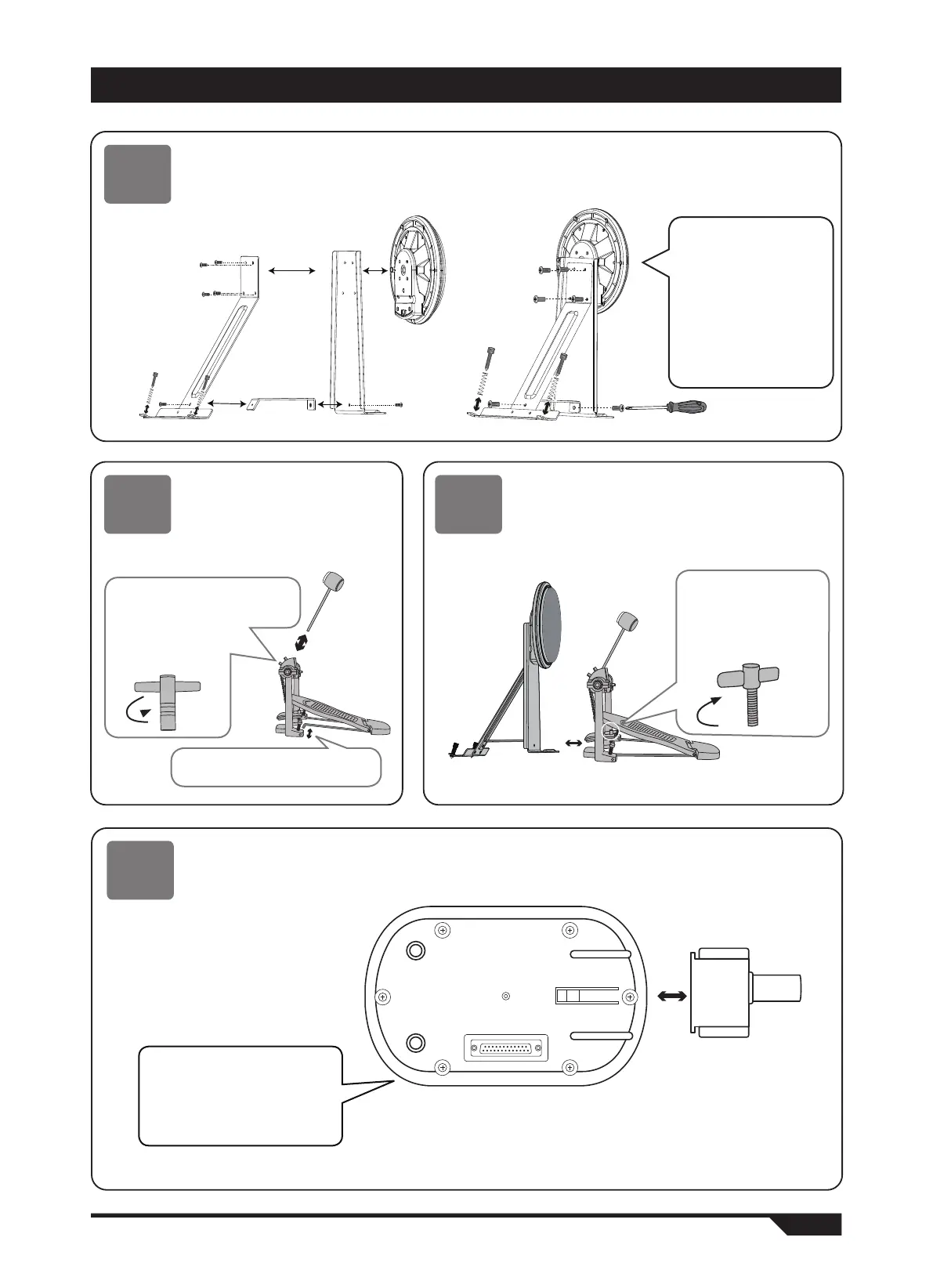

Install the module bracket
● please insert it in place during installation.
02
Install the kick drum
● when installing, please tighten the screws and be careful to pinch your fingers.
Use a screwdriver to lock the
kit drum, fastener, and
support with small screws as
shown in the figure. Then
insert 2 springs into 2
anti-slip screws respectively
and lock them into the
bottom of the support piece
until they stand against the
ground.
Align the mainframe module
bracket with the mainframe module
track and insert it. After inserting it
to the bottom, you will hear the
snap pieces pop up.
Insert the hammer rod into the
round hole as shown in the figure,
rotate the wool hammer to align it
with the drum surface,
and then tighten it with
the drum key.
03
Install the
hammer bar
● the pole should be inserted in lace
and the screws should be tightened
to avoid loosening.
04
Fix the kick drum and kick
drum pedal
● the bottom drum and the step hammer should be fixed
and tightened to avoid falling off.
Insert the protruding edge
of the low drum into the
hammer fixing clip as
shown in the figure, and
tighten the screws.
Insert the fixed iron bar into the hole
as shown in the figure.
