22 Festo P.BE-K-CMMP-AS-C20 1010NH English
Mounting

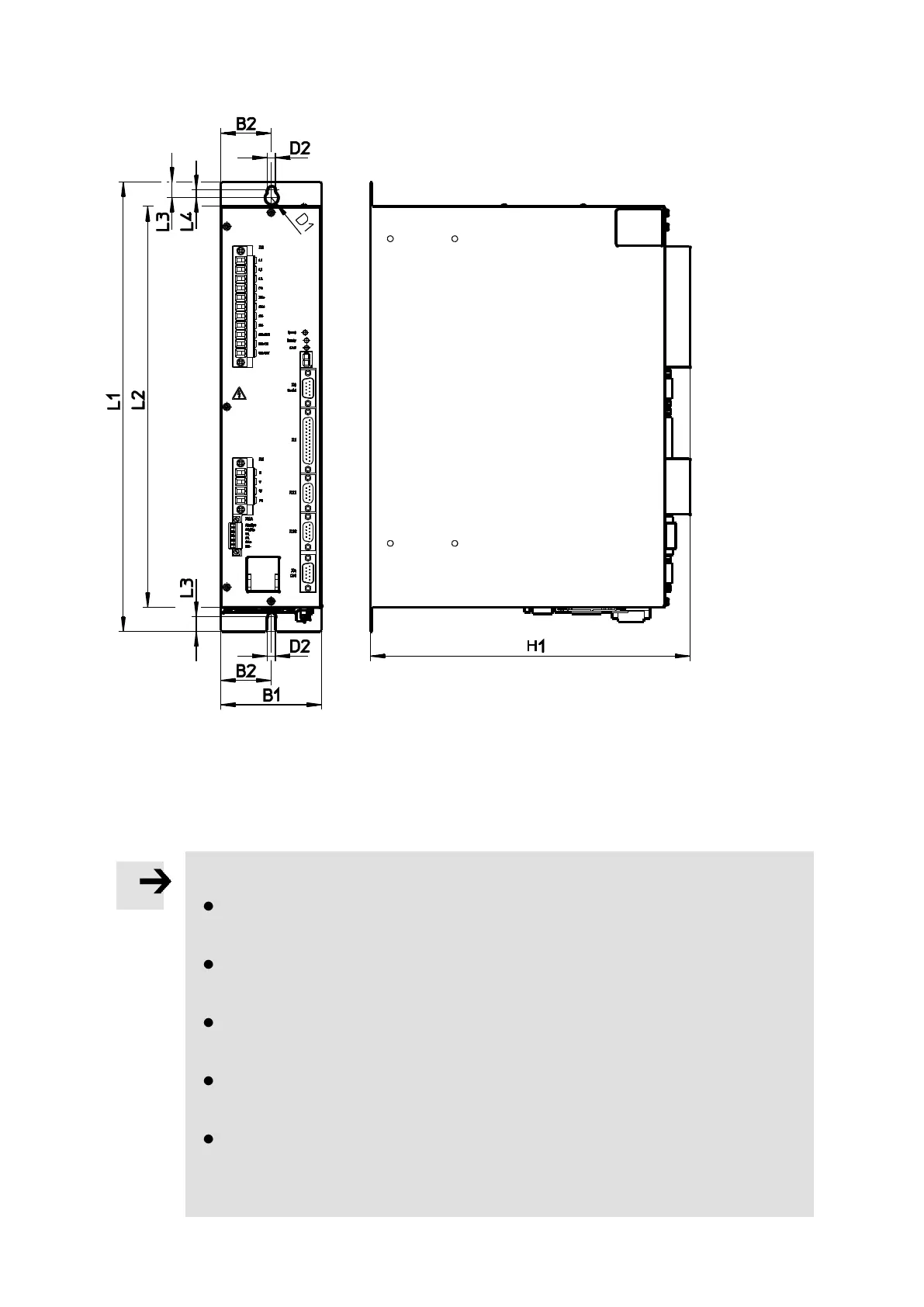

L1 = 369 mm L2 = 329 mm L3 = 12,5 mm L4 = 6 mm
B1 = 83 mm B2 = 41,5 mm D1 = 11 mm D2 = 7 mm
H1 = 263 mm
Note
Using the CMMP-AS motor controller only as an in-
stalled device for control cabinet assembly.
With the mounting plate, mount the CMMP-AS to the
control cabinet plate.
Vertical mounting position with the slots EXT1 and
EXT2 upward
Maintain a gap of 100 mm both above and below the
motor controller for fitting.
If the CMMP-AS is subjected to high temperatures, it
must be fastened with a mounting space (distance be-
tween holes) of 95 mm.
