4 On-site diagnostics

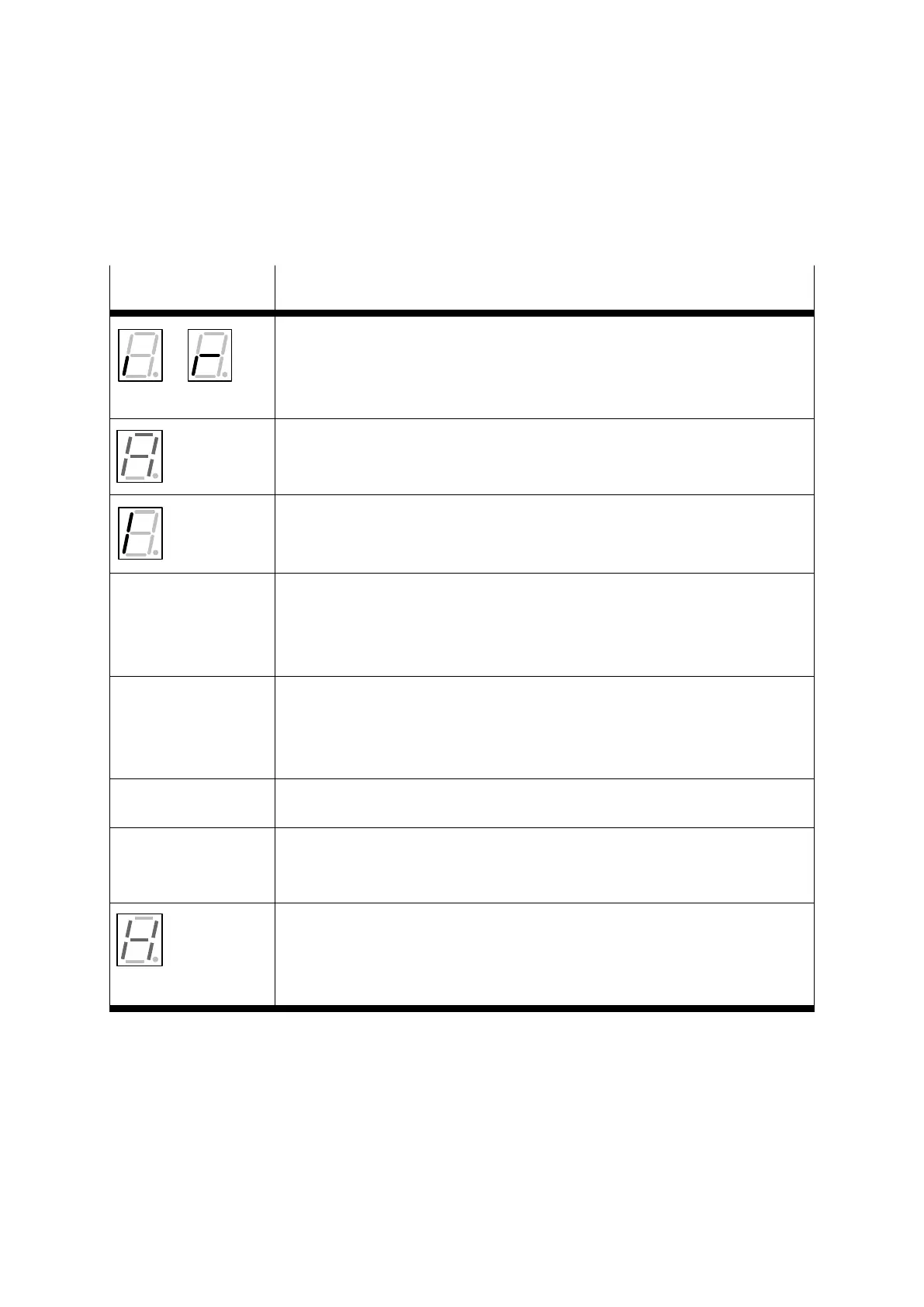

The meaning of the symbols in the displays is explained in
the following table.
Display
Significance
"Speed adjustment" operating mode The external
segments are displayed rotating. With active con-
troller enable the centre bar is also active.
The CMMP-AS motor controller still needs to be
parametrised, display "A".
"Speed-regulated operation" operating mode,
display "T".
P.xx
"Positioning" operating mode The numerals xxx
are displayed one after the other and stand for the
position record numbers.
PH.x
"Reference travel" operating mode.
The numeral x stands for the respective phase of
homing.
E.xxy
Error message with index "xx" and sub-index "y".
-xxy-
Warning message with index "xx" and sub-index
"y"
The "Safe standstill" option is active for devices in
the CMMP-AS family (seven-segment dis-
play = "H", flashing at 2 Hz).
