Circuitry examples of CP-E16-M12x2-...
(PNP inputs)
Pin assignment
Circuitry examples
1
2
3
4
Pin 5 only with type CP-E16-M12x2-5POL: Earth connection
2-way distributor (T-piece)
Sensor 2 (Ex+1)
Sensor 1 (Ex)
E = Input

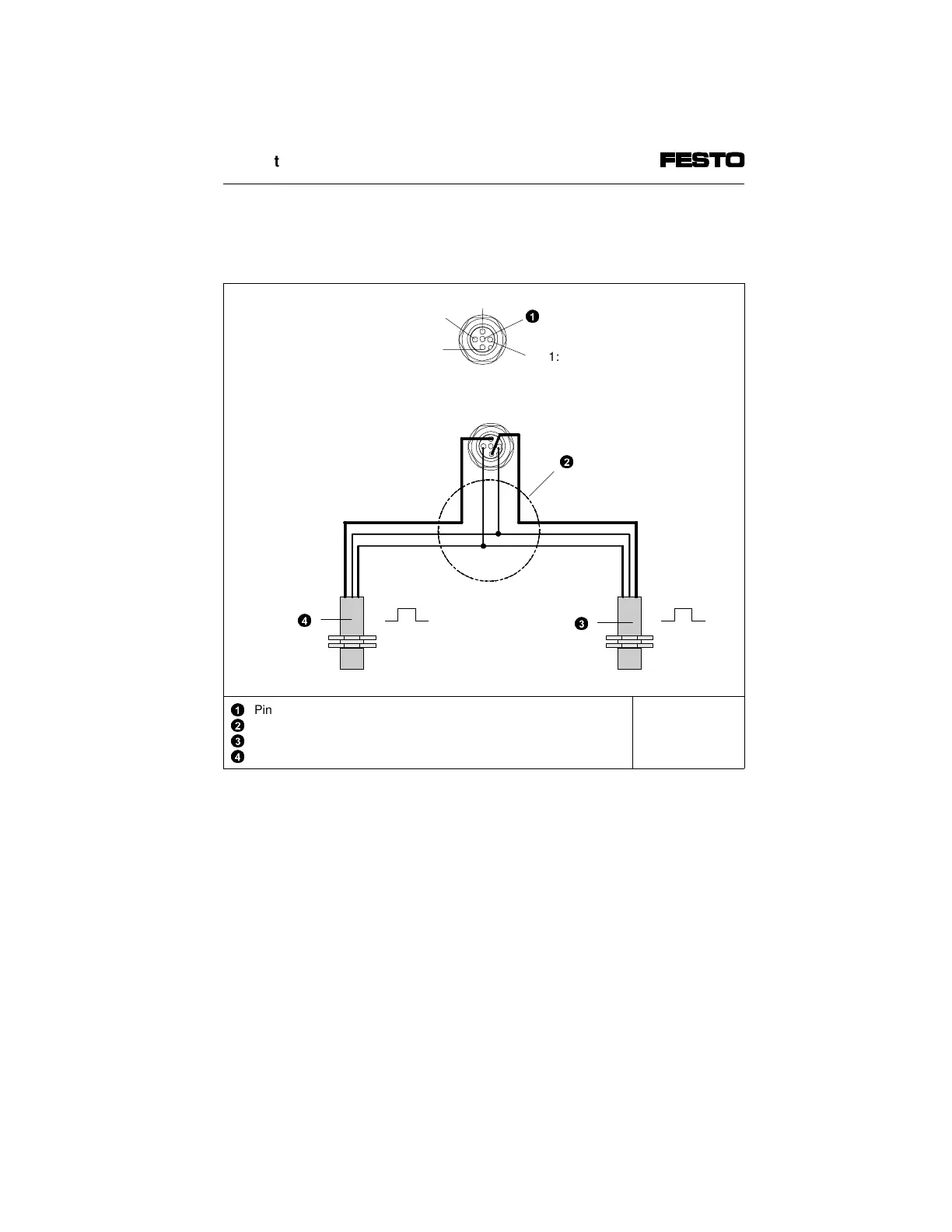

Fig. 1/11: Circuitry examples of input module CP-E16-M12x2-...
3
4
2
Pin 1: 24 V
Pin 4: Ex
Pin 3: 0 V
Pin 2: Ex+1
1
1. Input module type CP-E16...-M...-...
