2.2 Fitting
The output module is intended for fitting onto a wall or
a hat rail. It requires a fitting surface of approximately
173 mm x 78 mm.

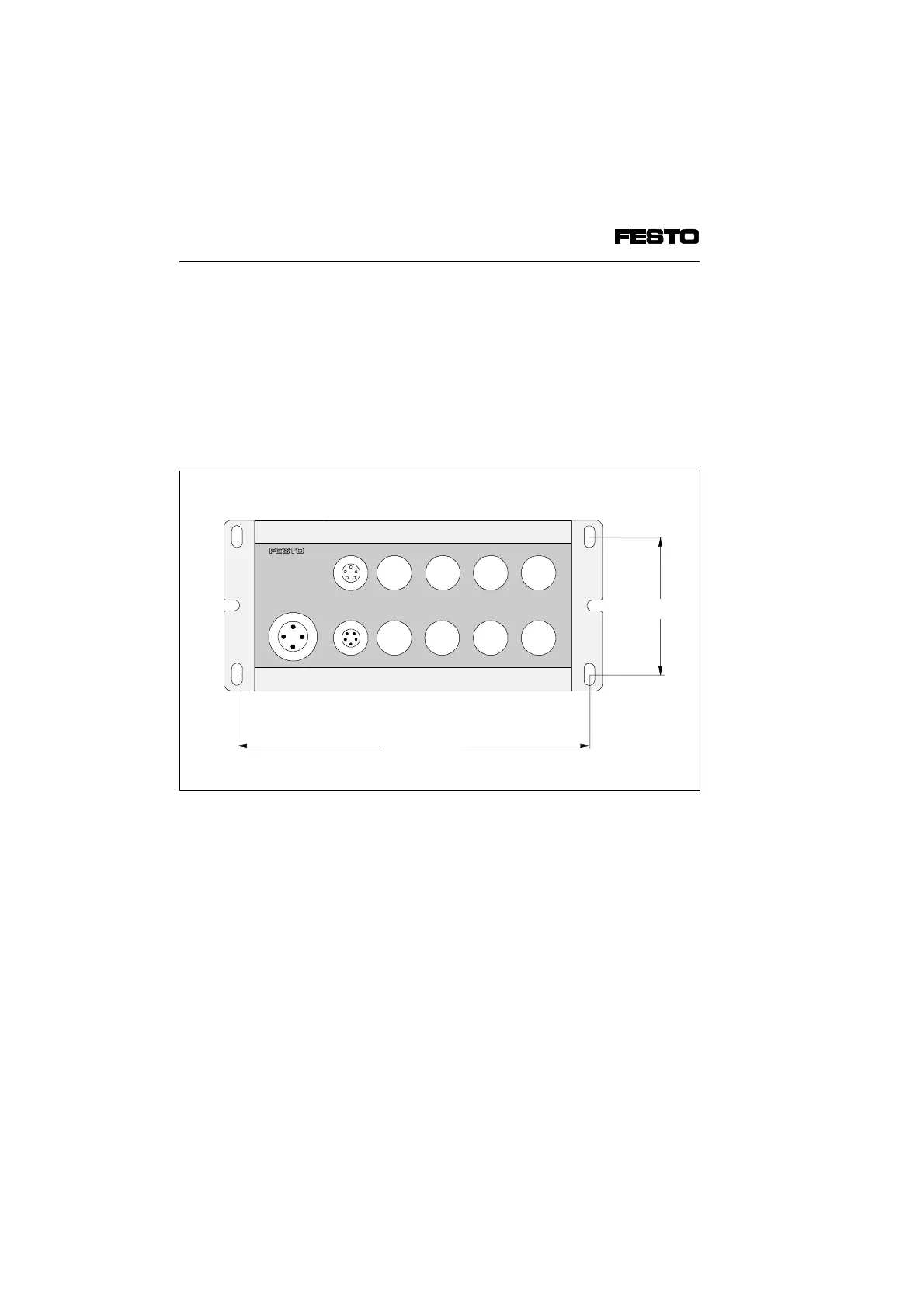

The diagram below shows the dimensions for the four
threaded holes for the M4 screws.
Fitting
on a wall
Fig. 2/2: Fitting dimensions for output module CP-A08...-M12-...
Fitting onto a hat rail is undertaken in exactly the same
way as with input modules CP-E16...-M... (see section
1.2).
Fitting
on a hat
rail
63 mm
163.9 mm
2. Output module type CP-A08...-M12-...
