2.1 Overview
Output module type CP-A08...-M12-... provides 8
universally usuable digital outputs for controlling low-
current consuming devices (bulbs, further valves etc).

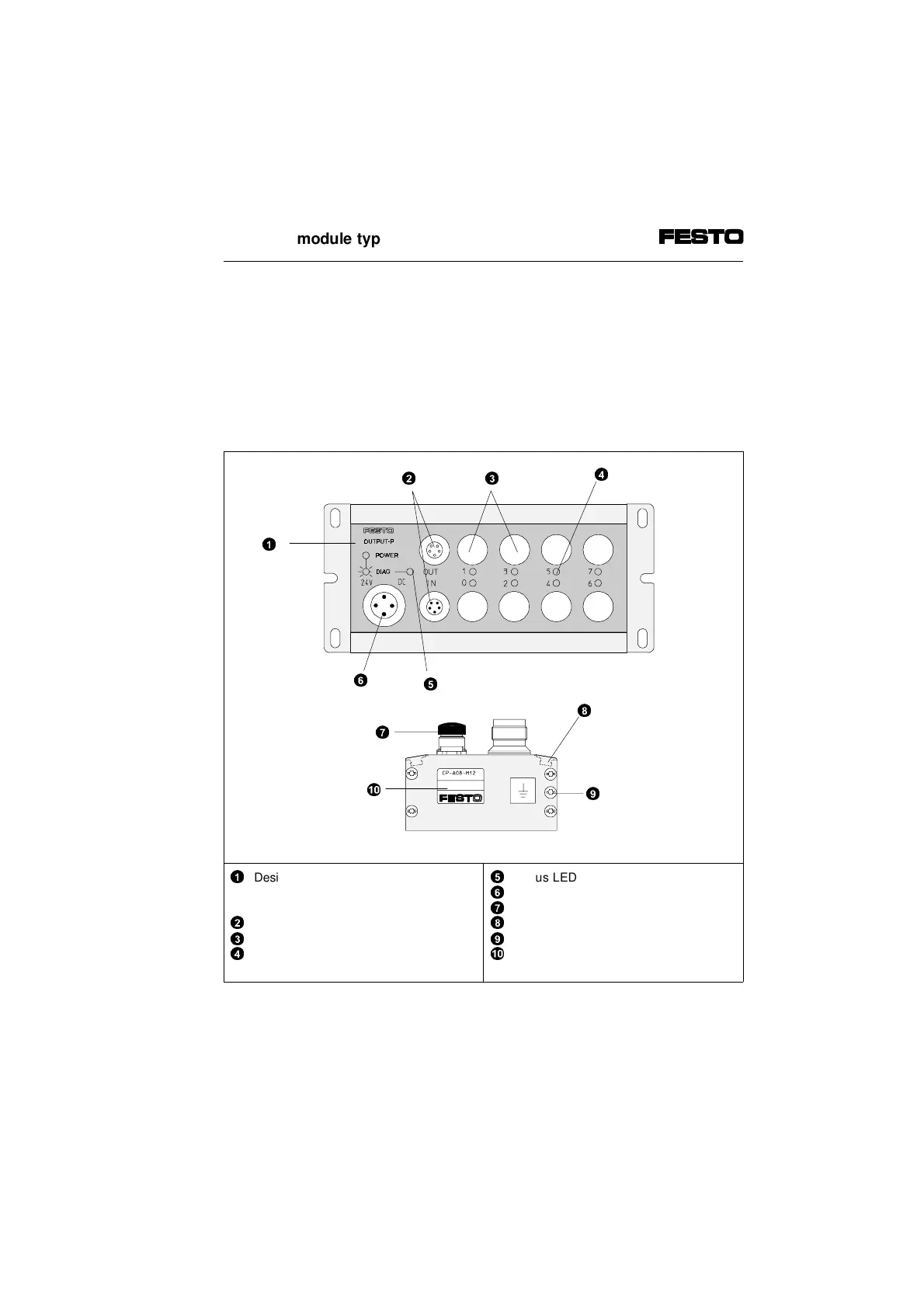

The following diagram shows the display and connect-
ing elements on the output module.
1
2
3
4
Designation for output type
- OUTPUT-P for PNP outputs
- OUTPUT-N for NPN outputs
CP connection
Connections for actuators
Yellow LED for status display
(one LED per output)
5
6
7
8
9
0
Status LED (green)
Load voltage connection
Protective cap
Recess for inscription signs (IBS 6x10)
Earth connection
Type plate
Fig. 2/1: Display and connecting elements
3
4
5
6
7
8
9
0
1
2
2. Output module type CP-A08...-M12-...
CP-A08...-M12 9901b 2-3
