By means of internal connections, two outputs can be
connected to each of the output sockets 0, 2, 4 and 6
on the CP output module type CP-A08-M12-5POL.
1
2
Pin 5: Earth connection
Internal connection in the module
A = Output
n.c. = not connected

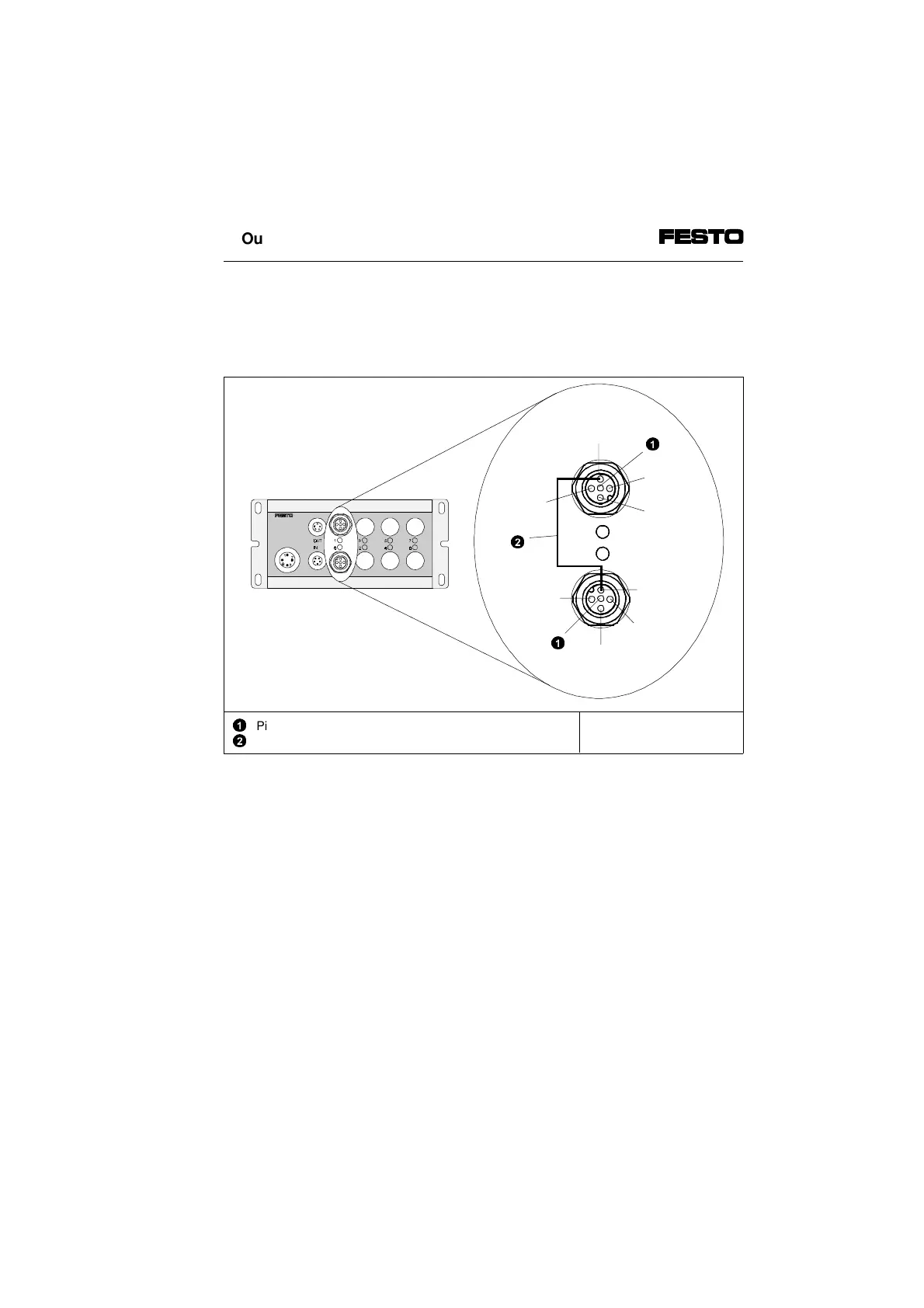

Fig. 2/4: Pin assignment of output module CP-A08-M12-5POL
Ax+1
Pin 3: 0V
Pin 4: Ax
Pin 4: Ax+1
Pin 3: 0V
Ax
Pin 1: n.c.
Pin 1: n.c.
Pin 2: Ax+1
Pin 2: n.c.
1
2
1
2. Output module type CP-A08...-M12-...
CP-A08...-M12 9901b 2-7
