If there is a short circuit/overload, the output module will
switch off all 8 outputs automatically and communicate
the error to the node. When the short circuit has been
eliminated, you can delete this error as follows:
Short circuit/
overload
•• Reset all 8 outputs (e.g. by means of user program)
If there is a fault on the CP module during operation,
you can replace the module by another of the same
type during operation.
Replacing
the CP
module
PLEASE NOTE
Observe here the instructions in the manual for the
higher-order system (e.g. CP system, CP field bus
node, SPC200).

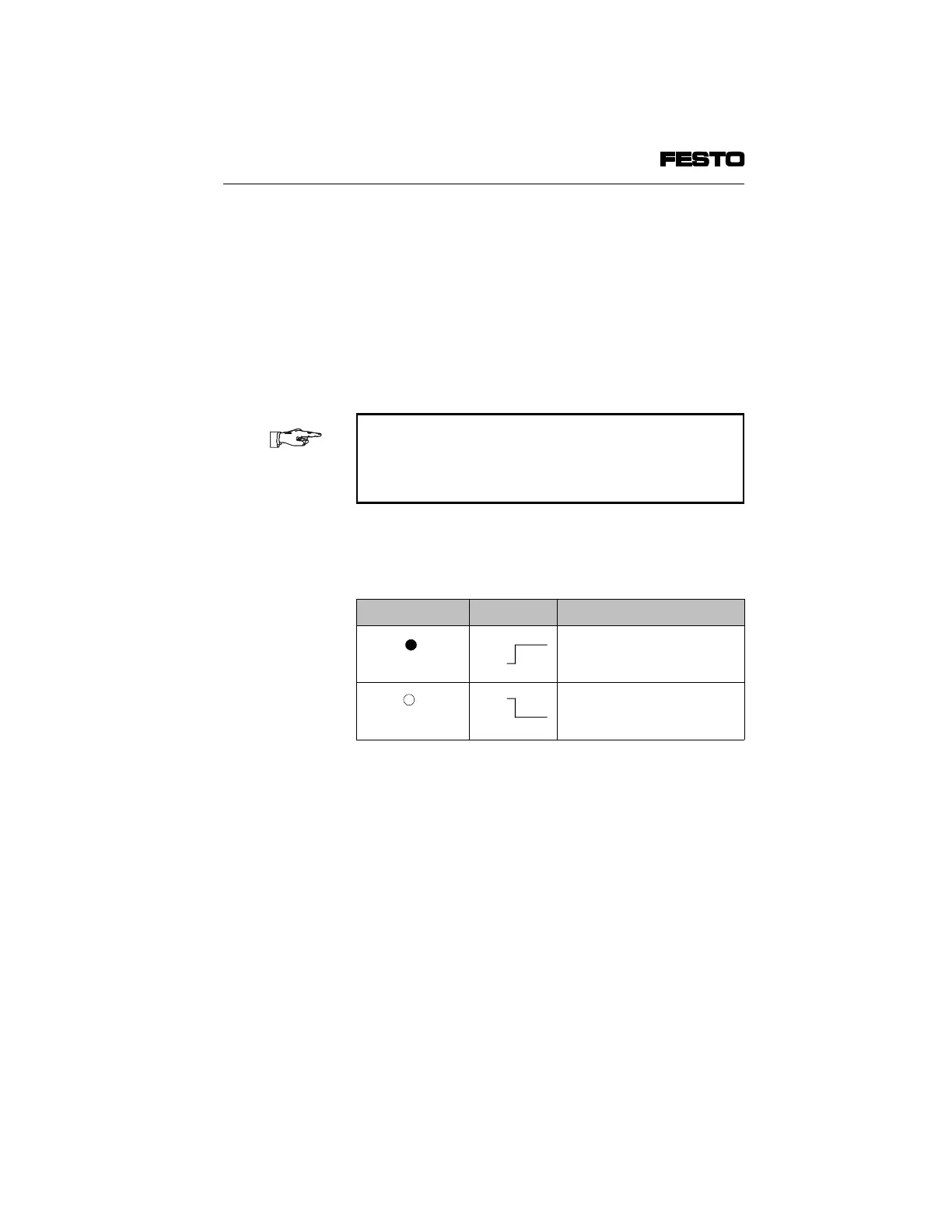

There are two yellow LEDs next to the connections for
the actuators. These indicate the status of the signal at
the relevant output. The meanings are:
Status
display
Status LED Sequence Status
LED lights up
Output supplies 1-signal
LED is out
Output supplies 0-signal
ON
OFF
ON
OFF
2. Output module type CP-A08...-M12-...
CP-A08...-M12 9901b 2-19
