5.6.1 Electrical connection SBS in the Profinet network
The Vision Sensor SBS is connected via a Ethernet TCP/IP connection and a Profinet switch to the
network, and so to the Profinet environment.

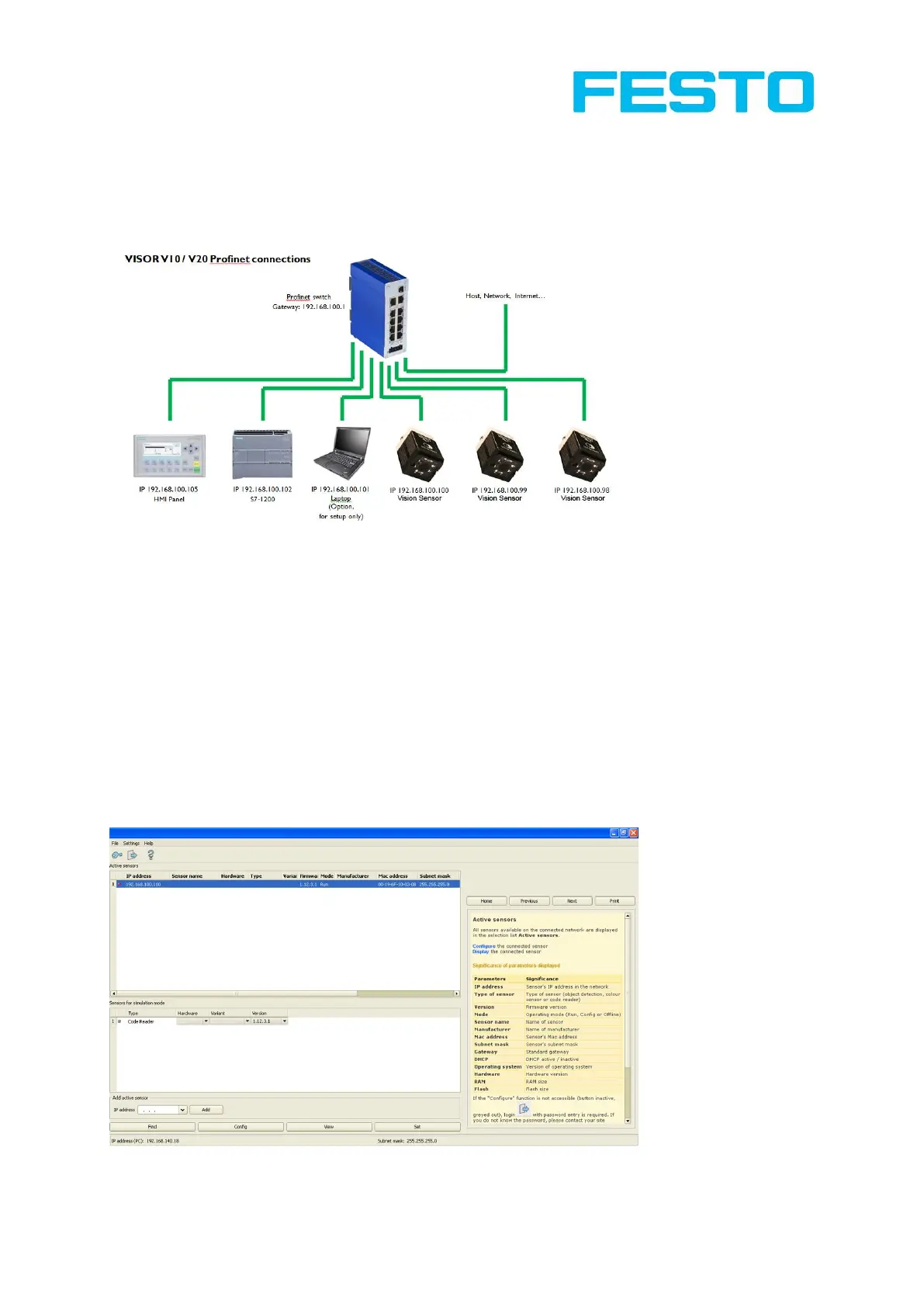

Fig. 270: Connection of SBS via Profinet switch
5.6.2 Configuration of SBS via Festo Vision Sensor Configuration
Studio for the use with PROFINET
In this example the configuration of SBS R2B CR Advanced is described. For all other types the
configuration works analogue.
5.6.2.1 Settings in Vision Sensor Device Manager
Fig. 271: SBS is displayed and selected in Vision Sensor Device Manager
