Vision Sensor SBSI/SBSC-EN, 8062650 - 1607b - 13/09/2016 Page 293
Vision Sensor Manual

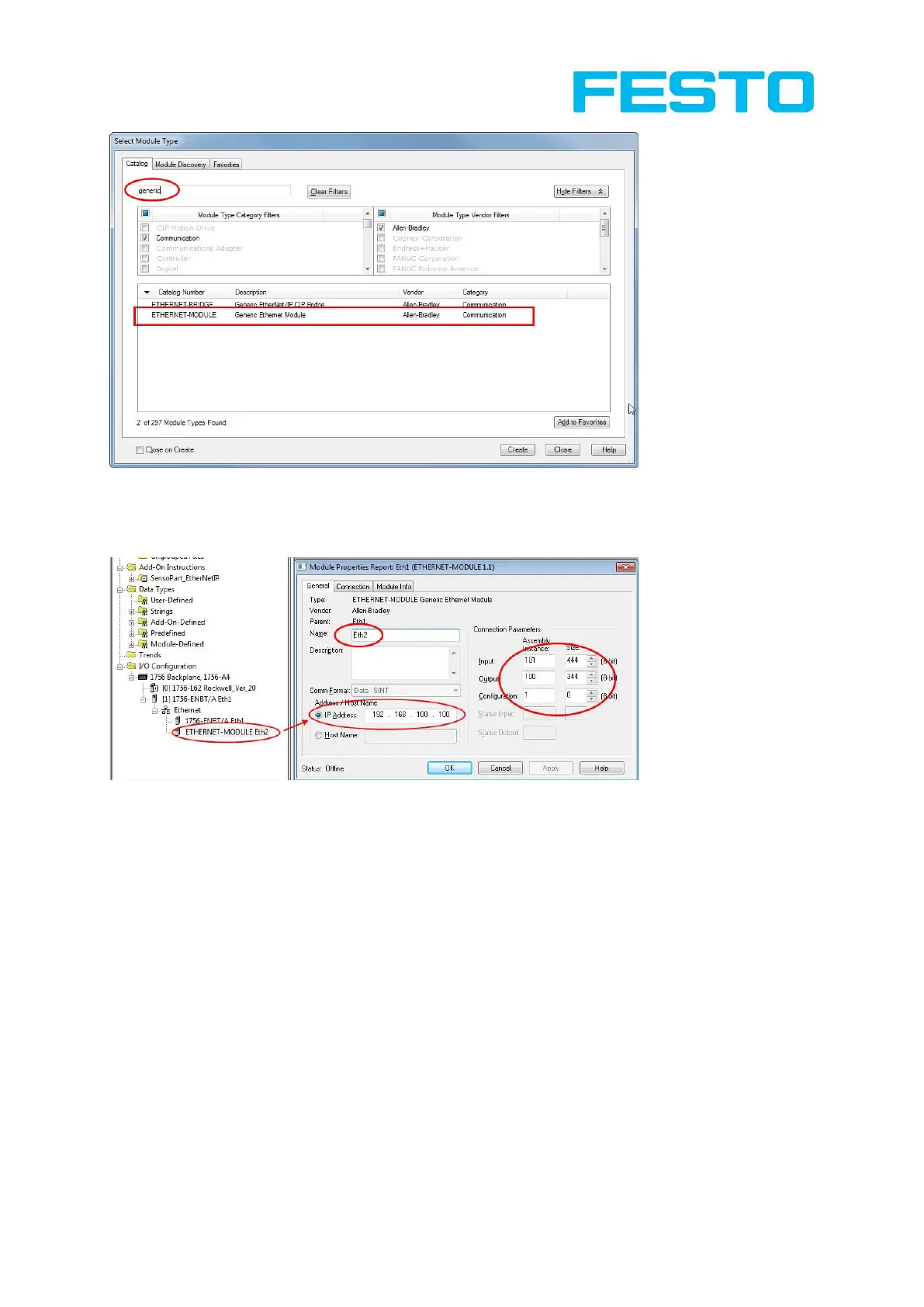

Fig. 310: EtherNet/IP, select Generic Module
Add one Ethernet module for each sensor
Fig. 311: EtherNet/IP, number of input and output byte
Duplicate this step with different name and IP-address for each sensor, rest of settings the same.
5.7.5.2 Over EDS-File
If an EDS file has been installed before „Festo SBS” can be selected directly inside the list of available
modules.
Assembly size and Assembly instance is set automatically in this case. Only IP address of SBS has to be
entered.
