1. Summary of components
1-5
Festo P.BE-CPVSC-EN en 0112NH
Overview of components
The CPV-SC valve terminal can consist of the following com-
ponents, depending on what has been ordered:
1
2
3
4
5
6
3
1
Right-h and end plate depending on
variant with connection 3/5, 82/84
or large-scale silencer
2 Blanking plate (without valve function)
for reserving a valve location
3 Valve sub-bases with single-solenoid
or double-solenoid valves (double-
solenoid valve occupies 2 valve
locations)
4 Separator plate with additional pres-
sure supply
5 Electrical sub-base with MP connection
6 Left-hand end plate depending on vari-
ant with connection 1 or 1 and 12/14

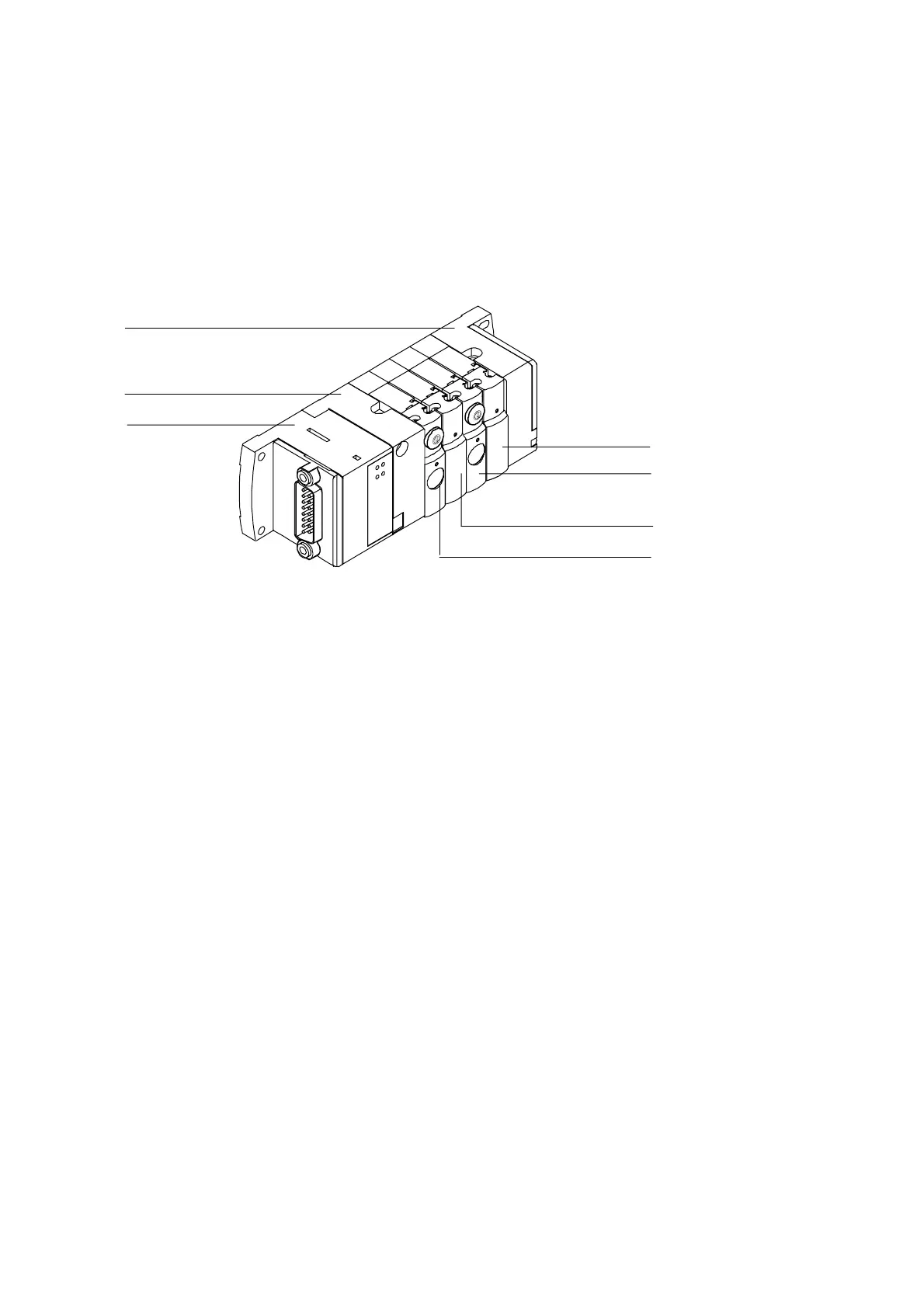

Fig. 1/1: Components of the CPV-SC valve terminal
