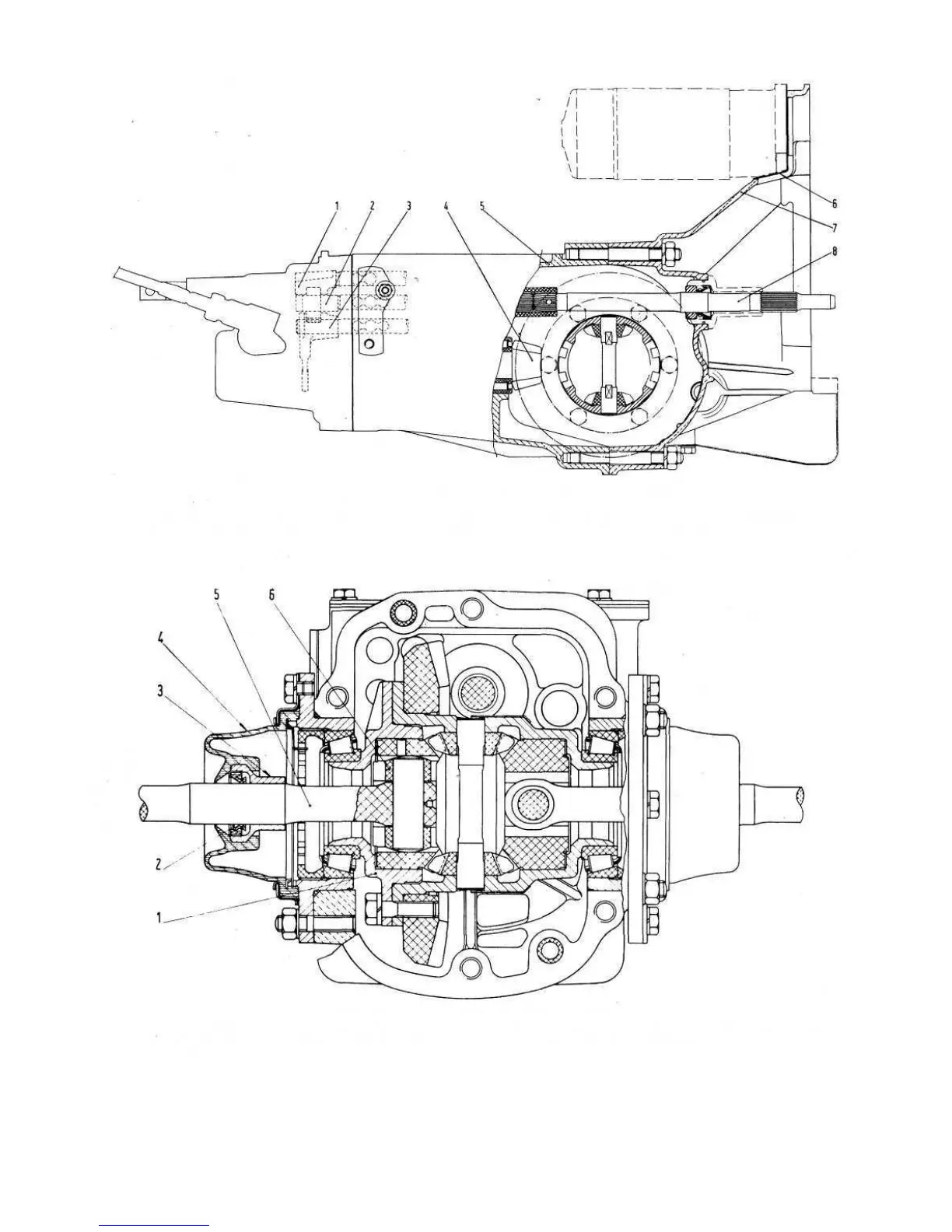

FIG 6:19 Modified items in transmission-differential assembly
Key to Fig 6:19 1 Reverse shifter shaft 2 Third and fourth shifter shaft 3 First and second shifter shaft
4 Countershaft pinion (and ring gear) 5-7 Transmission-differential case 6 Housing 8 Clutch shaft
FIG 6:20 End sectional view of transmission — differential assembly
The items having undergone design modifications, besides and final drive gears 2 Seal 3 Bushing 4 Oil
those shown in Fig 6 :19 are the following: 1 Differential case boot 5 Axle shaft 6 Joint casing
77
F500
