FiberHome AN5506-04-F User Manual

3 Product Installation
Version A 3-3

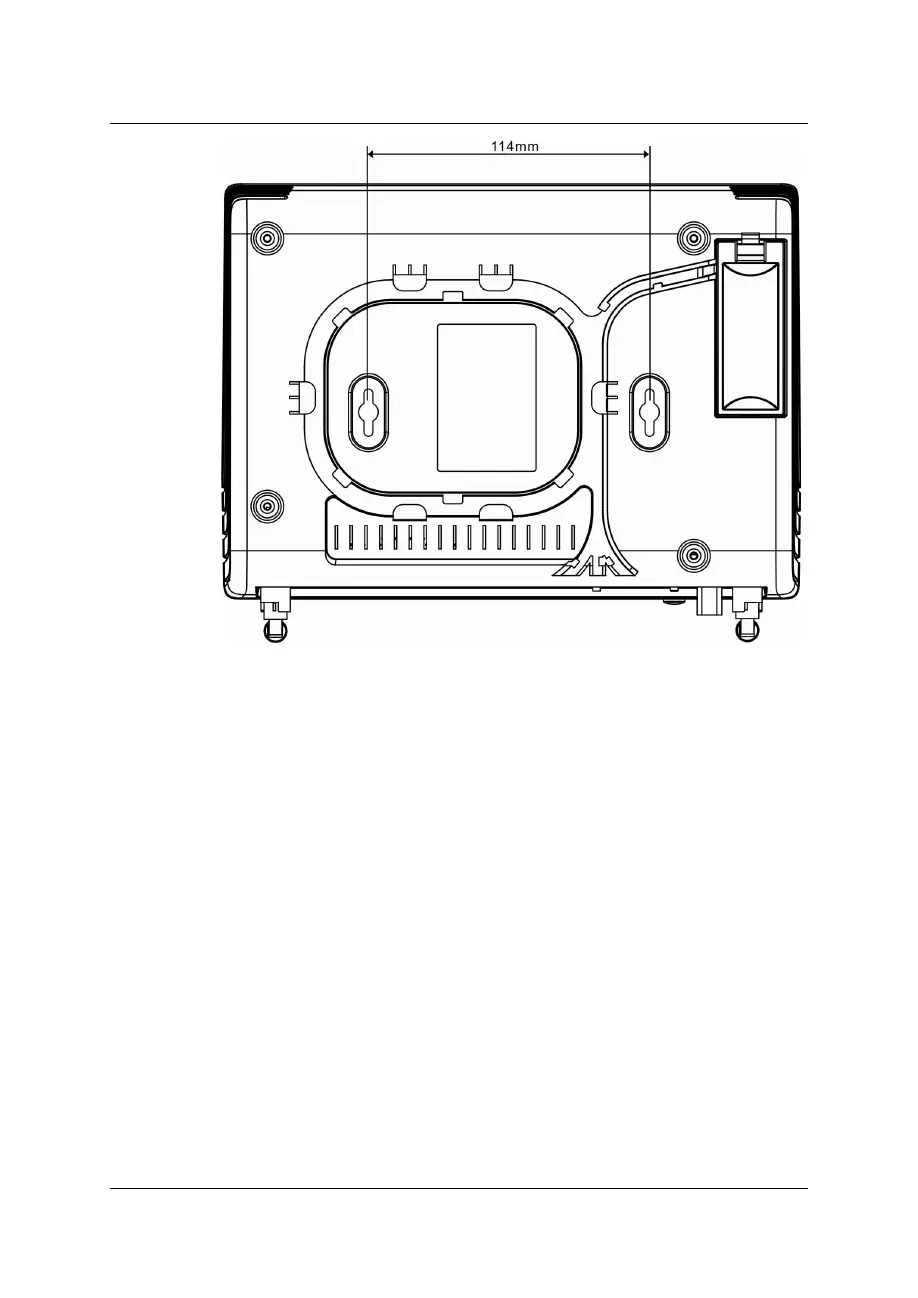

Figure 3-1 Dimensions of recesses on the AN5506-04-F bottom panel
3.3 Cable Connection
3.3.1 Connecting the Network Cable
You can connect the Ethernet interfaces of the AN5506-04-F to user
terminals, such as PCs and switches, by using network cables. See
Figure 3-2. Follow these steps to connect the network cable.
1) Plan the cabling mode of the network cable, measure the distance
between the LAN interface of the AN5506-04-F and the user
terminal, and select the network cable of proper length.
