3 Product Installation
Version A 3-9
ļ Note: There is an LED indicator indicates the status of the
storage battery power adapter. When the storage battery is
being charged, the indicator is red. When the battery charging
is complete, the indicator is green.

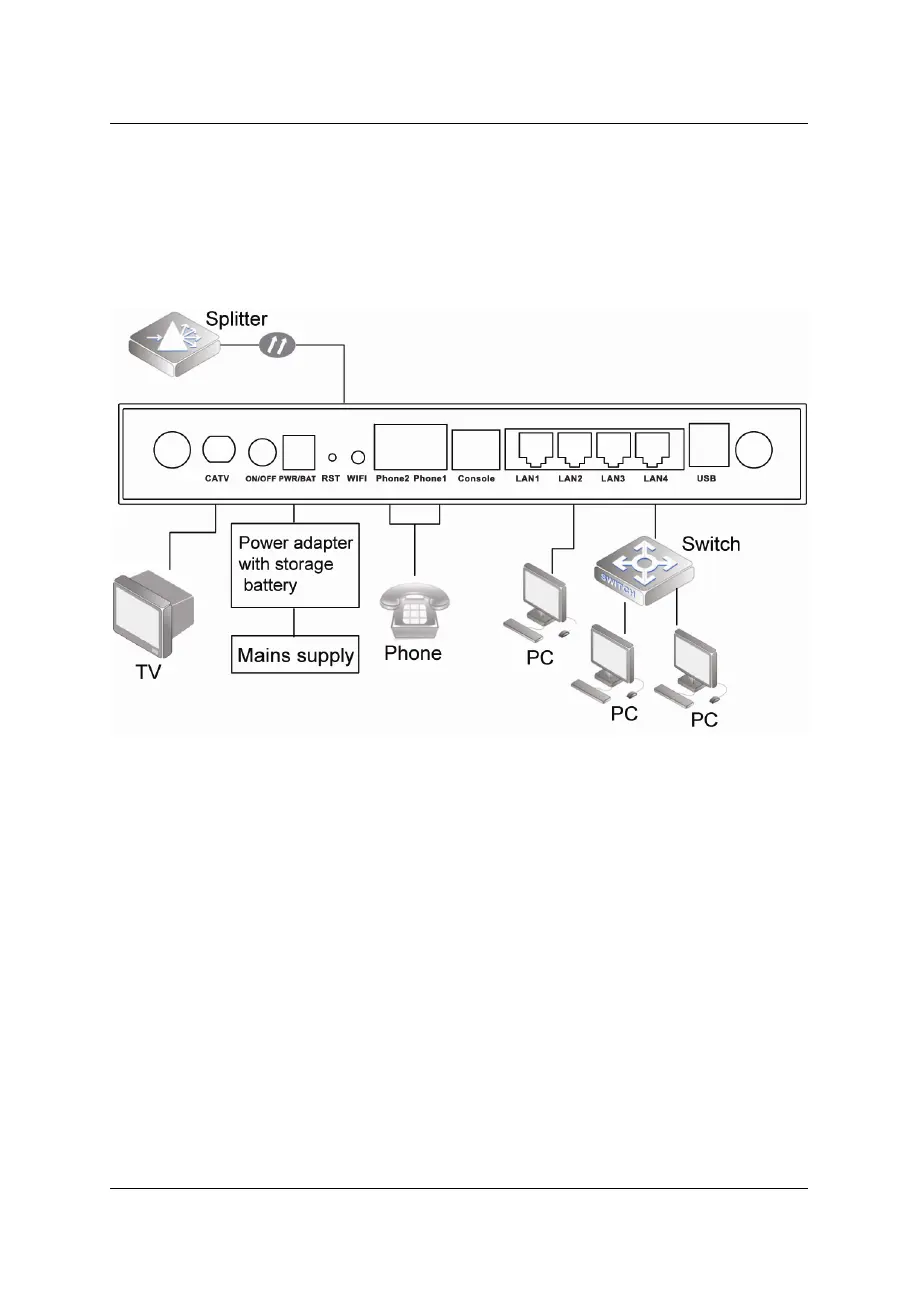

Figure 3-6 Cable connection
3.4 Checking After Installation
After the cable connection is complete and relevant services are applied
to your ISP, you need to power on the AN5506-04-F and do the following
checking:
1) Turn on the power.
2) Observe the status of the Power indicator. If the Power indicator is
on, the the device is normally powered on. Otherwise, check whether
the connection of power cable is correct.
