L830-EB-11 Hardware User Manual Page 32 of 39

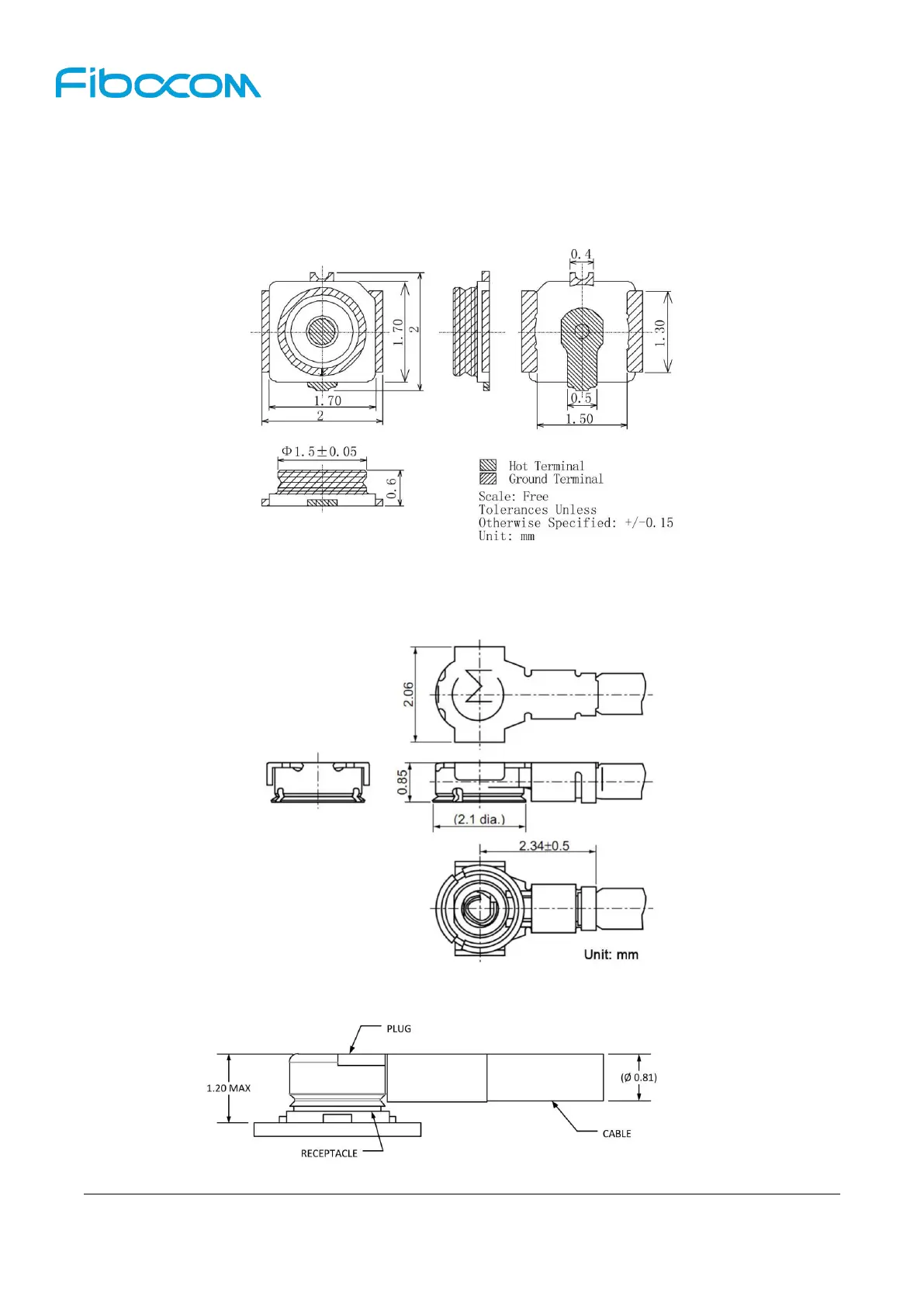

4.1.3 RF Connector Dimension
The L830 module adopts standard M.2 module RF connectors, the model name is 818004607 from ETC
company, and the connector size is 2*2*0.6m. The connector dimension is shown as following picture:
Figure 4-2 RF connector dimensions
Figure 4-3 0.81mm coaxial antenna dimensions
Figure 4-4 Schematic diagram of 0.81mm coaxial antenna connected to the RF connector
