L830 module Main antenna requirements
Input power
> 25dBm average power WCDMA & LTE
Recommended
standing-wave ratio (SWR)
≤ 2:1
5 Structure Specification
5.1 Product Appearance

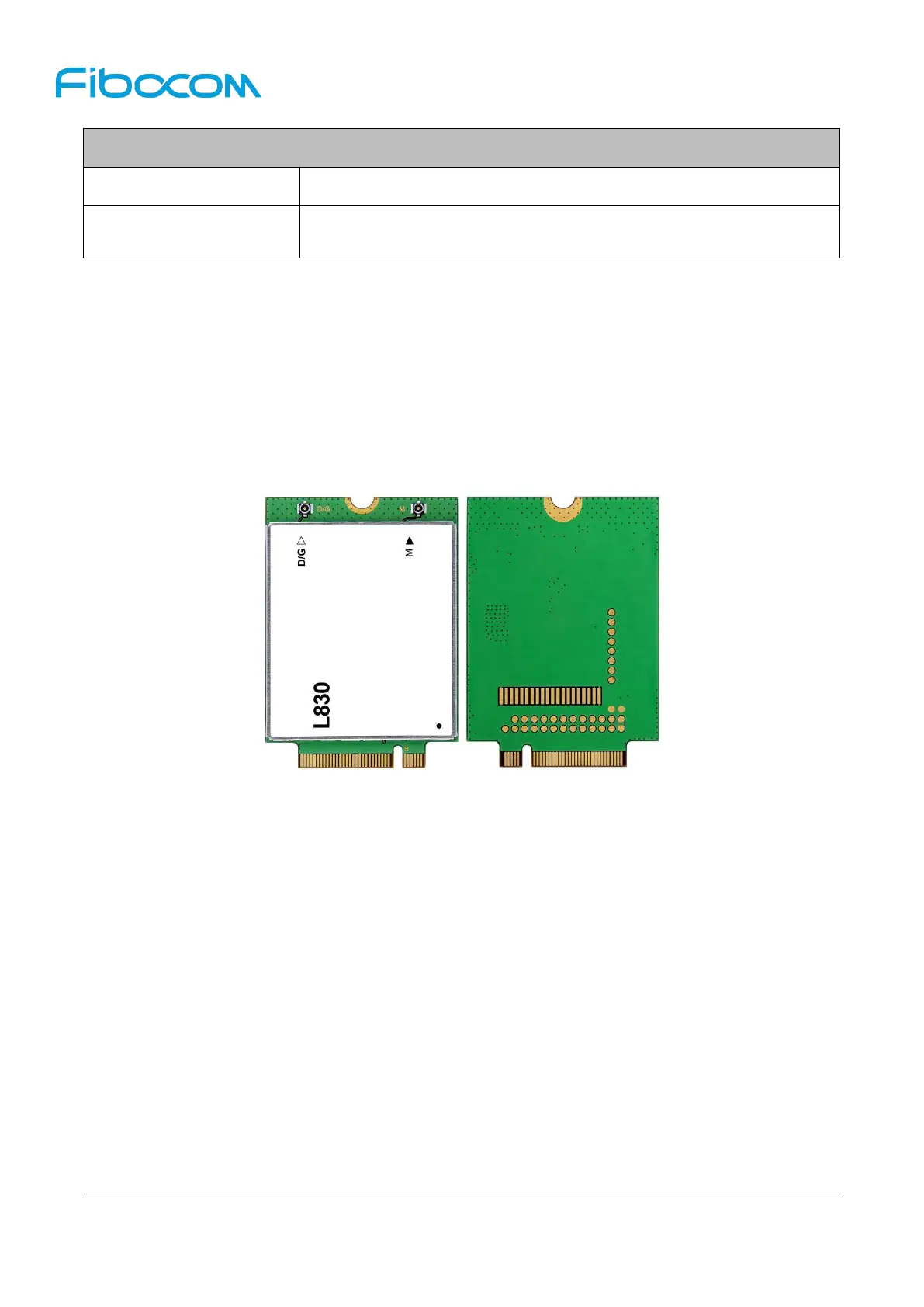

The product appearance for L830 module is shown in Figure 5-1:
Figure 5-1 Module Appearance
5.2 Dimension of Structure
The structural dimension of the L830 module is shown in Figure 5-2:
