FieldServer ProtoNode RER - Page 10

10
RS-485
Cable
Raypak
VERSA
Master Unit 1
Master Unit 2
Raypak
VERSA
( + )
( - )
Tx/+
Rx/-
Tx/+
Rx/-

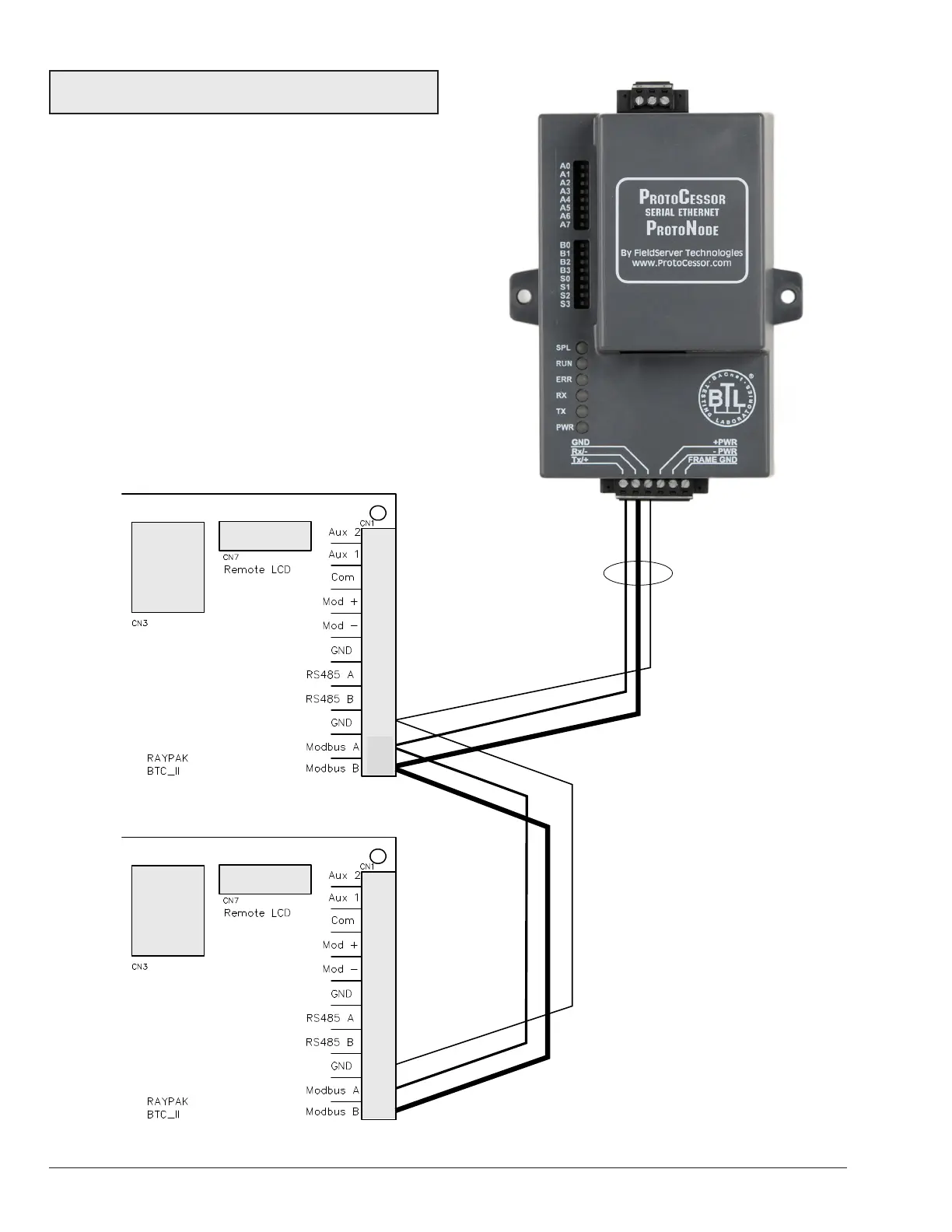

Figure 7. Multiple VERSA IC Masters
NOTE: Multiple Master conguration requires each
Master to have di󰀨erent ID’s.
