FieldServer ProtoNode RER - Interfacing the ProtoNode to Raypak Products; ProtoNode RER (FPC-N34) and LER (FPC-N35) showing connection ports

5
ProtoNode RER (FPC-N34) and LER (FPC-N35) showing connection ports

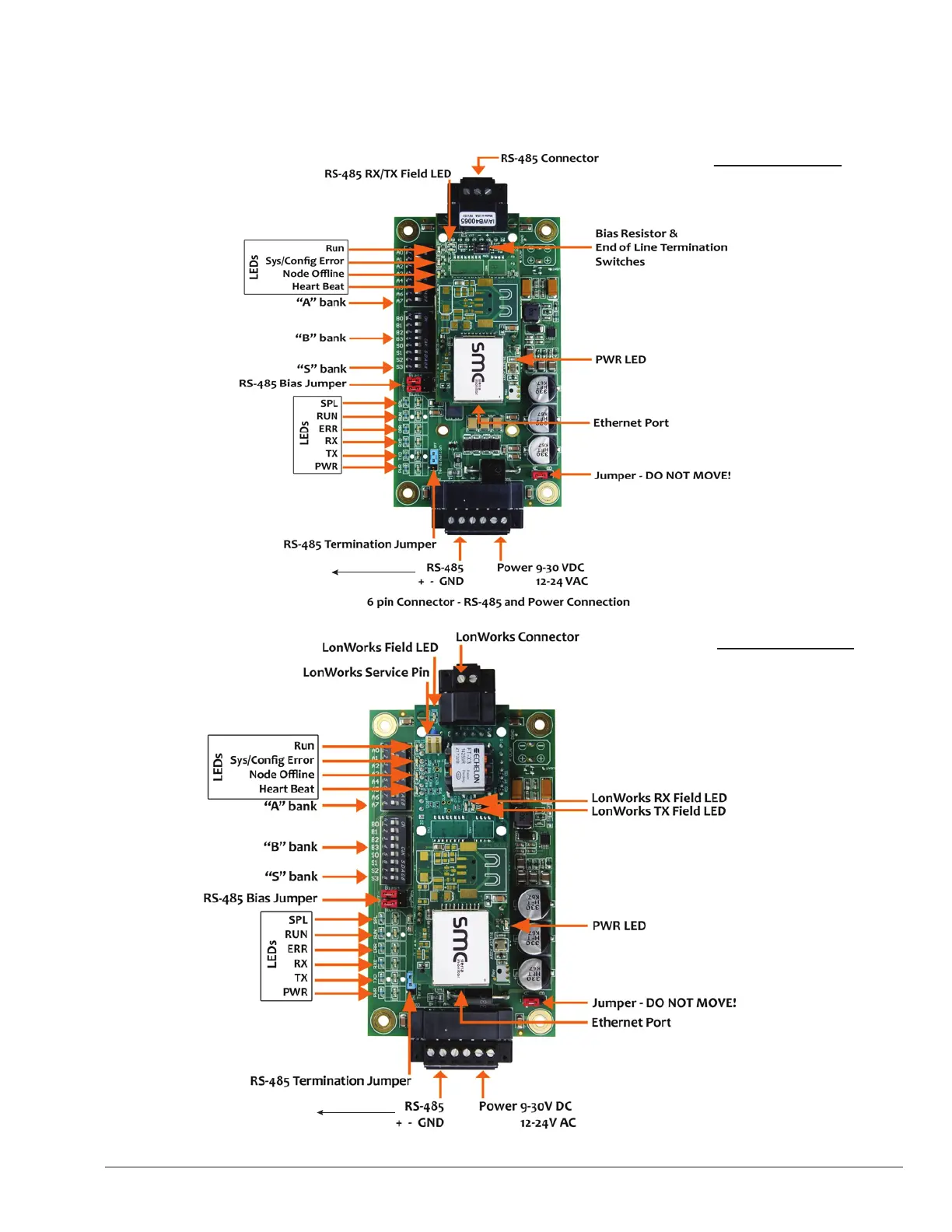

Figure 1. ProtoNode BACnet RER (BACnet) and ProtoNode LER (LonWorks)
RER Configuration:
B-85
BACnet, Modbus, Metasys
To Controller
To Controller
LER Configuration:
B-86
LonWorks
2. INTERFACING THE PROTONODE TO RAYPAK PRODUCTS
