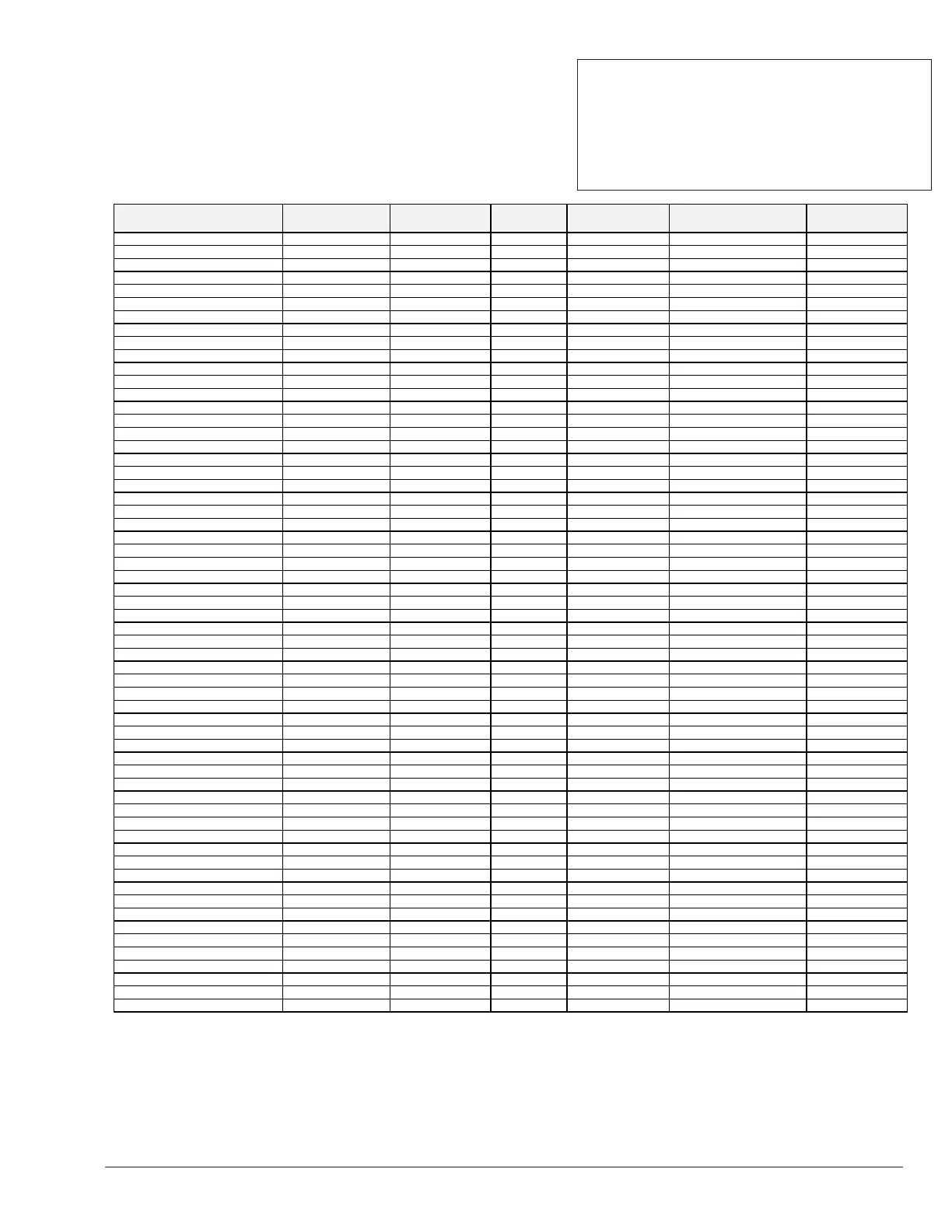

8. APPENDIX B. PICS STATEMENT
Raypak VERSA IC Modbus RTU
Mappings to BACnet MS/TP, BACnet/
IP, Metasys N2 and LonWorks
Point Name BACnet Data Type BACnet Object Id N2 Data Type N2 Point Address Lon Name Lon SNVT Type
MODBUS AI 1 AI 1 nvoMODBUS_XXX SNVT_count_f
System Supply Temperature AI 2 AI 2 nvoSysSupTmp_XXX SNVT_temp_p
Outdoor Temperature AI 3 AI 3 nvoOutdrTmp_XXX SNVT_temp_p
DHW Temperature AI 4 AI 4 nvoDHWTmp_XXX SNVT_temp_p
Aux 1 Temperature AI 5 AI 5 nvoAux1Tmp_XXX SNVT_temp_p
Aux 2 Temperature AI 6 AI 6 nvoAux2Tmp_XXX SNVT_temp_p
System Pump AI 7 AI 7 nvoSysPmp_XXX SNVT_count_f
System Pump Runtime AI 8 AI 8 nvoSysPmpRtm_XXX SNVT_count_f
DHW Pump AI 9 AI 9 nvoDHWPmp_XXX SNVT_count_f
DHW Pump Runtime AI 10 AI 10 nvoDHWPmpRtm_XXX SNVT_count_f
Setback AI 11 AI 11 nvoSetback_XXX SNVT_count_f
CH Call AI 12 AI 12 nvoCHCall_XXX SNVT_count_f
DHW Call AI 13 AI 13 nvoDHWCall_XXX SNVT_count_f
Target temperature AI 14 AI 14 nvoTargetTmp_XXX SNVT_temp_p
Target rate AI 15 AI 15 nvoTargetRat_XXX SNVT_lev_percent
Auto Diff BI 16 DI 16 nvoMonAutoDf_XXX SNVT_switch
Boiler1 detected
BI 17 DI 17 nvoLdDetct_XXX SNVT_switch
Boiler1 Outlet temperature
AI 18 AI 18 nvoLdOutTmp_XXX SNVT_temp_p
Boiler1 Inlet temperature
AI 19 AI 19 nvoLdInTmp_XXX SNVT_temp_p
Boiler1 Vent temperature
AI 20 AI 20 nvoLdVntTmp_XXX SNVT_temp_p
Boiler1 High Limit temperature
AI 21 AI 21 nvoLdHiLmTp_XXX SNVT_temp_p
Boiler1 Operator temperature
AI 22 AI 22 nvoLdOpTmp_XXX SNVT_temp_p
Boiler1 Mod Rate
AI 23 AI 23 nvoLdModRat_XXX SNVT_lev_percent
Boiler1 Mix Rate
AI 24 AI 24 nvoLdMixRat_XXX SNVT_lev_percent
Boiler1 Ignition Status
AI 25 AI 25 nvoLdIgStat_XXX SNVT_count_f
Boiler1 Runtime
AI 26 AI 26 nvoLdRtim_XXX SNVT_count_f
Boiler1 Cycles
AI 27 AI 27 nvoLdCyc_XXX SNVT_count_f
Boiler1 Pump
AI 28 AI 28 nvoLdPmp_XXX SNVT_count_f
Boiler1 Pump Runtime
AI 29 AI 29 nvoLdPmpRtm_XXX SNVT_count_f
Boiler1 Error Code
AI 30 AI 30 nvoLdErrCod_XXX SNVT_count_f
Boiler1 Error History 1
AI 31 AI 31 nvoLdErHt1_XXX SNVT_count_f
Boiler1 Error History 2
AI 32 AI 32 nvoLdErHt2_XXX SNVT_count_f
Boiler1 Error History 3
AI 33 AI 33 nvoLdErHt3_XXX SNVT_count_f
Boiler1 Error History 4
AI 34 AI 34 nvoLdErHt4_XXX SNVT_count_f
Boiler1 Error History 5
AI 35 AI 35 nvoLdErHt5_XXX SNVT_count_f
Boiler1 Error History 6
AI 36 AI 36 nvoLdErHt6_XXX SNVT_count_f
Boiler1 Error History 7
AI 37 AI 37 nvoLdErHt7_XXX SNVT_count_f
Boiler1 Error History 8
AI 38 AI 38 nvoLdErHt8_XXX SNVT_count_f
Boiler1 Error History 9
AI 39 AI 39 nvoLdErHt9_XXX SNVT_count_f
Boiler1 Error History 10
AI 40 AI 40 nvoLdErHt10_XXX SNVT_count_f
Boiler1 Error History 11
AI 41 AI 41 nvoLdErHt11_XXX SNVT_count_f
Boiler1 Error History 12
AI 42 AI 42 nvoLdErHt12_XXX SNVT_count_f
Boiler1 Error History 13
AI 43 AI 43 nvoLdErHt13_XXX SNVT_count_f
Boiler1 Error History 14
AI 44 AI 44 nvoLdErHt14_XXX SNVT_count_f
Boiler1 Error History 15
AI 45 AI 45 nvoLdErHt15_XXX SNVT_count_f
Boiler2 detected
BI 46 DI 46 nvoFl1Detct_XXX SNVT_switch
Boiler2 Outlet temperature
AI 47 AI 47 nvoFl1OutTmp_XXX SNVT_temp_p
Boiler2 Inlet temperature
AI 48 AI 48 nvoFl1InTmp_XXX SNVT_temp_p
Boiler2 Vent temperature
AI 49 AI 49 nvoFl1VntTmp_XXX SNVT_temp_p
Boiler2 High Limit temperature
AI 50 AI 50 nvoFl1HiLmTp_XXX SNVT_temp_p
Boiler2 Operator temperature
AI 51 AI 51 nvoFl1OpTmp_XXX SNVT_temp_p
Boiler2 Mod Rate
AI 52 AI 52 nvoFl1ModRat_XXX SNVT_lev_percent
Boiler2 Mix Rate
AI 53 AI 53 nvoFl1MixRat_XXX SNVT_lev_percent
Boiler2 Ignition Status
AI 54 AI 54 nvoFl1IgStat_XXX SNVT_count_f
Boiler2 Runtime
AI 55 AI 55 nvoFl1Rtm_XXX SNVT_count_f
Boiler2 Cycles
AI 56 AI 56 nvoFl1Cyc_XXX SNVT_count_f
Boiler2 Pump
AI 57 AI 57 nvoFl1Pmp_XXX SNVT_count_f
Boiler2 Pump Runtime
AI 58 AI 58 nvoFl1PmpRtm_XXX SNVT_count_f
Boiler2 Error Code
AI 59 AI 59 nvoFl1ErrCod_XXX SNVT_count_f
Boiler2 Error History 1
AI 60 AI 60 nvoFl1ErHt1_XXX SNVT_count_f
AI = Analog Input
AO = Analog Output
AV = Analog Value
BI = Binary Input
BV = Binary Value
DI = Digital Input
DO = Digital Output
SNVT = Standard Network
Variable Type
