Installation and Operation Manual FVA-IP Camera
22 P/N 06-523 (Rev. 6) Revision Date: June, 2019
Therelaysettingspagedefineswhen,underwhateventtypes,oneofthethreerelayswillcloseaswellasiftherelay
will be automatic (no delay) or manual (with delay), Figure 18.Ifmanualischosenadelaycanbesetinplaceto
providetimeforthemonitoringpersonneltoconfirm,delayorresettheevent.Thedelaytimecanbesetfrom0to
250seconds.Toinitiate a relay, select the desire event youwishtherelaytoactivateon.Theselectedevents will
causetherelaytoswitchstates.ThiscanbetestedusingtheoperatorfeatureCamerastatus.Thedefaultsettingis
relayone:smokeandfirealarm,relaytwo:trouble,andrelaythreeauxiliary(leftblank).Relaytwoisreversedsoasto
closeonlossofpowerandshouldremainatroublecontact.



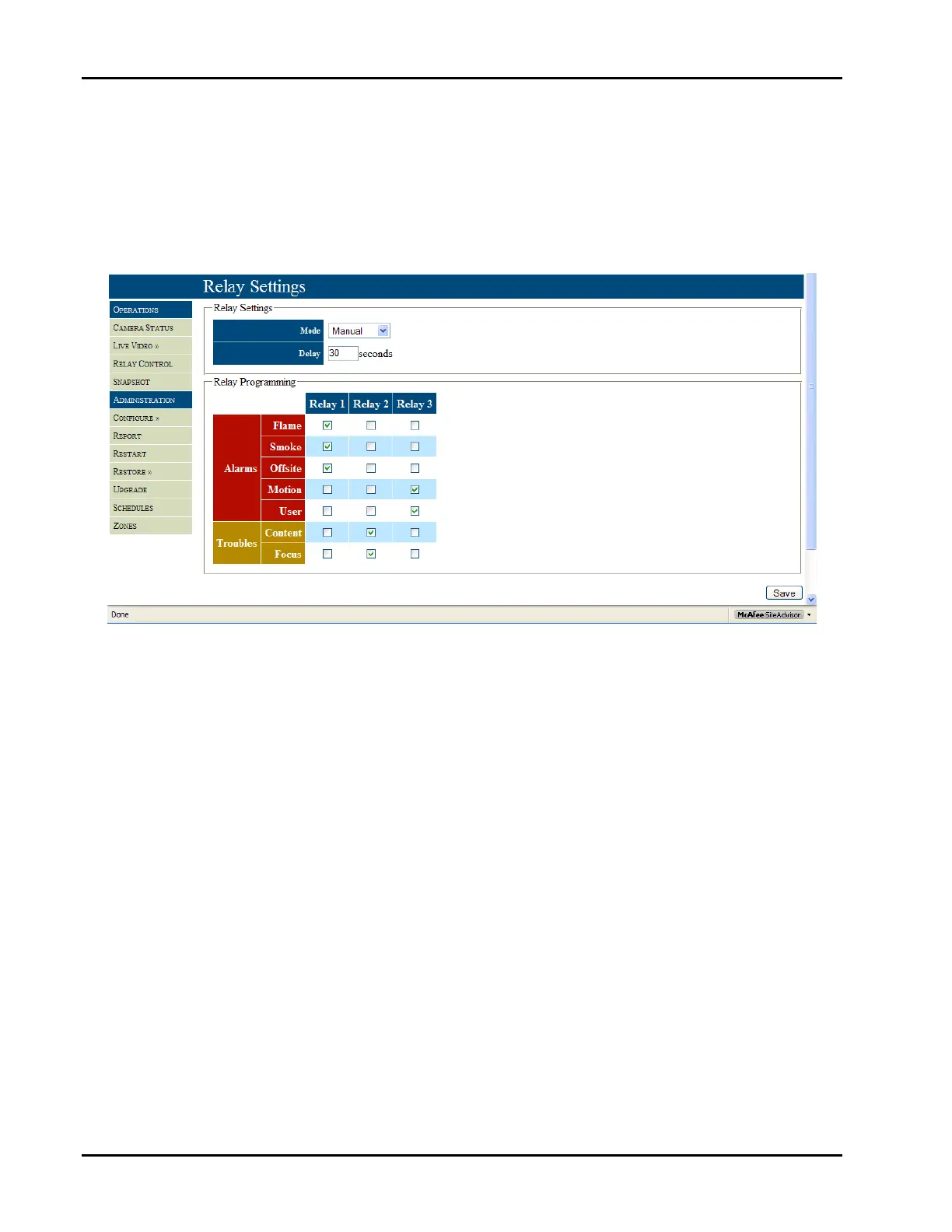

Fig18–Relaysettingsareconfigurable.
