INSTALLATION INSTRUCTIONS
! Important Note: The Calibration system will take all the bends and restrictions
of the flex hose into account and provide optimal performance.

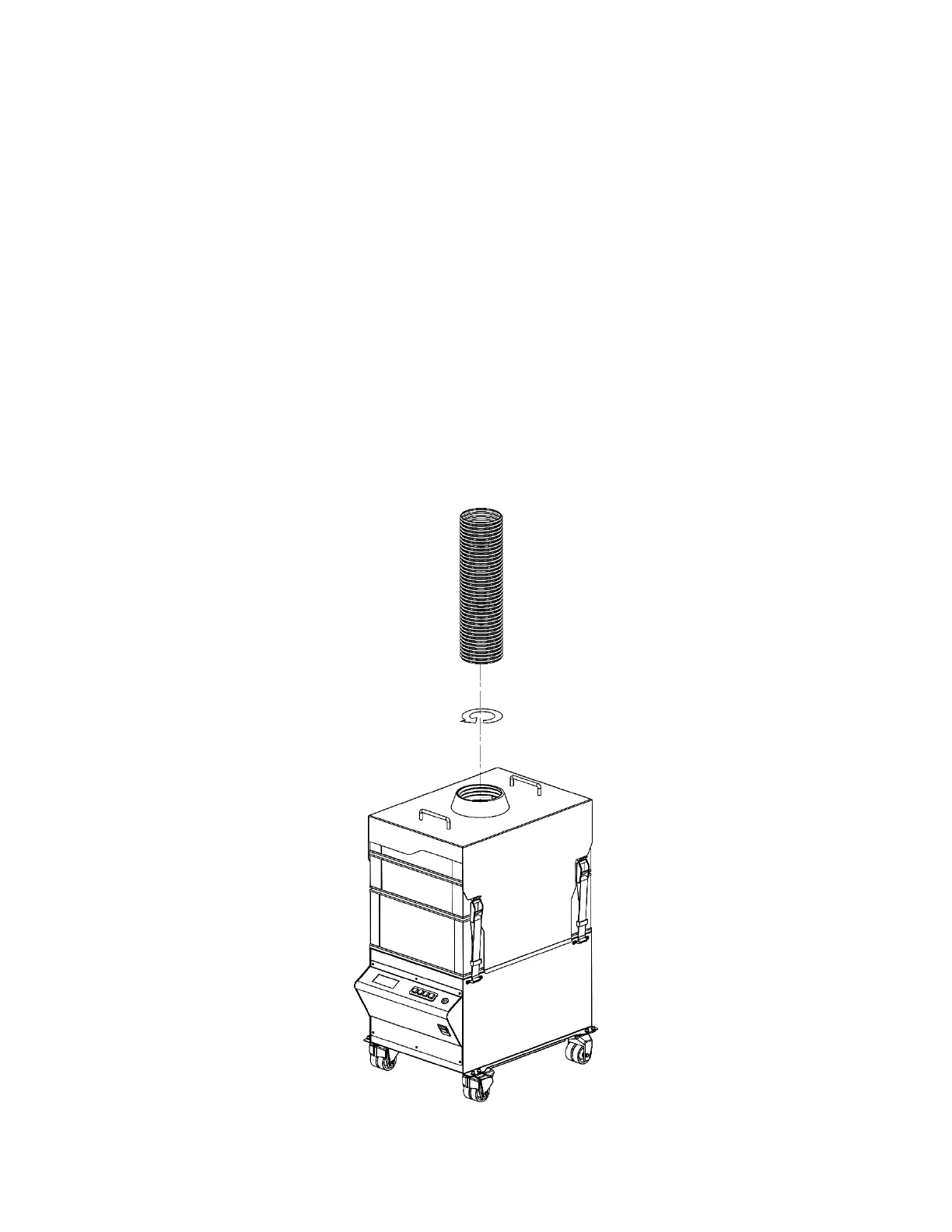

1. Screw the supplied 4” Flex Hose onto the inlet of the machine. Insert the hose into the threads
and turn anti-clockwise until it can longer turn. See figure below.
2. Secure the other end of the supplied 4” Flex Hose to your laser with the supplied Hose Clamp.
3. Place the Filtrabox in the final position that it will be regularly used. This is important for
Calibration as the system will take all the bends and flow restrictions of the flex hose into
account and provide optimal performance. Engage the brakes on the two front wheels to hold
the machine in place.
4. Install the supplied power cord onto the back of the Filtrabox and turn it on with the Main
Power Switch located on the bottom of the User Interface.
