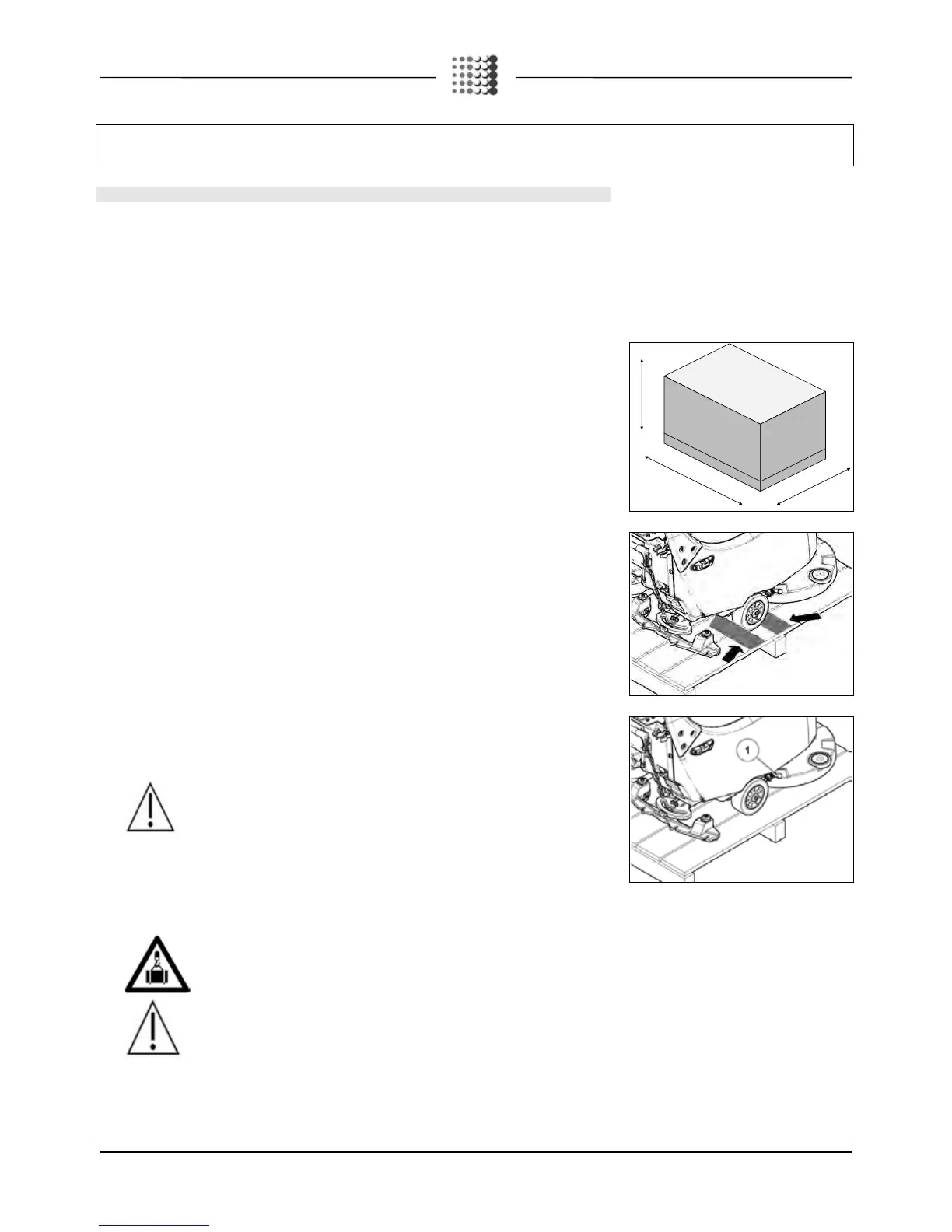

MACHINE PREPARATION
1. HANDLING OF THE PACKED MACHINE
The machine is contained in specific packaging with a pal
let for the handling with fork trucks. The
packages cannot be placed on top of each other.
Gross weight of machine with packaging:
iMx version B: 94 kg
iMx version BT: 101 kg
iMx version BB: 94 kg
The dimensions of the packaging are as follows:
A=
1170mm
B= 660mm
C= 1430mm
A
C
B
1. Remove the outer package.
2. The machine is fixed to the pallet with wedges which block the wheels
3. Remove the wedges
4. Disconnect the parking brake (only for BT versions), rotate the lever (1) on the right side of the
machine anti-clockwise.
5. Use a chute to get the machine down from the pallet, pushing it backwards. Do not assemble the rear
squeegee before unloading the machine, and avoid violently jolting the brush head. To assemble the
squeegee, read the “ASSEMBLING THE SQUEEGEE” paragraph.
WARNING: During transport operations, the instrument panel may be activated but
the machine is still off.
6. Keep the pallet for any future transport needs.
WARNING: If the product is delivered in cardboard containers, handle the
packed product with suitable lifting means that comply with the legal
requirements
WARNING: During this operation, check there are no people or objects near
the machine
