Fimap iMx 50BT - On Consignment of the Machine; Intended Use; Introductory Comment; Serial Number Plate

5
On consignment of the machine
When the machine is consigned to the customer, an immediate check
must be performed to ensure all the material mentioned in the shipping
documents has been received, and also to check the machine has not
suffered damage during transportation. If this is the case, the carrier must
ascertain the extent of the damage at once, informing our customer
service office. It is only by prompt action of this type that the missing
material can be obtained, and compensation for damage successfully
claimed.
Intended use
The floor scrubbing machine is designed exclusively for the professional
cleaning of surfaces and floors in industrial, commercial and public
environments. The machine is only suitable for use in closed - or at least
covered - locations.
The machine is not suitable for use in the rain, or under water jets. It is
FORBIDDEN to use the machine for picking up dangerous dusts or
inflammable liquids within places with a potentially explosive atmosphere.
In addition, it is not suitable as a means of transport for people or objects.
Introductory comment
The iMx is a floor scrubbing machine which, by means of the mechanical
action of the rotating brush and the chemical action of a water/detergent
solution, can clean any type of flooring. As it advances, it also collects
any removed dirt as well as the detergent solution not absorbed by the
floor.
The machine must only be used for this purpose. Even the best
machines will only work well if used correctly and kept in good working
order. We therefore suggest you read this instruction booklet carefully
and read it again whenever difficulties arise while using the machine. If
necessary, remember that our customer assistance service (organised in
collaboration with our dealers) is always available for advice or direct
intervention.

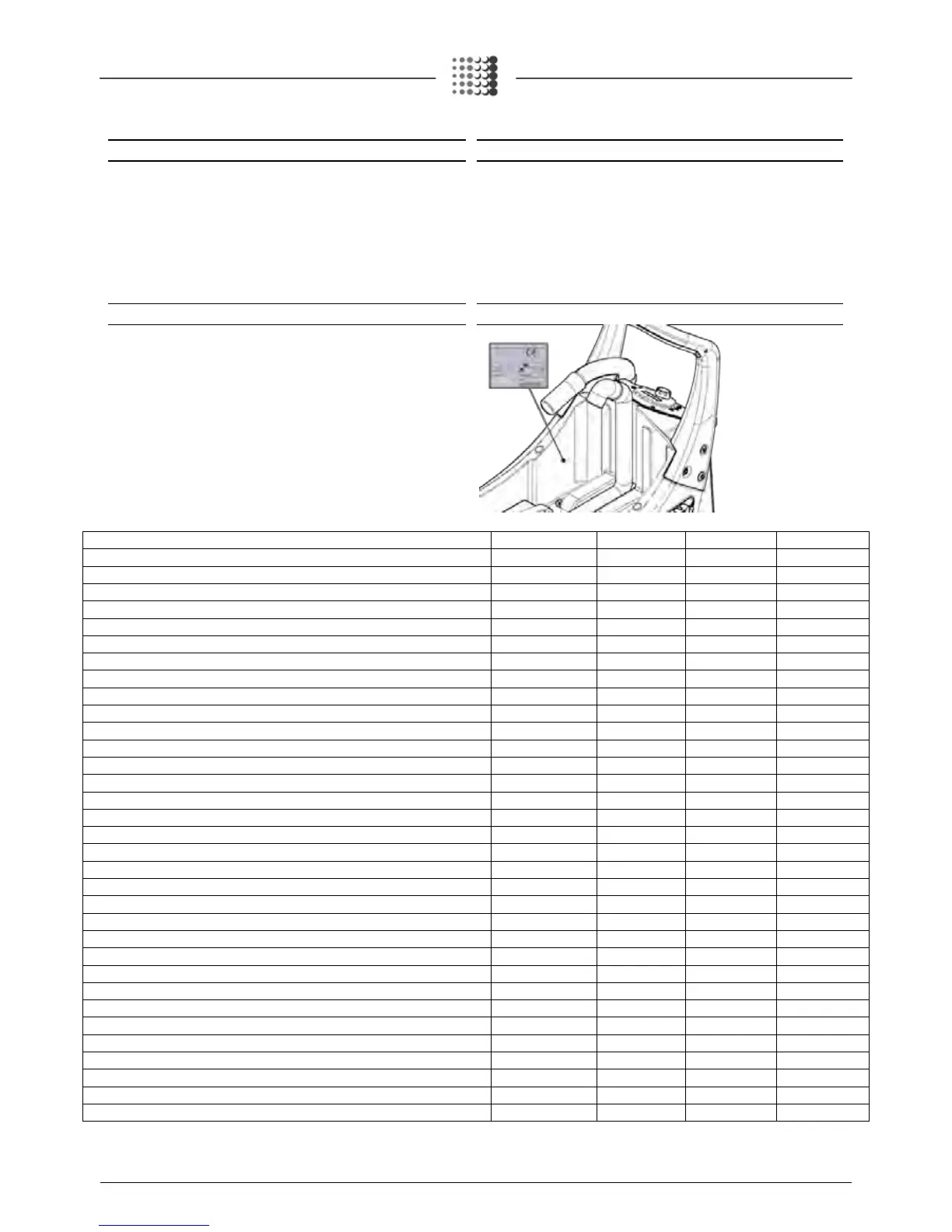

Serial number plate
TECHNICAL DESCRIPTION
UM
iMx 50B
iMx 50BT
iMx 50BB
Working width
mm
508
508
508
Squeegee width
mm
705
705
705
Working capacity, up to
m
2
/h
2032
2032
2032
Disc brush
No. / ∅Ø mm
1 / 508
1 / 508
1 / 508
Disc brush rotations
rpm
166
166
166
Brush motor
V/W
24 / 500
24 / 500
24 / 500
Maximum pressure on the brush
kg
25
25
25
Traction motor
V/W
-
24 / 150
-
Traction wheel (number / diameter / width)
No. / (∅ mm / mm)
2 / (225 / 64)
2 / (225 / 64)
2 / (172.5 / 45)
Maximum forward speed in transport mode
km/h
-
4
-
Maximum forward speed in working mode
km/h
-
3.9
-
Maximum gradient with full load
%
2
2
2
Vacuum motor
No./(V/W)
1 / (24 / 310)
1 / (24 / 310)
1 / (24 / 310)
Suction vacuum
mmH
2
O
610
610
610
Rear wheel (number / diameter / width)
∅ mm / mm
1 / 80 / 23
1 / 80 / 23
1 / 80 / 23
Solution tank
l
41
41
41
Recovery tank
l
37
37
37
Steering diameter
mm
850
850
850
Machine length
mm
1180
1180
1180
Machine length (with splash guard kit)
mm
1200
1200
1200
Machine height
mm
1030
1030
1030
Machine width (without squeegee)
mm
570
570
570
Machine width (without squeegee + optional splash guard kit)
mm
580
580
580
Battery compartment (l x w x h)
mm
353 / 333 / 250
353 / 333 / 250
353 / 333 / 250
Rated battery voltage
Nr / V / Ah
2 / 12 / 77
2 / 12 / 77
2 / 12 / 77
Battery weight (calculated with 12 V 77Ah battery)
kg
26.5
26.5
26.5
Machine weight (machine + brush + squeegee)
kg
69
76
69
Machine weight in transport (machine + batteries + brush + squeegee)
kg
122
129
122
Machine weight in running order (machine + batteries + water + brush + squeegee)
kg
163
170
163
Sound pressure level (ISO 11201) - L
pA
dB (A)
52.9
63
52.9
Uncertainty K
pA
dB (A)
1.5
1.5
1.5
Hand vibration level (ISO 5349)
m/s
2
0.663
0.612
0.663
Uncertainty of measurement of vibrations
6%
6%
6%
