MACHINE PREPARATION
5. Squeegee vacuum hose
6.
Battery charger connector cable cap.
7.
Recovery tank drainage tube
8. Control handlebar, with dead man's lever beneath.
9.
Vacuum motor tube.
10.
Recovery tank lifting handle.
11.
Recovery tank cover

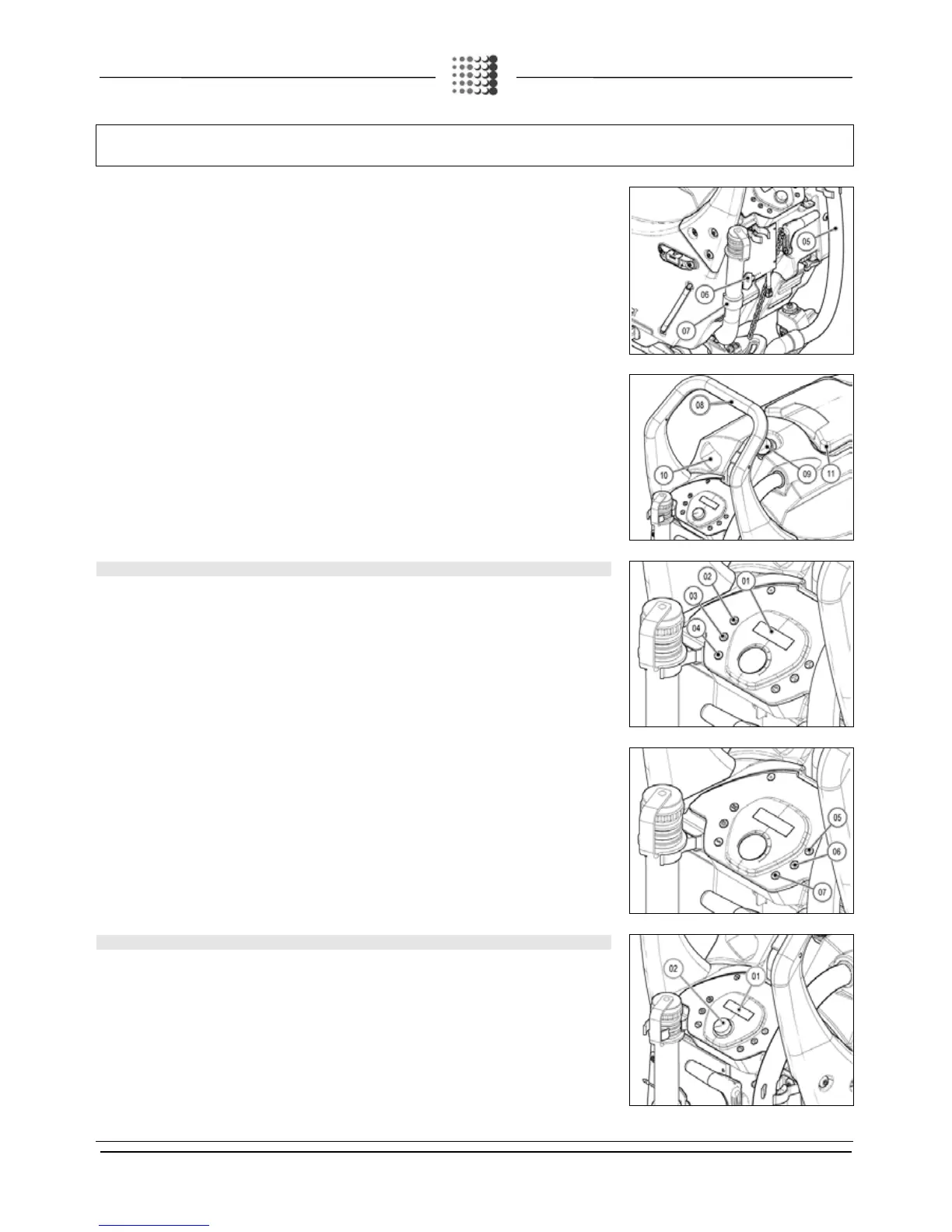

6. CONTROL PANEL COMPONENTS (VERSION B)
The control panel components are identified as follows:
1. Level indicator for battery/hour meter.
2. "ECO" function button
3. Vacuum motor control button.
4. “AUTO” function button.
5. Proportional solenoid valve control button, increases the detergent flow.
6. Proportional solenoid valve control button, decreases the detergent flow.
7. Brush uncoupling button.
7. CONTROL PANEL COMPONENTS (VERSION BT)
The control panel components are identified as follows:
1. Level indicator for battery/hour meter.
2. Speed regulation knob (only for BT version).
