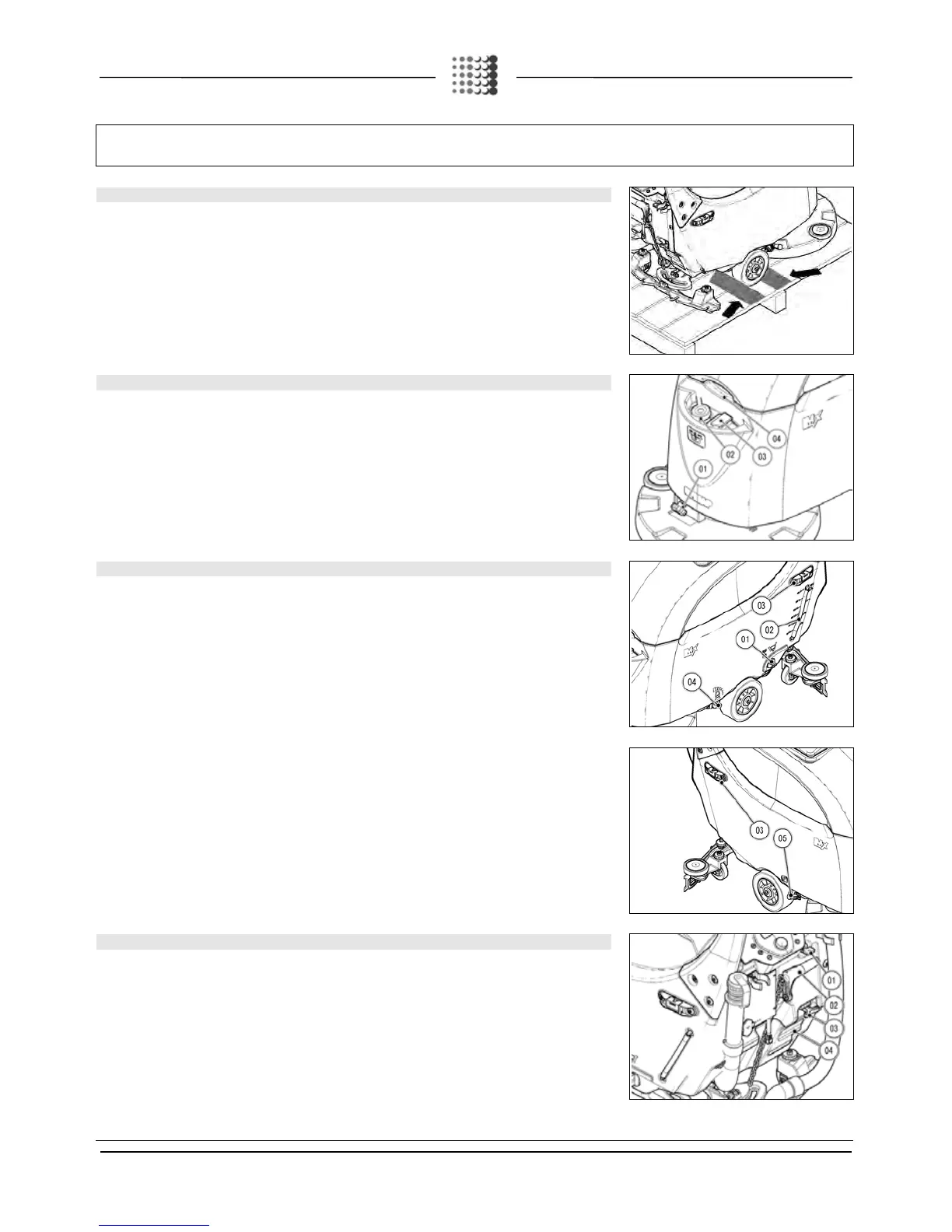

MACHINE PREPARATION
2. HOW TO MOVE THE MACHINE
1. Using a chute, mount the machine on the pallet. Carry out this operation with the rear squeegee and
the brush detached from the machine.
2. Check the solution tank and recovery tank are empty; if necessary, empty them
3. Check that the main machine switch is in position "0" (for B-BT versions) or "OFF" (for BB versions). If
this is not the case, place the switch in this position.
4. Disconnect the electric system connector from the battery connector
5. Secure the machine to the pallet using wooden wedges
6. Apply the parking brake (only for BT version).
3. FRONT MACHINE COMPONENTS
The front components of the machine are identified as follows:
1.
Direction control knob.
2.
Fast water filler cap.
3.
Water filler cap, detergent dispenser.
4.
Recovery tank lifting handle
4. SIDE COMPONENTS OF THE MACHINE
The components on the left
-hand side of the machine are identified as follows:
1.
Cap - solution tank filter.
2.
Solution tank filler level tube.
3.
Vacuum support cover – brush – squeegee body.
4.
Detergent solution flow control lever.
The components on the right-hand side of the machine are identified as follows:
5.
Parking brake lever (only for BT version).
5. REAR COMPONENTS OF THE MACHINE
The components at the rear of the machin
e are identified as follows:
1.
Main switch with key (B-BT versions).
2.
Squeegee body control lever.
3.
Electrical system connector
4.
Document compartment cover or battery charger power cable (CB version).
