Fimap MR65 B - Disc Brush Disassembly (Mr60 B Versions); Disc Brush Disassembly (Mr 65-75-85-100 B Versions)

27
DAILY MAINTENANCE
42.

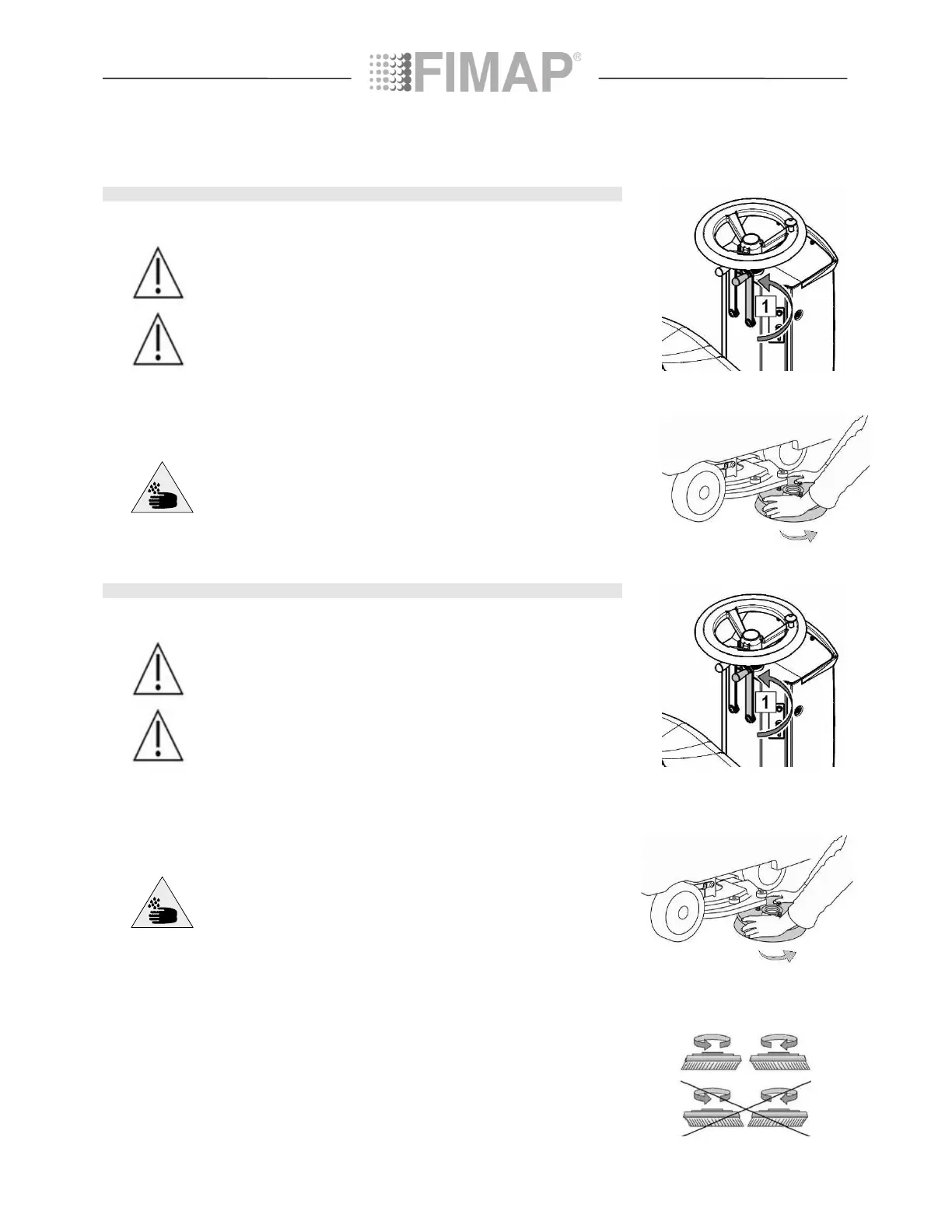

DISC BRUSH DISASSEMBLY (MR60 B VERSIONS)
1. Lift the base by turning the right lever (1) to move the base anticlockwise.
ATTENTION: Before performing any maintenance, remove the keys from the
panel and disconnect the battery connector of the machine.
ATTENTION: During this operation, check there are no people or objects near
the brush.
2.
Rotate the brush anticlockwise until
it comes out of the brush
-
holder plate seat, as shown in the figure.
ATTENTION: Users are advised to always wear protective gloves, to avoid the
risk of serious injury to hands.
43.
DISC BRUSH
DISASSEMBLY (MR
65
-
75
-
85
-
100 B VERSIONS)
1. Lift the base by turning the right lever (1) to move the base anticlockwise.
ATTENTION: Before performing any maintenance, remove the keys from the
panel and disconnect the battery connector of the machine.
ATTENTION: During this operation, check there are no people or objects near
the brush.
2.
Rotate the brush anticlockwise until it comes out of the brush
-
holder plate seat, as shown in the figure.
The photo shows the direction of rotation for releasing the right brush. Rotate in the opposite direction
for the left brush.
ATTENTION: This operation must be carried out using gloves to protect
against contact with dangerous solutions.
Y
ou are advised to invert the right
and left
-
hand brushes every day. If the brushes are not new however, and
have deformed bristles, it is better to reassemble them in the same position (the right-hand one on the right,
and the left-hand one on the left), to prevent the different inclination of the bristles producing an overload on
the brush motor as well as excessive vibrations.
