11
MACHINE PREPARATION
WARNING: you are advised to use airtight batteries only, to avoid the leakage
of acids!
ATTENTION: you are advised to always wear protective gloves, to avoid the
risk of serious injury to your hands
ATTENTION: You are advised to only lift and move the batteries with lifting
and transportation means suitable for the specific weight and size

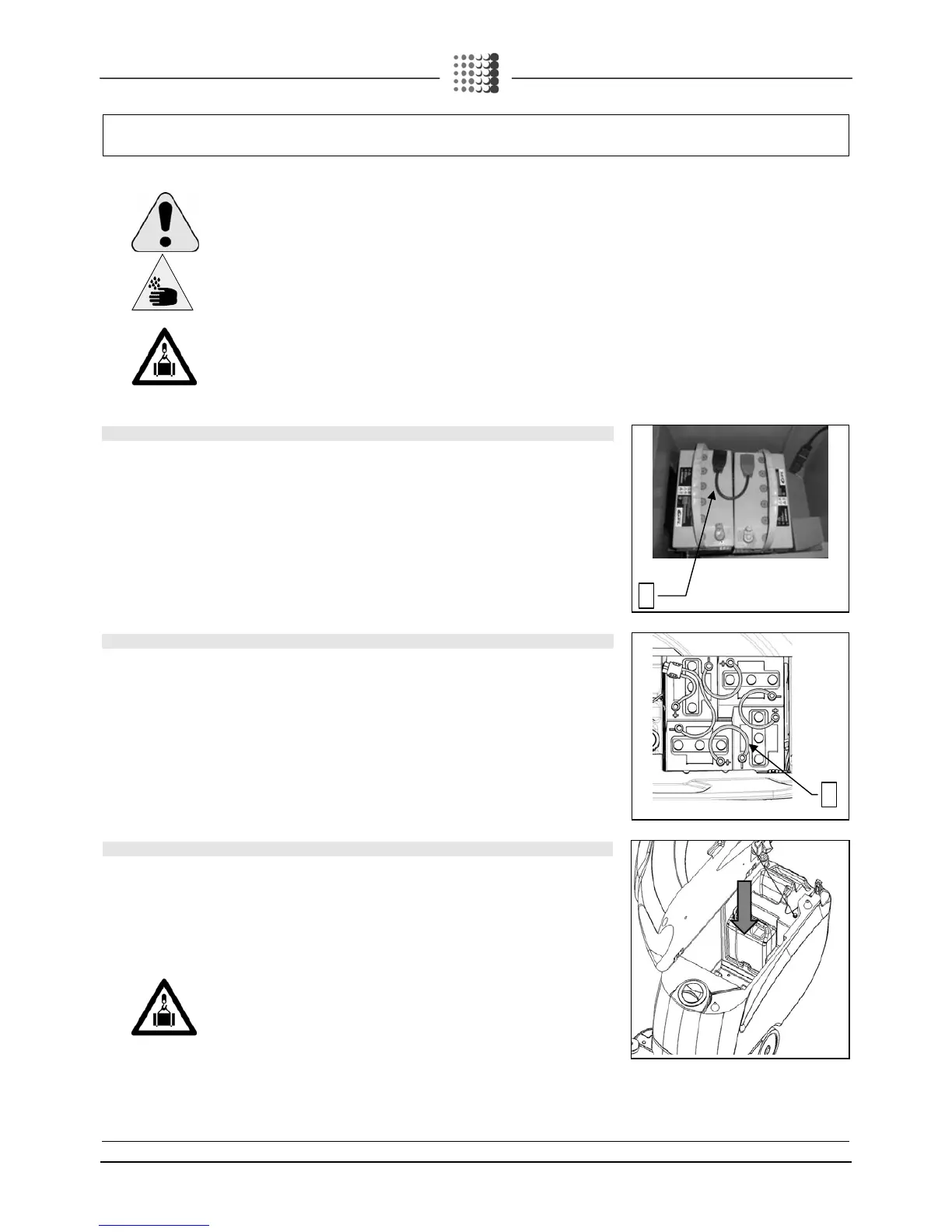

5. CONNECTING THE BATTERIES (MX VERSION)
To connect the batteries you must:
1. house the batteries in the compartment, positioning the poles “+” and “-“ opposite each other
2. connect the batteries in series - using the jumper cables supplied (3) - to the poles “+” and “-“
3. Connect the battery connector cable to the terminal poles “+” and “-“ to obtain a voltage of 24V on the
terminals
6. CONNECTING THE BATTERIES (SMX VERSION)
4. house the batteries in the compartment, positioning the poles “+” and “-“ opposite each other
5. connect the batteries in series - using the jumper cables supplied (3) - to the poles “+” and “-“
6. Connect the battery connector cable to the terminal poles “+” and “-“ to obtain a voltage of 24V on the
terminals
7. TYPE OF BATTERY
To power the machine it is necessary to use:
• liquidelectrolyte lead traction batteries;
• sealed traction batteries with gasrecombination or gel technology.
OTHER TYPES MUST NOT BE USED.
Each battery consists of DIN type cells connected in series that supply 6V voltage (SMx) or 12V voltage
(Mx) to the clamps.
ATTENTION: You are advised to only lift and move the batteries with lifting
and transportation means suitable for the specific weight and size
