Fimap Mx Series - Replacing the Front Squeegee Rubber

33
WEEKLY MAINTENANCE

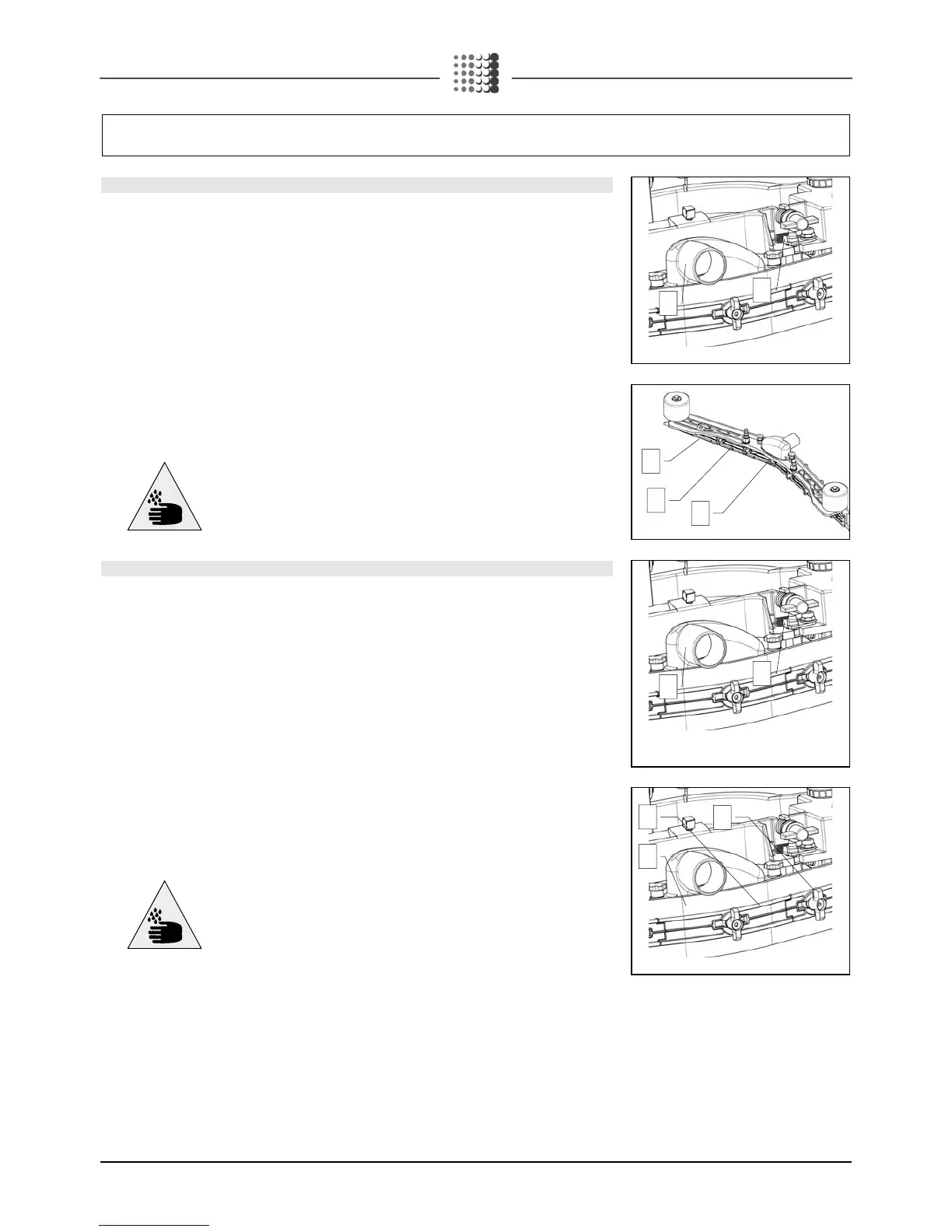

4. REPLACING THE FRONT SQUEEGEE RUBBER
Suction will be poor and the machine will not dry perfectly if the front squeegee rubber is worn. Proceed
as follows to replace:
1. Check that the main switch of the machine is set to “Off – 0”
2. Verify that the battery connector is disconnected from the machine connector
3. Check that the parking brake is correctly engaged.
4. Remove the suction hose from the squeegee nozzle (1)
7. remove the squeegee, pushing the plate (2) to the left in order to release the squeegee small column
from its seat
5. pull the squeegee to the right until the left-hand small column is released from its seat
6. Turn the wing nuts (3) in the horizontal position.
7. Remove the front rubber-pressing blades (4).
8. Remove the rubber (5) and replace it.
9. Proceed in reverse to replace the rubber
ATTENTION: These operations must be carried out using gloves to protect
against contact with dangerous solutions
5. REPLACING THE FRONT SQUEEGEE RUBBER
If the squeegee rear rubber is worn and does not dry well, it is possible to change the drying edge using
one of the 4 edges of the rubber.
This operation can be done both with a squeegee fitted or removed as follows:
1. Check that the main switch of the machine is set to “Off – 0”
2. Verify that the battery connector is disconnected from the machine connector
3. Check that the parking brake is correctly engaged.
4. Remove the suction hose from the squeegee nozzle (1)
5. remove the squeegee, pushing the plate (2) to the left in order to release the squeegee small column
from its seat
6. pull the squeegee to the right until the left-hand small column is released from its seat
7. Turn the wing nuts (5) in the horizontal position.
8. Remove the front rubber-pressing blades (6).
9. Remove the rubber (7) and replace it.
10. adjust the height of the squeegee depending on the rubber (see “ADJUSTING THE HEIGHT OF THE
SQUEEGEE SUPPORT”)
ATTENTION: These operations must be carried out using gloves to protect
against contact with dangerous solutions
5
4
3
1
2
1
2
5
4
3
