19

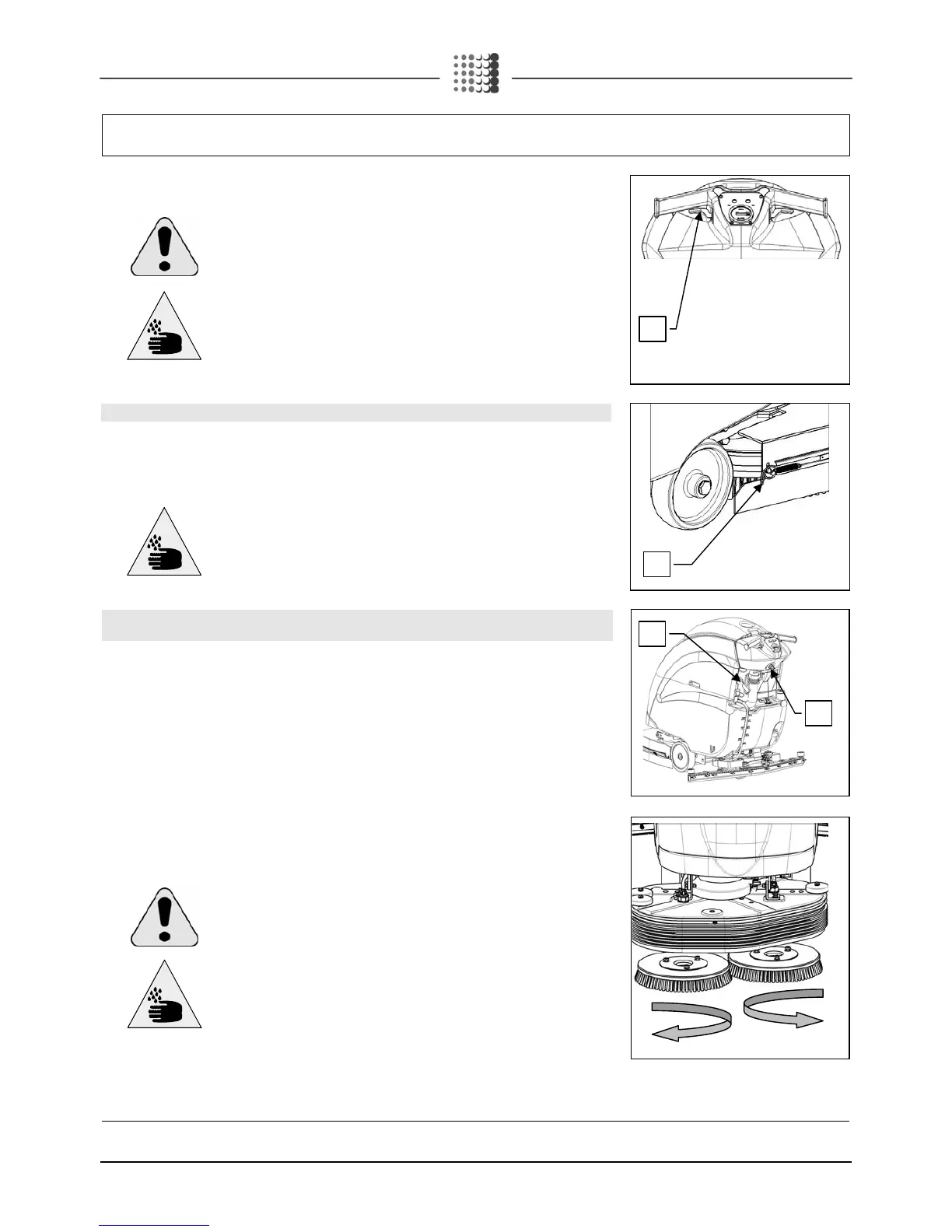

MACHINE PREPARATION
5. Using the "man present" lever (2), the brush is automatically hooked up.
ATTENTION: during this operation, check there are no people or objects near the
brush.
ATTENTION: Check the brush is correctly inserted. If this is not the case, the
machine could move in an irregular, sudden manner.
ATTENTION: you are advised to always wear protective gloves, to avoid the risk
of serious injury to your hands
24. ASSEMBLY OF SINGLE DISC BRUSH HEAD SPLASH GUARD RUBBER
For packaging reasons, the splash guard rubbers are supplied disassembled from the machine. Remove
the hook (1) of the spring from the connector screw on the right side of the brush head, wrap the rubber all
around the brush head and position it so that it is symmetrical to the brush. Replace the previously
removed strip securing the hook (1) of the spring in the screw connector.
ATTENTION: you are advised to always wear protective gloves in order to avoid
the risk of serious injury to your hands
25.
ASSEMBLING THE BRUSH (BRUSH HEADS WITH DOUBLE DISC BRUSH)
Proceed as follows to assemble the brushes:
1. Use the side parking brake lever (1) to stop the machine.
2. Raise the brush head by means of the appropriate pedal
3. Check that the key is in the "0" position (2)
4. With the brush head up, place the brushes into the plate housing beneath the brush head, turning the
brushes until the three pins enter the niches in the plate itself; turn until the pin is pushed towards the
coupling spring and is locked into place.
The figure shows the rotation direction for coupling the right-hand brush; for the left-hand one, rotate in the
opposite direction.
ATTENTION: during this operation, check there are no people or objects near the
brush.
ATTENTION: Make sure the brushes are correctly connected. If this is not the
case, the machine could move in an irregular, sudden manner.
ATTENTION: you are advised to always wear protective gloves, to avoid the risk
of serious injury to your hands
2
1
1
2
