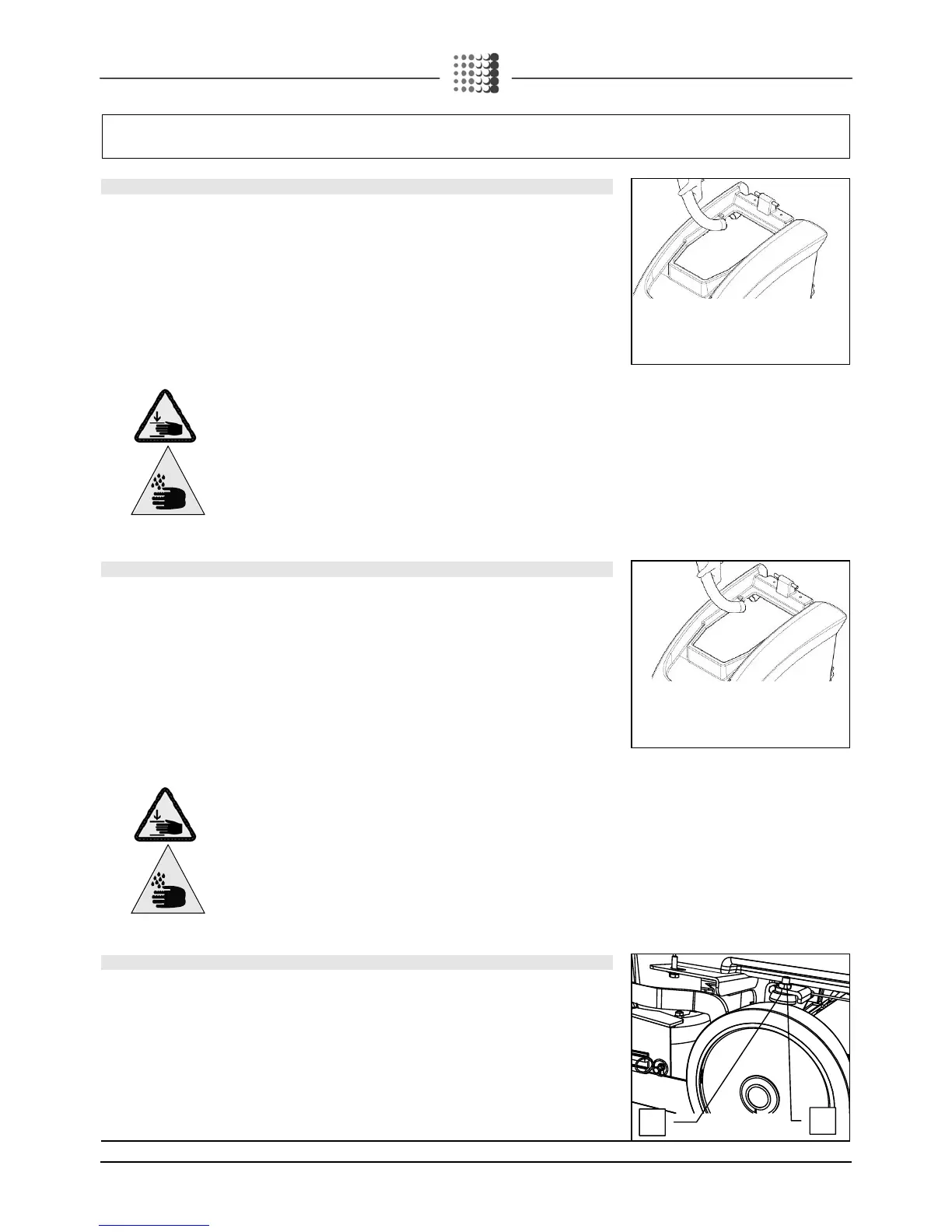

WEEKLY MAINTENANCE
1. CLEANING THE SQUEEGEE TUBE
Every week, or whenever suction seems to be unsatisfactory, check the squeegee tube is not obstructed.
To clean it, proceed as follows:
1. Remove the tube from the sleeve of the squeegee
2. Remove the intake pipe filter from its housing (see Daily maintenance).
3. remove the other end from the recovery tank
4. Wash the inside of the tube with a water jet introduced from the side where the pipe is fixed to the tank
5. reassemble the tube
ATTENTION: Adopt safety measures to prevent damage to the limbs.
WARNING: this operation must be carried out wearing gloves to protect against
contact with dangerous solutions.
2. CLEANING THE SQUEEGEE TUBE (SMX 60S MODELS)
Every week, or whenever suction seems to be unsatisfactory, check the squeegee tube is not obstructed.
To clean it, proceed as follows:
1. Remove the tube from the sleeve of the squeegee
2. Remove the intake pipe filter from its housing (see Daily maintenance).
3. remove the other end from the recovery tank
4. Lift the brush head
5. Remove the hopper
6. Wash the inside of the tube with a water jet introduced from the side where the pipe is fixed to the tank
7. re-assemble the tube
ATTENTION: Adopt safety measures to prevent damage to the limbs.
WARNING: this operation must be carried out wearing gloves to protect against
contact with dangerous solutions.
3. CHECKING THE BRAKE
Every week, check the distance between the work brake pads and the wheels. If necessary, adjust them
by means of the nuts, so they are at a distance of 3mm when homed.
