EN
92

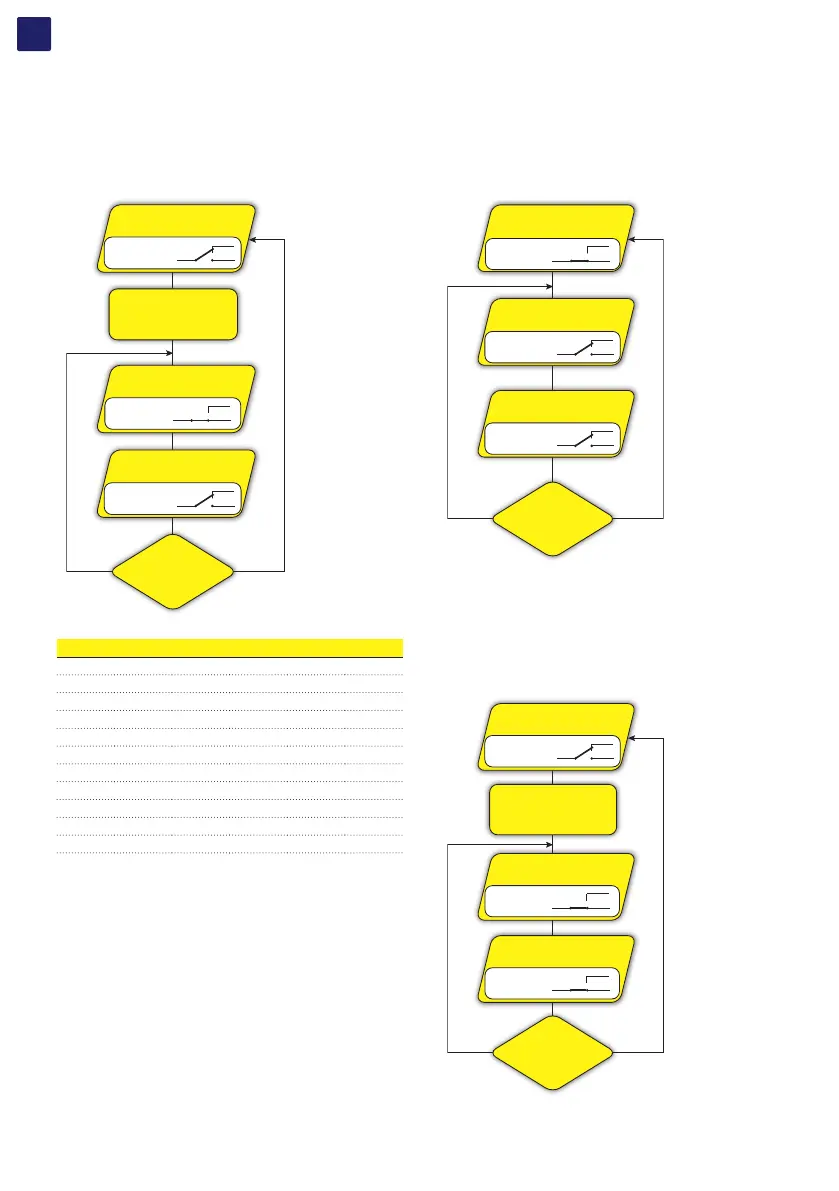

• Alarm Configurable - no-latch
The relay is activated (status: switched) whenever an error (code
Exxx) or a warning (code Wxxx) is among those selected from the
list in the dedicated submenu Alarm Config. The contact returns
to its resting position when the alarm signal ends, i.e. before the
inverter checks the grid after the alarm state. This is because grid
control state is not an alarm state but a state of normal operation.
INVERTER RUN
SELECTED
ERROR/WARNING
OCCURENCY
ERROR MESSAGE
t=15s
GRID RECONNECTION
t=based on Country Standard
ERROR/WARNING
STILL
PRESENT
Yes No
N.C.
N.O.
N.C.
N.O.
Relay State: Idle
N.C.
N.O.
Relay State: Switched
Relay State:
Idle
Selectable alarms for which the relay is activated
E001 E002 E003 E004 E005 E006
E007 E009 E010 E011 E012 E013
E014 E015 E016 E017 E018 E019
E020 E021 E022 E023 E024 E025
E026 E027 E028 E029 E030 E031
E032 E033 E034 E035 E036 E037
E046 E050 E053 E054 E055 E056
E057 E058 E077 E078 E081 E084
E089 W001 W002 W003 W004 W005
W006 W007 W009 W011 W015 W046
W047 W048 W051 W058 W059
For the configurable relay operating mode “Alarm Conf.”, the
following considerations are valid:
• If the alarm condition is persistent, the alarm contact cyclically
switches from its resting state to its activated state.
• In the presence of W002 signalling (Input UV – input voltage
below the limit of operation), the alarm contact switches to then
reset itself at the end of the alarm signal. This means that during
the reduced input voltage (display message “Waiting Sun”) the
alarm contact remains in its resting position.
• In the presence of W003, W004, W005, W006, W007 signalling,
the alarm contact switches and then reset itself at the end of the
alarm signal. This means that during the absence of grid voltage
(display message “Missing Grid”) the alarm contact remains in
its resting position.
• Crepuscular
The relay is activated (status: switched) as soon as the inverter
input voltage exceeds the activation voltage set.
The relay is in its rest position when the input voltage drops below
70% of the activation voltage set.
This mode is useful for disconnecting any output transformers
that could have unnecessary consumption during the night.
Vin > Vstart
Vin < Vstart
GRID RECONNECTION
t=based on Country Standard
Vin
IS STILL LESS THAN
Vstart
Yes No
N.C.
N.O.
N.C.
N.O.
N.C.
N.O.
Relay State: Idle
Relay State: Switched
Relay State:
Idle
• Alarm ALL - latch
The relay is activated (status: switched) whenever an error (code
Exxx) or a warning (code Wxxx) is present (see the table below).
The contact returns to its resting position when the inverter
returns to its normal operating state and reconnects to the grid.
INVERTER RUN
ERROR OCCURENCY
ERROR MESSAGE
t=15s
GRID RECONNECTION
t=based on Country Standard
ERROR
STILL
PRESENT
Yes No
N.C.
N.O.
N.C.
N.O.
Relay State: Idle
Relay State: Switched
N.C.
N.O.
Relay State: Switched
