4. Lifting and transport
4.1 Transport and handling
Transport of the equipment, especially by road, must be carried out with means for protecting the components (in particular, the electronic
components) from violent shocks, humidity, vibration, etc.
During handling, do not make any sudden or fast movements that could create dangerous swinging.
4.2 Equipment weight
Device
Weight
(kg/lb)
Lifting
points
Holes for handles (optional) or
Eyebolts UNI2947 (not supplied)
Power module (01) 70 kg / 154 lbs 4 M8. Kit of handles (04) (to be ordered)
Wiring box (02) ~55 kg / 121 lbs 4 M8. Kit of handles (04) (to be ordered)
4.3 Storage
ATTENTION – A DO NOT store the equipment (also valid for spare parts units) in a location exposed to severe weather conditions
(e.g. rain, snow or a high level of humidity). Always comply with storage temperature indicated in “Technical data” paragraph in
this manual.

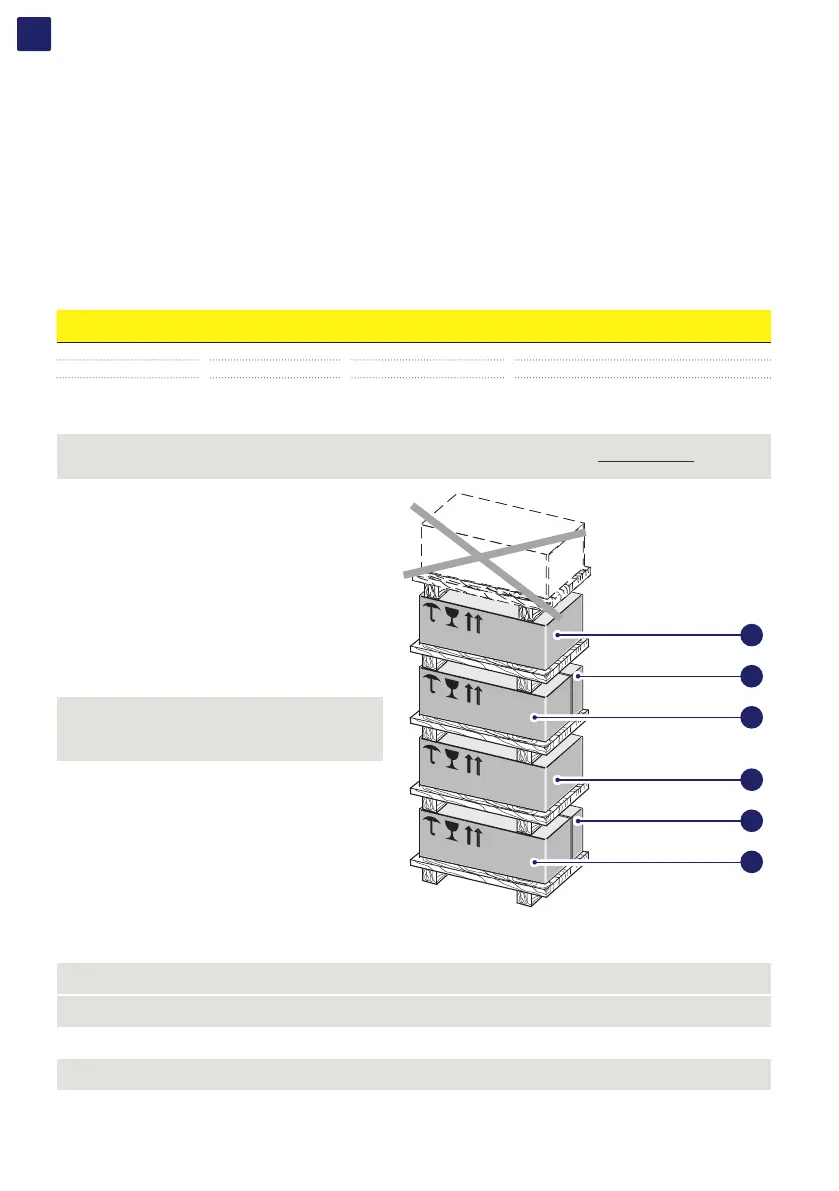

If the package with the power module part is stored correctly,
it can withstand a maximum load of 2 stacked units (power
module+wiring box+bracket).
ATTENTION – A DO NOT stack the package with
equipment or products other than those indicated.
ATTENTION – A Accessory components that are in
separate packages can be piled separately.
02
03
01
02
03
01
4.3.1 Unpacking and checking
ATTENTION – A Packaging elements (cardboard, cellophane, staples, adhesive tape, straps, etc.) may cause cuts and/or injuries if
not handled with care. They should be removed with the proper equipment.
NOTE – D The components of the packaging must be disposed on in accordance with the regulations in force in the country of
installation.
When you open an equipment package, check that the equipment is undamaged and make sure all the components are present.
NOTE – D If any defects or damage are found, stop unpacking and consult the carrier, and also promptly inform Fimer customer
support.
