Alarms for which the relay is activated
E001 E002 E003 E004 E005 E006
E007 E009 E010 E011 E012 E013
E014 E015 E016 E017 E018 E019
E020 E021 E022 E023 E024 E025
E026 E027 E028 E029 E030 E031
E032 E033 E034 E035 E036 E037
E046 E050 E053 E054 E055 E056
E057 E058 E077 E078 E081 E084
E089 W003 W004 W005 W006 W007
If the alarm condition is persistent, the relay will remain activated
(status:switched)

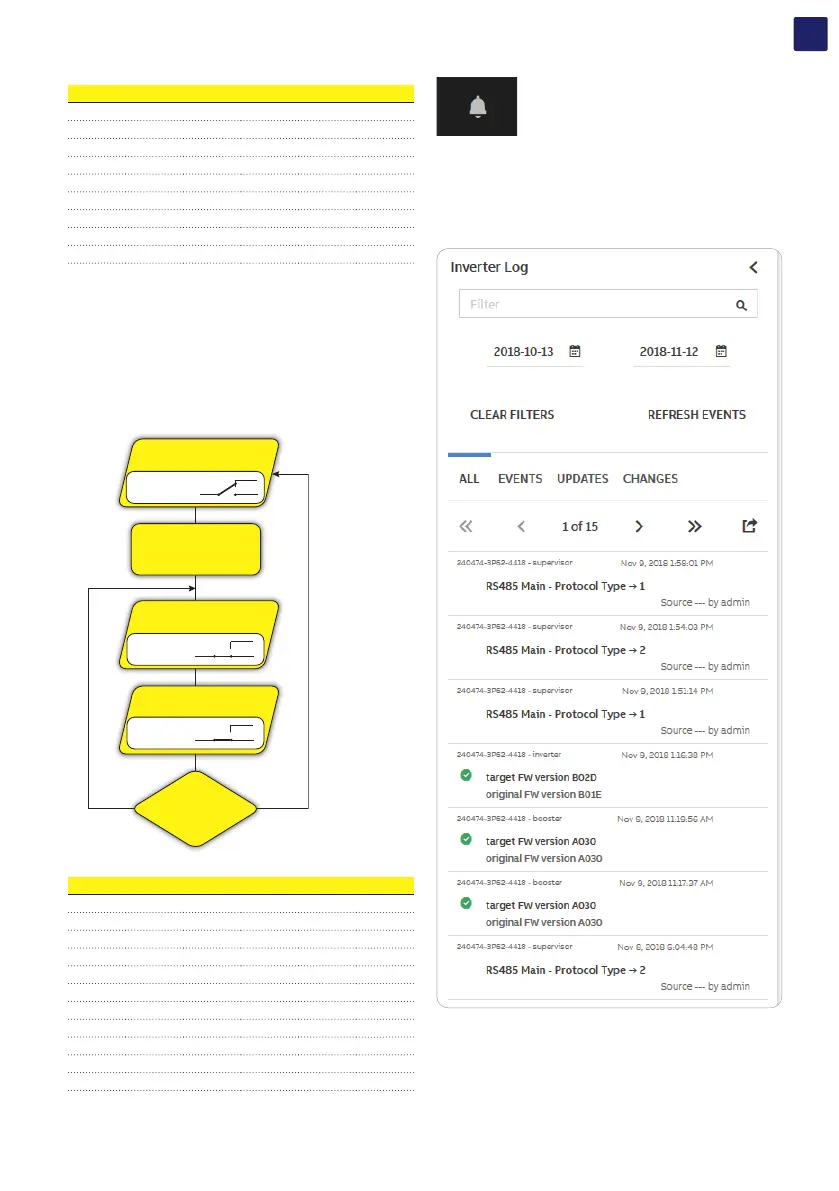

• Alarm configurable - latch
The relay is activated (status: switched) whenever an error (code
Exxx) or a warning (code Wxxx) is among those selected from the
list in the dedicated submenu Alarm Config (see the table below).
The contact returns to its resting position when the inverter
returns to its normal operating state and reconnects to the grid.
INVERTER RUN
SELECTED
ERROR/WARNING
OCCURENCY
ERROR MESSAGE
t=15s
GRID RECONNECTION
t=based on Country Standard
ERROR/WARNING
STILL
PRESENT
Yes No
N.C.
N.O.
N.C.
N.O.
Relay State: Idle
Relay State: Switched
N.C.
N.O.
Relay State: Switched
Selectable alarms for which the relay is activated
E001 E002 E003 E004 E005 E006
E007 E009 E010 E011 E012 E013
E014 E015 E016 E017 E018 E019
E020 E021 E022 E023 E024 E025
E026 E027 E028 E029 E030 E031
E032 E033 E034 E035 E036 E037
E046 E050 E053 E054 E055 E056
E057 E058 E077 E078 E081 E084
E089 W001 W002 W003 W004 W005
W006 W007 W009 W011 W015 W046
W047 W048 W051 W058 W059
If the alarm condition is persistent, the relay will remain activated
(status:switched).
7.5.3 INVERTER LOG menu
In the INVERTER LOG Section it’s possible to view the Alarm
and Warning events list that it can be custom filtered by type or by
entering a matching word.
Clicking on any event to view its details.
