7.5 Web User Interface menu structure

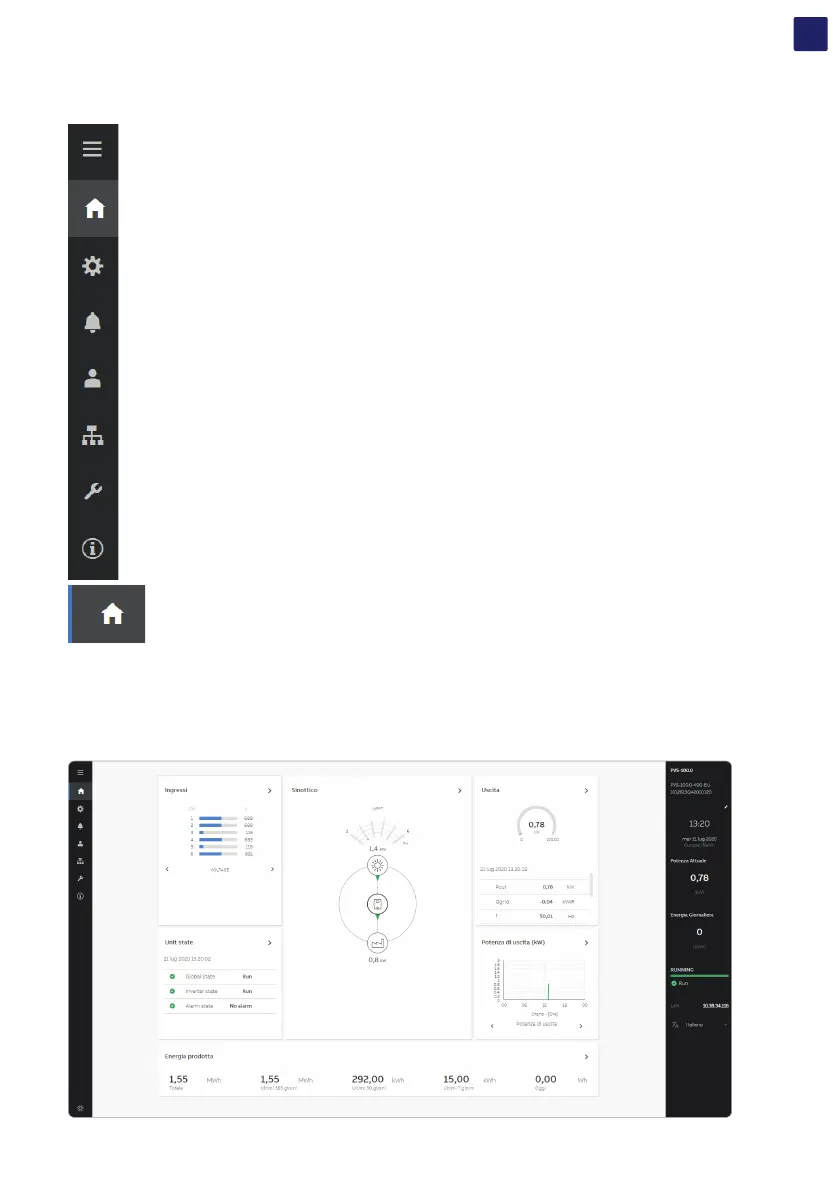

The following screenshots are related to a laptop visualization and may differ from smartphone or tablet visualization.
The Web User Interface is divided in sections, available on the left sidebar:
MAIN: Main section of Web User Interface dedicated to viewing the summary information related the status and the
production information of the inverter and photovoltaic plant.
SETTINGS: Section dedicated to AC and DC line parameters configurations.
INVERTER LOG: Section dedicated to viewing Alarms and Warnings event log.
USER: Section dedicated to User management.
CONNECTIVITY: Section dedicated to inverter communication settings and configurations.
SERVICE TOOLS: Section dedicated to main service tools configurations.
INFORMATION: Section dedicated for general information about the Web User Interface.
7.5.1 MAIN menu
In the MAIN section it’s possible to access the following sub-menus:
DASHBOARD
STATUS SUMMARY
7.5.1.1 DASHBOARD
In the Dashboard sub-menu you can view the main information related the status the production data and alarm/warning active events of
the inverter and photovoltaic plant.
