4.4 List of supplied components

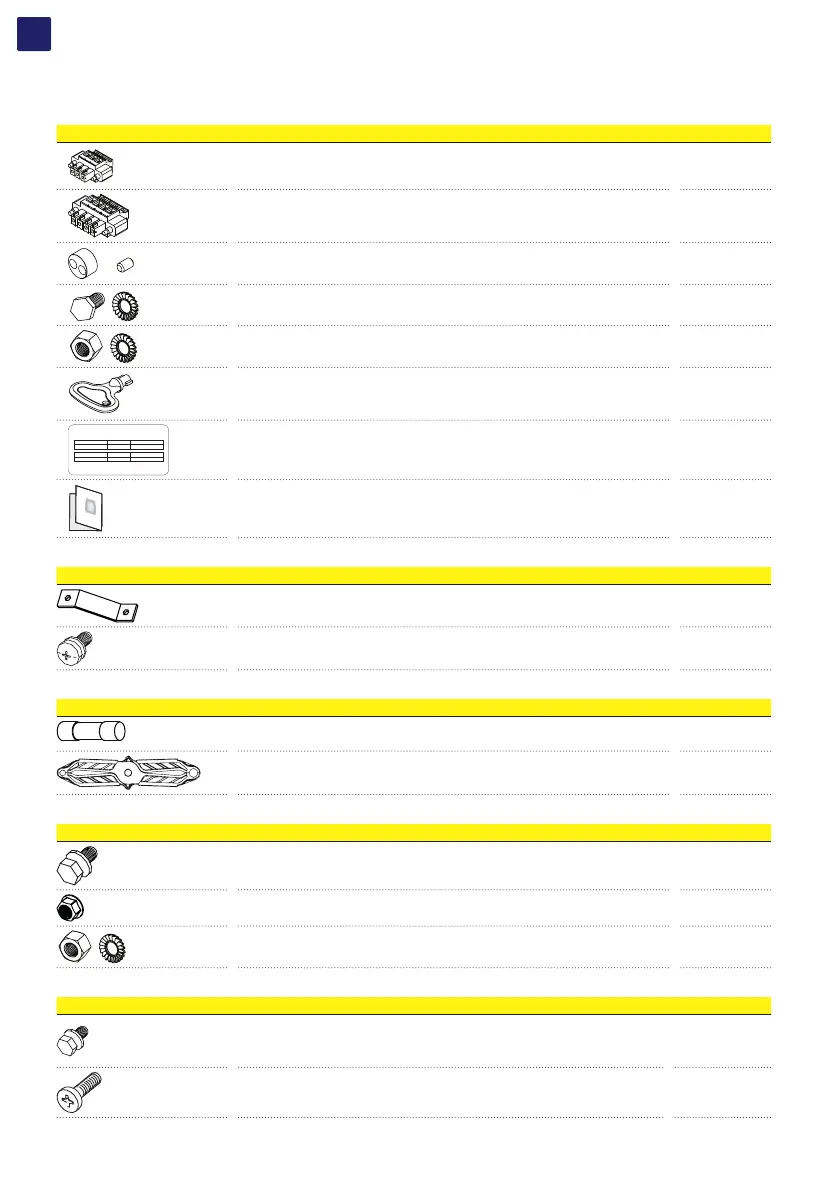

The table below shown the available component in the wiring box (02) package (common for all models):
Component Quantity
ALARM and AUX relay (33) and RS485 (38) connectors (pre-installed on
communication and control board (28))
4
Remote ON/OFF (37) connector (pre-installed on communication and control
board (28))
1
Two-hole gasket (6mm Ø) for PG21 signal cable glands (12) and cap 2 + 2
M8x16 hex bolt + M8 serrated lock washers to clamp the earth cable on the
protective earth point (ext.) (10)
1 + 2
M10 hex nut + M10 serrated lock washers to clamp the earth cable on the
protective earth point (int.) (25)
1 + 2
Key tool for front cover quarter cam-lock (05) 1
WARNING!
NRS 097-2-1:2017 (South Africa)
It is not intended to connect this Inverter to a network with an higher
Network Impedance.
Reference Impedance
Fault Level
0.156
1475
Total [Ω]
I_SC [ A ]
3.9
1018
X/R ratio
S_SC [kVA] (three phase)
South africa network standard label 1
Technical documentation 1
The table below shown the available components for wiring box (02) Standard and -S2 version only:
Component Quantity
MPPT input parallel bar 1
M6 screws with washer to clamp the MPPT input parallel bars 2
The table below shown the available components for wiring box (02) -SX, -SY, -SX2 and SY2 version only:
Component Quantity
Positive string fuses (gPV - 1000Vdc - 20A) 24
Fuse puller (secure touch) 1
The table below shown the available component in the power module (01) package:
Component Quantity
M6x20 junction screws (32) between wiring box and power module 2
M6 self-locking nut to clamp internal AC cables on AC interconnection board (58) 3
M5 hex nut + M5 serrated lock washers to clamp the internal earth cable on PE
interconnection point (64)
1 + 2
The table below shown the available component in the bracket (03) package:
Component Quantity
M8 bolts with washers for mechanically securing the half-brackets 2
M6 screws for mechanically securing the wiring box to the bracket 2
