7.4 Connection to Web User Interface
The inverter is equipped with an advanced integrated Web
User Interface that allow a full access to all configuration and
comissioning parameters from any electronic device (laptop, tablet
and smartphone).
7.4.1 Access to the Web User Interface
To access to the Web User Interface is required to connect a
device equipped with wireless connection (such as tablet, laptop
or smartphone).
Depending on the connection method choosen during the inverter
commissioning phase (“Station Mode” or “AP Mode”) it’s required
to follow one of the two procedures described below:
Connection to the inverter in “Station Mode”
• Enable the wireless connection on the device (tablet, smartphone
or laptop) and connect it to the same wireless network to which
the inverter is connected.
• Open an internet browser (recommended browser: Chrome
versions from v.55, Firefox versions from v.50) and enter the links
(corresponding to the IP Address assigned by the router to the
inverter, or the “Host Name”) provided during the commissioning
phase to access the login page.
NOTE – D In order to use the “Host Name” as an alternative to
the dynamic IP address, the Wi-Fi router to which the inverter
is connected (when operating in “Station Mode”) must
provide the Domain Name System (DNS) service (contact
the network administrator for further information regarding
the presence or absence of the DNS service in the Wi-Fi
router or how to enable it). In this way, even if the IP address
assigned to the inverter should change over time (dynamic
IP), it will always be possible to use the same “Host Name”
which will remain unchanged over time.
NOTE – D The IP address assigned may vary for reasons
connected to the wireless router setup (for example, a very
brief DHCP lease time). If verification of the address is
required, it is usually possible to obtain the client list (and
the corresponding IP addresses) from the wireless router
administration panel.
NOTE – D If the “Host Name” was
lost, it could be obtained writing this url:
http://ABB-XX-XX-XX-XX-XX-XX.local
replacing the “X” with the hex digits of the MAC address of the
inverter (it can be found on the “Communication Identification
label” placed on the side of the inverter or applied during the
commissioning phase to the plant documentation).
Connection to the inverter in “AP Mode”
Enable the wireless connection on the device (tablet, smartphone
or laptop) and connect it to the Access Point created by the inverter
system: the name of the wireless network created by the inverter
that the connection should be established with, will be:
ABB-XX-XX-XX-XX-XX-XX
where “X” is a hex digit of the MAC address (MAC address can be
found on the “Communication Identification label” placed on the
side of the inverter or applied during the commissioning phase to
the plant documentation).
• When required digit the PRODUCT KEY (printed on the
“Communication Identification label” and applied during the
commissioning phase to the plant documentation) as access
point password.
NOTE – D It’s required to digit also the dash “-” characters of
the Product Key in the password field.
NOTE – D In case of need, product key can be recovered by
Aurora Vision Cloud or by calling Fimer technical support.
• Open an internet browser (reccomended browser: Chrome
versions from v.55, Firefox versions from v.50) and enter the pre-
set IP address 192.168.117.1 to access the login page.

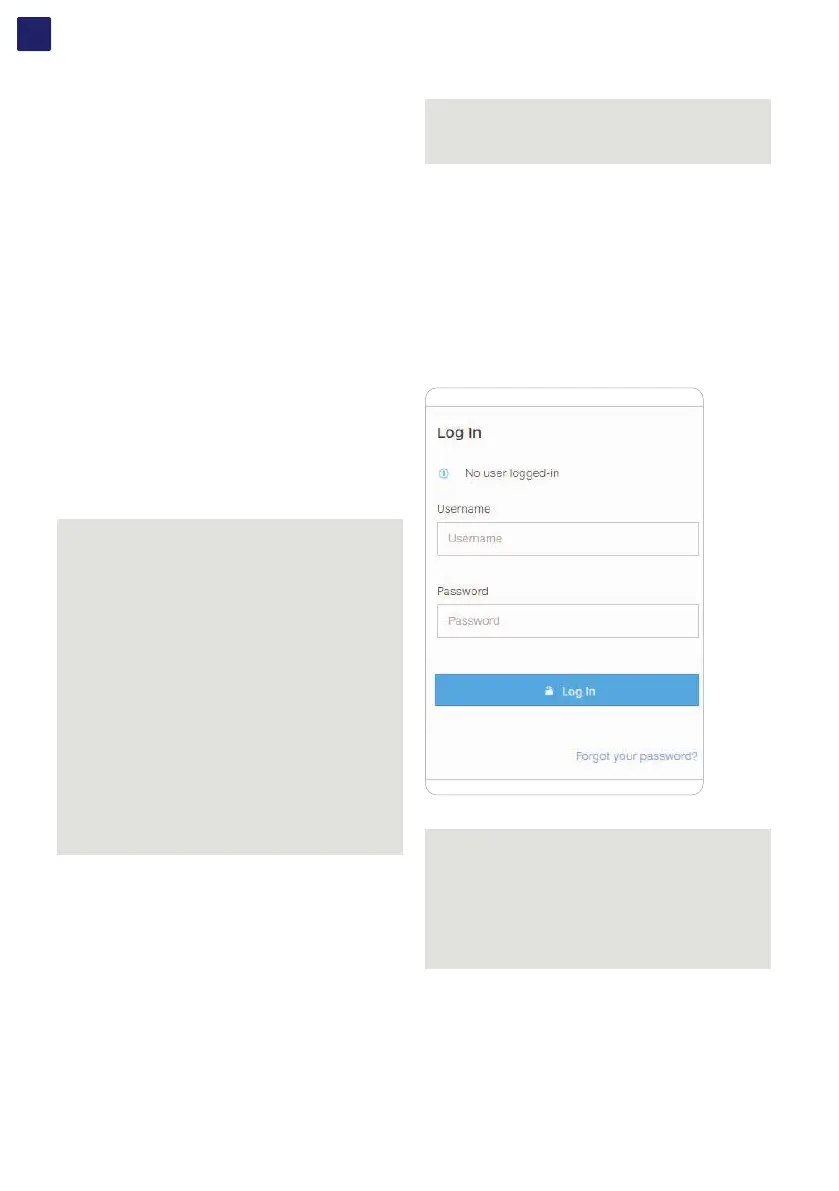

7.4.2 Web UI - Login page
• After you have connected the device to the inverter and you
access to the login page, login with the username and password
created during the commissioning phase.
NOTE – D User and password are CASE SENSITIVE.
NOTE – D If the Password is lost click on “Forgot your
password?” to obtain the access to the Web User Interface
(and it will be possible to change the password) by entering
the PRODUCT KEY (printed on the “Communication
Identification label” and applied during the commissioning
phase to the plant documentation).
NOTE – D The language of the wizard could be changed by
clicking on the upper status bar.
